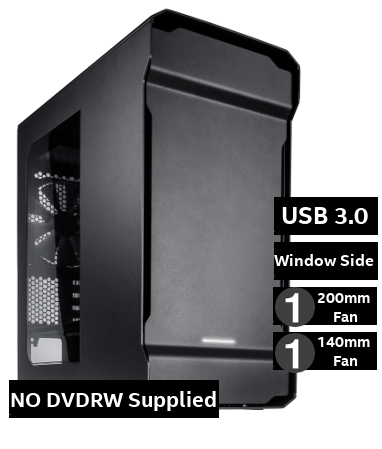

PHANTEKS Enthoo Evolv - Mid
| Motherboard Support | Micro & Standard ATX |
| External 5.25" Drive Bays | 0 |
| External 3.5" Drive Bays | 0 |
| Internal 3.5" | 8 (5 Included) |
| Internal 2.5" | 3 (2 Included) |
| Rear Cooling | 1 x 140mm (Included) |
| Front Cooling | 2 x 140mm (Included) |
| Top/Bottom Cooling | Top 3x120mm or 2x140mm (Optional) |
**NO DVDRW SUPPLIED WITH THIS CASE**
The EVOLV ATX, a premium all-aluminum mid-tower chassis based on the original EVOLV design. Like the Enthoo EVOLV, the EVOLV ATX has a minimalistic design with an all-aluminum exterior but without sacrificing on features. The EVOLV ATX features Phanteks’ quick release side panels, innovative top radiator bracket, and the new HDD mounting system. Unleash unlimited possibilities with the Enthoo EVOLV ATX.
Features:
Enthoo Evolv ATX includes 2 x 140mm fans in front and 1 x 140mm fan in the rear. Ability to upgrade to additional fans is possible. All fans included are Phanteks’ new redesigned and better performing SP series fans.
Appearance:
-Aluminum body (3mm thick)
Clean interior - Hidden PSU and HDD’s
Power LED - Changeable to 4 different colors
Cooling:
- Optimal airflow - Direct airflow to CPU / GPU
- Comes with 3 Phanteks premium fans
2x PH-F140SP in front (140mm)
1x PH-F140SP in rear (140mm)
-Phanteks’ PWM hub included
- 3 different installation areas for radiators
(120mm or 140mm form factor).
- Reservoir mounting locations
- Pump Bracket with vibration dampers
Functionality:
- 2x Drop-N-Lock SSD brackets included
- 3x Modular HDD Brackets
- Removable HDD cage for installation of long PSU’s (>180mm) / waterpump
- Equiped with removable dustfilters (1x front, 1x bottom, top integrated)
- Clean cable management using Phanteks' preinstalled Hoop-N-Loop cable ties
- Quick release panels for easy acces to fans and dustfilters
- Toolless sidepanel with swing door
|
Case Specifications
|
|||
|
Dimension
|
235 mm x 495 mm x 510 mm (W x H x D)
9.25 in x 19.5 in x 20.1 in |
||
|
Form Factor
|
Midtower Chassis
|
||
|
Material(s)
|
Aluminum (3mm) Exterior, Steel Chassis
|
||
|
Motherboard Support
|
E-ATX *(up to 264mm wide), ATX, Micro ATX, Mini ITX
|
||
|
Front I/O
|
2x USB 3.0, Mic, Headphone, Reset
|
||
|
Side Window
|
Yes
|
||
| Expansion & Drive Bays | |||
|
Expansion slots
|
7
|
||
|
Internal 3.5"
|
8x (5x included)
|
||
|
Internal 2.5" (dedicated)
|
3x (2x included)
|
||
|
Cooling
|
120mm fan
|
140mm fan
|
|
|
Front
|
3x
|
2x (included) | |
|
Top
|
3x
|
2x | |
|
Rear
|
1x
|
1x (included) | |
|
Liquid Cooling
|
120mm radiator
|
140mm radiator
|
|
|
Front
|
Up to 360
|
Up to 280 | |
|
Top
|
Up to 360
|
Up to 280 | |
|
Rear
|
120
|
140 | |
|
Clearance
|
|||
|
Graphic card
|
420 mm (16.54 in) No HDD brackets
300 mm (11.8 in) HDD brackets installed |
||
| PSU |
318 mm (12.5 in)
|
||
|
CPU cooler
|
194 mm (7.6 in)
|
||
|
Cable management
|
35 mm (1.38 in)
|
||
|
Memory clearance
(motherboard - fan) |
120mm: 68 mm (2.68 in)
140mm: 48 mm (1.89 in) |
||
|
Packaging Information
|
PH-ES515E
|
||
|
Package Dimension
|
324 mm x 590 mm x 577 mm(WxHxD)
|
||
|
Net Weight
|
10,2 kg (22.0 lbs)
|
||
|
Gross Weight
|
11,9 kg (24.3 lbs)
|
||
