£150.00



Current Stock Level



T/TAKE TAKE Core V71 - Tempered Glass





Motherboard Support Micro & Standard ATX
External 5.25" Drive Bays 2
External 3.5" Drive Bays 0
Internal 3.5" 8
Internal 2.5" 8
Rear Cooling 1 x 140mm
Front Cooling 2 x 200mm
Top/Bottom Cooling 1 x 200mm top

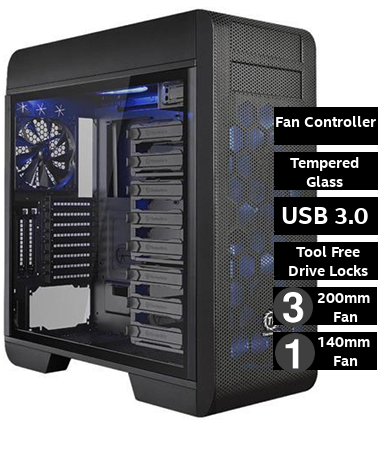

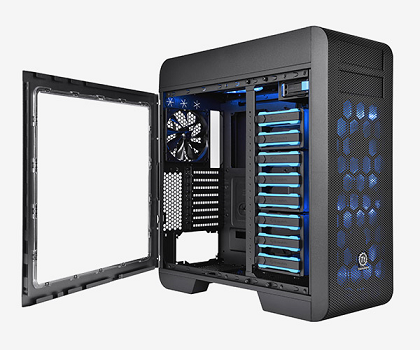

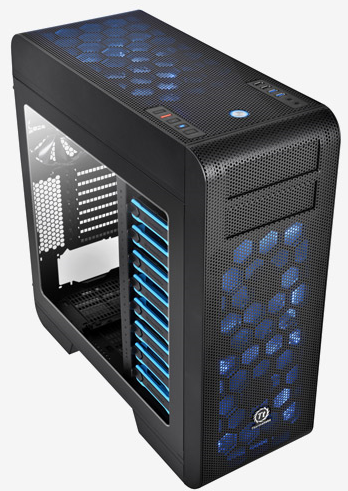

Thermaltake Core V71 Tempered Glass Edition

The Core V71 Tempered Glass Edition full tower chassis features a durable 4mm thick tempered glass window, riser GPU support bracket with optional PCI-e riser cable, three preinstalled 200mm LED fans, and the outstanding cooling performance. With its unprecedented space for high-end configurations and liquid cooling expansion, the Core V71 TG supports the latest PC hardware, and all high-end GPU cards. The Core V71 TG is an ideal choice for those who are looking for a space-saving chassis with excellent expandability and superior ventilation!


* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.

P/N CA-1B6-00F1WN-04
Case Type Full Tower
Dimension (H x W x D) 583 x 230 x 560 mm
(23 x 9.1 x 22 inch)
Net Weight 14.7 kg
Side Panel Tempered Glass
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA) x 2
Rear (exhaust) :
140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA)
Top (exhaust) :
200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA)
Drive Bays -Accessible
2 x 5.25’’
-Hidden
8 x 3.5’’ or 8 x 2.5’’
Expansion Slots 8
Motherboards 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX)
I/O Port USB 3.0 x 2,USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/2”、3/8”、1/4” water tube
Fan Support Front:
1 x 120mm or 2 x 120mm or 3 x 120mm
1 x 140mm or 2 x 140mm
1 x 200mm or 2 x 200mm
Top:
1 x 120mm or 2 x 120mm or 3 x 120mm
1 x 140mm or 2 x 140mm
1 x 200mm or 2 x 200mm
Rear:
1 x 120mm or 1 x 140mm
Bottom:
1 x 120mm or 2 x 120mm
Radiator Support Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Top:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Rear:
1 x 120mm
Bottom:
1 x 120mm or 1 x 240mm
Other CPU cooler height limitation: 185mm
VGA length limitation:
310mm(with HDD rack)
480mm(without HDD rack)
PSU length limitation:
220mm (With Bottom Fan)
