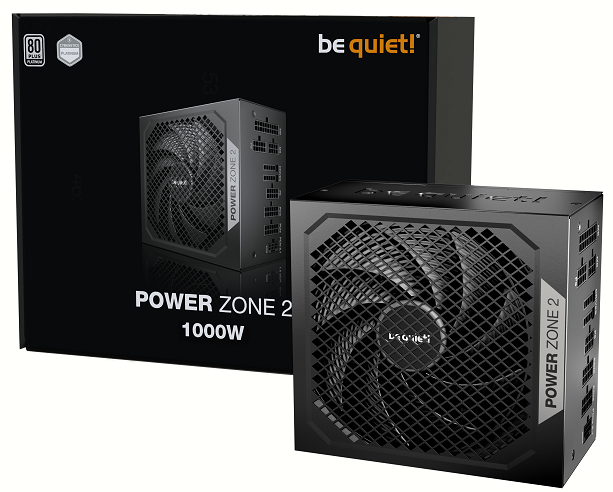

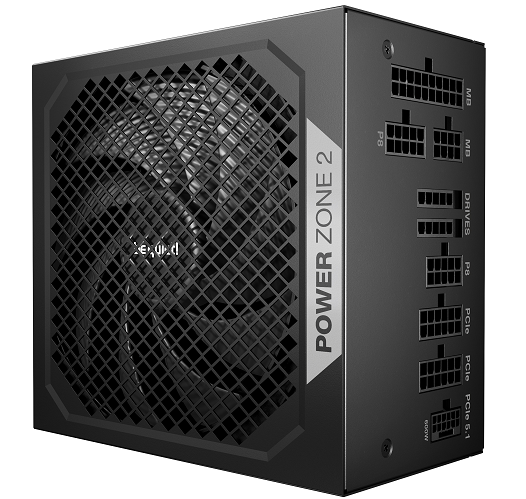

1000W PSU - BE QUIET! Power Zone 2 Platinum/Modular/ATX3.1/PCIE5.1 (High Gaming)
| Power Rating | 1000W |
| Cooling | 140mm Fan |
| SATA Connectors | 7 |
| Molex Connectors | 1 |
| PCI-E Power | 1x12 - 3x6+2+1x6Pin |
| CE Approved | Yes |
| Voltage Range | 100 - 240V |
General data
| Model | Pure Power 12 M 1000W |
| Continuous power (W) | 1000 |
| Peak power (W) | 1050 |
| Form factor | Version 3.0 |
| Form factor EPS 12V | Version 2.92 |
| Topology | LLC + SR + DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 12 / 6 |
| Power factor at 100% load | >0.98 |
| Modern standby | ✓ |
| Power consumption in standby (W) | <0.1 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
Efficiency
| 80 PLUS certification | Gold |
| Efficiency (%) at 230V, 2% load | 75.9 |
| Efficiency (%) at 230V, 10% load | 88.4 |
| Efficiency (%) at 230V, 20% load | 92.3 |
| Efficiency (%) at 230V, 50% load | 93.1 |
| Efficiency (%) at 230V, 100% load | 90.8 |
Fan and cooling technology
| Cybenetics Noise Rating | - |
| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 2000 |
| dB(A) at 10% load | 9.3 |
| dB(A) at 20% load | 9.3 |
| dB(A) at 50% load | 9.6 |
| dB(A) at 100% load | 31.7 |
Cables and connectors
| Modular cables | ✓ |
| Sleeved cables | P24, 12V-2x6 |
| Flat cables | P4+4, P8, PCIe, drives |
| Maximum cable length (cm) | 95 |
| Cable length to motherboard (cm) | 55 |
| No. of cables | 8 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cables | 1 |
