£120.00



Current Stock Level

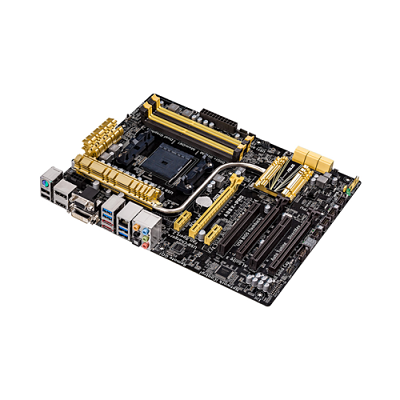

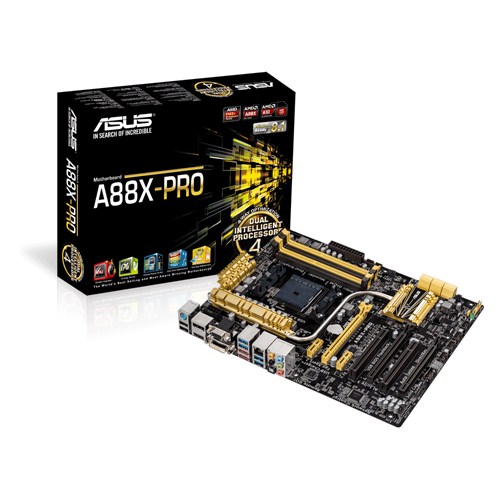

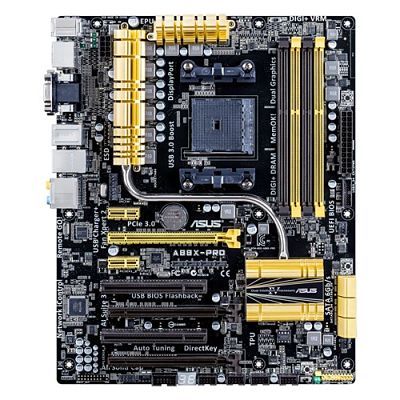

ASUS A88X-PRO FM2+




Manufacturer Asus
Model A88X-Pro
Socket Type & Form FM2+ / ATX
Chipset AMD A88X
SATA Ports 6 x 6Gb/s
USB Ports 4 x USB3 & 2 x USB2
Graphics Connectors 1xDVI, 1xHDMI, 1xD-Sub, 1xDP
RAM Slots 4 x DIMM, MAX 64GB DDR3



A88X motherboard with FM2+ Socket offers perfect one-stop system optimization and boosts integrated graphics on all APUs

  • Dual Intelligent Processors 4 with 4-Way Optimization
  • 4-Way Optimization - One Click and Done! Top-up Performance, Efficiency, Digital Power, and System Cooling
  • GPU Boost - Unlock integrated graphics performance for up to 30% boost
  • 5X PROTECTION - All-round protection provides the best quality, reliability, and durability
  • New UEFI BIOS – Full-scale Performance Tuning with Intuitive BIOS Interface



  • CPU
    AMD Socket FM2+ Athlon™/A- Series Processors
    Supports CPU up to 4 cores
    Supports AMD® Turbo Core 3.0 Technology
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD A88X (Bolton D4)
  • Memory
    4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Support AMD Memory Profile (AMP) memory
    * The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
  • Graphic
    Integrated AMD Radeon™ R/HD8000/HD7000 Series Graphics in the A-Series  APU
    Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz*1
    - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
    Maximum shared memory of 2048 MB
    AMD® Dual Graphics technology support *2
  • Multi-GPU Support
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *3
    1 x PCIe 2.0 x16 (x4 mode)
    2 x PCIe 2.0 x1
    2 x PCI
  • Storage
    AMD A88X FCH(Bolton D4) chipset :
    6 x SATA 6Gb/s port(s), yellow
    2 x eSATA 6Gb/s port(s), red
    Support Raid 0, 1, 5, 10, JBOD
  • LAN
    Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC1150 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • USB Ports
    AMD A88X FCH(Bolton D4) chipset :
    4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
    AMD A88X FCH(Bolton D4) chipset :
    10 x USB 2.0 port(s) (2 at back panel, black, 8 at mid-board)
    ASMedia® ASM1042 controller :
    2 x USB 3.0 port(s) (2 at back panel, blue)
  • Special Features
    ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
    - The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
    ASUS 5X Protection :
    - ASUS DIGI+ VRM - 6 + 2 Phase digital power design
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
    - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
    ASUS EPU :
    - EPU switch
    ASUS Exclusive Features :
    - GPU Boost
    - Remote GO!
    - USB BIOS Flashback
    - MemOK!
    - AI Suite 3
    - Ai Charger+
    - USB Charger+ *4
    - Anti-Surge
    - Low EMI Solution
    - ESD Guards
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - Network iControl
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-pipe solution
    - ASUS Fan Xpert 2
    ASUS EZ DIY :
    - DirectKey
    - Precision Tweaker 2
    - ASUS O.C. Tuner
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 2
    - ASUS USB BIOS Flashback
    - ASUS UEFI BIOS EZ Mode
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-Code
    - ASUS Q-Slot
    - ASUS Q-Connector
  • Operating System Support
    Windows® 8.1 , 32bit/64bit
    Windows® 8 , 32bit/64bit
    Windows® 7 , 32bit/64bit
    Windows® XP , 32bit

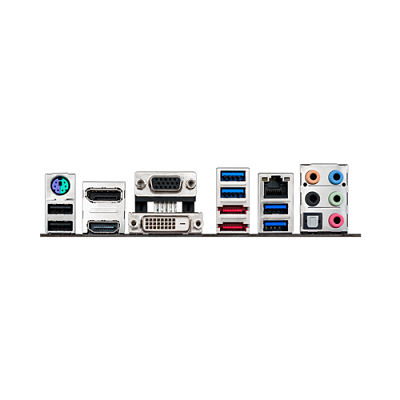

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI
    1 x D-Sub
    1 x DisplayPort
    1 x HDMI
    2 x eSATA 6Gb/s
    1 x LAN (RJ45) port(s)
    4 x USB 3.0
    2 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
    4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (4 -pin)
    4 x Chassis Fan connector(s) (4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s) (Q-Connector)
    1 x DirectKey Button(s)
    1 x DRCT header(s)
    1 x MemOK! button(s)
    1 x TPU switch(es)
    1 x EPU switch(es)
    1 x Clear CMOS jumper(s)
    1 x USB BIOS Flashback button(s)
  • Accessories
    User's manual
    ASUS Q-Shield
    4 x SATA 6Gb/s cable(s)
    1 x Q-connector(s) (2 in 1)
  • BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Support Disc
    Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version)
  • Form Factor
  • Note
    *1: *Only FM2+ APU can support up to 4096 x 2160 resolution display via HDMI port.
    *2: Refer to HYPERLINK "http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx"http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology.
    *3: Only FM2+ Processors can support PCIe3.0.
    *4 USB Charger+ is only supported in Windows®7 and later versions.
