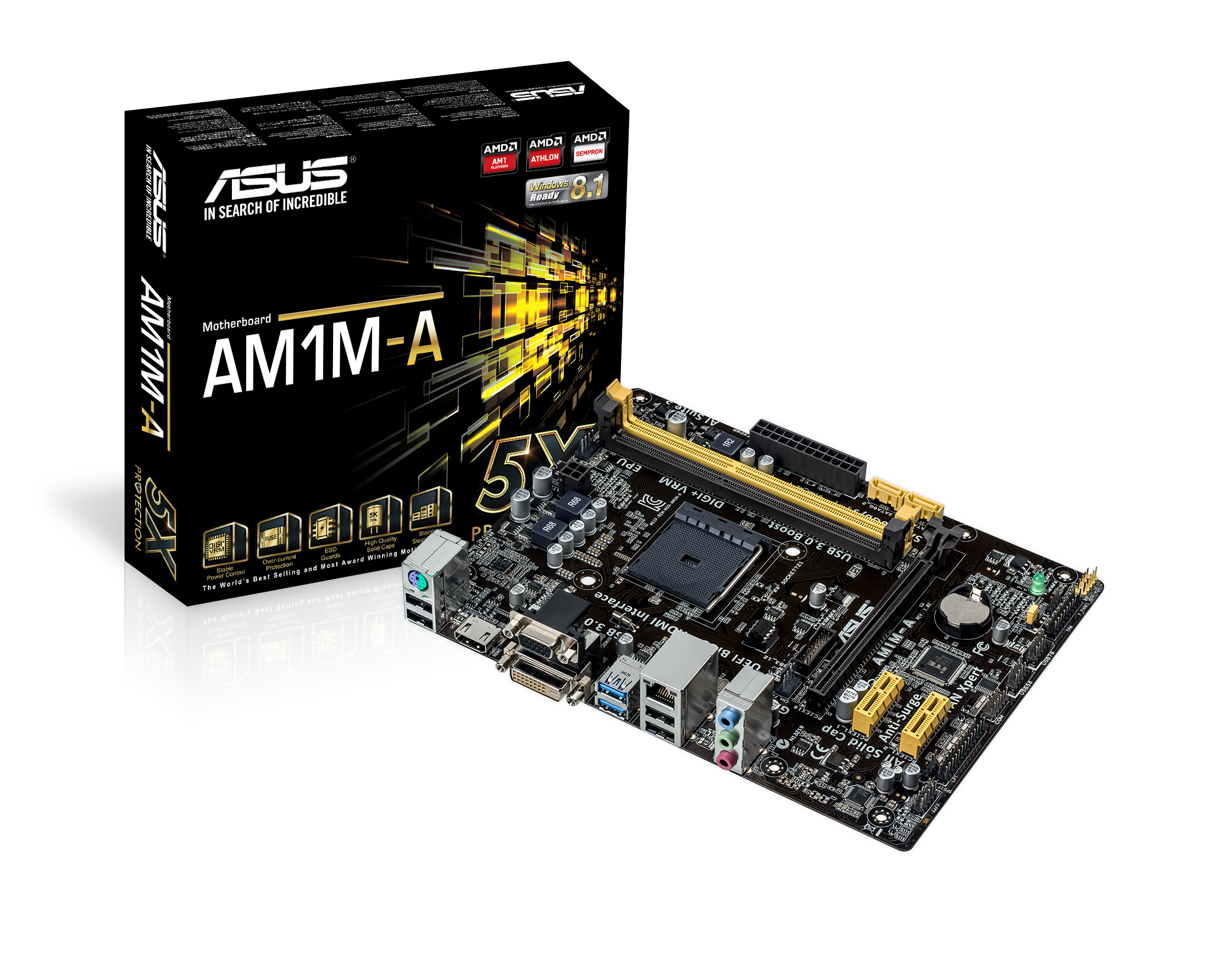

ASUS AM1M-A Featuring AMD SoC (AM1) Chipset
| Manufacturer | Asus |
| Model | AM1M-A |
| Socket Type & Form | AM1 / Micro ATX |
| Chipset | Built in AMD Sempron & Athlon APUs |
| SATA Ports | 2 x 6Gb/s |
| USB Ports | 2 x USB3 & 4 x USB2 |
| Graphics Connectors | 1xDVI, 1xHDMI, 1xD-Sub |
| RAM Slots | 2 x DIMM, MAX 32GB DDR3 |

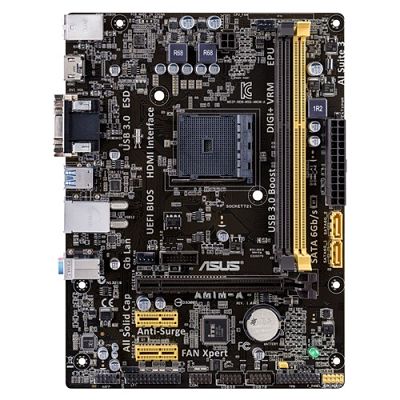

AMD AM1 Socket-based power-efficient SoC motherboard for entry-level desktops, featuring exclusive high-endurance 5X Protection
- ASUS 5X PROTECTION - All-round protection provides the best quality, reliability, and durability
- New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
- USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0
- Ai Suite 3 - One-stop access to innovative ASUS features
AMD SoC Athlon and Sempron Series APUs
This powerful and innovative motherboard supports both dual- and quad-core AMD Athlon and Sempron SoC (system-on-a-chip) APUs integrating Radeon™ HD graphics and support for HD video playback. This revolutionary APU (Accelerated Processing Unit) combines high processing power, advanced Microsoft® DirectX 11.1 graphics, and Fusion controller hubs (FCHs) in one small, efficient package. This SoC APU features up to single-channel DDR3 1600/1333 memory, SATA 6Gbit/s and USB 3.0 natively. AMD Athlon/Sempron APUs are the first multi-core x86 SoC with AM1 Series socket solution for entry-level desktops, improving performance by over 50 percent compared to the previous (‘Brazos 2.0’) generation of AMD APUs.
- CPU
AMD Socket AM1 Athlon™/Sempron™ Processors
Supports CPU up to 4 cores
* Refer to www.asus.com for CPU support list - Chipset
Build in AMD Sempron & Athlon-Series APUs
- Memory
2 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
Single Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. - Graphic
Integrated AMD Radeon™ R Series Graphics in the APU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1080 @ 60 Hz*1
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB - Expansion Slots
1 x PCIe 2.0 x16 (x4 mode)
2 x PCIe 2.0 x1 - Storage
AMD® Sempron & Athlon-Series APUs :
2 x SATA 6Gb/s port(s), yellow - LAN
Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - USB Ports
ASMedia® ASM1042 controller :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
AMD® Sempron & Athlon-Series APUs :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)
AMD® Sempron & Athlon-Series APUs :
2 x USB 3.0/2.0 port(s) (2 at mid-board) - Special Features
ASUS 5X Protection :
- ASUS DIGI+ VRM - 1 + 1 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot - Operating System Support
Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® XP , 32bit - Back I/O Ports

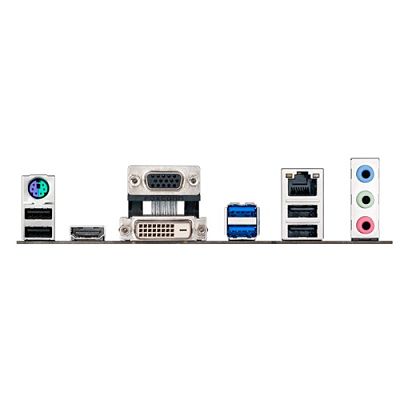

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
3 x Audio jack(s) - Internal I/O
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s) - Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s) - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
- Support Disc
Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version) - Form Factor
mATX Form Factor
8.9 inch x 6.7 inch ( 22.6 cm x 17 cm ) - Note
*1: Please check the specifications of your AMD APU for capabilities. Video playback at 4096 x 2160 pixels may not be guaranteed.
*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
