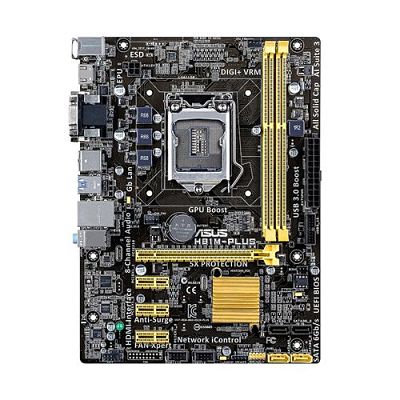

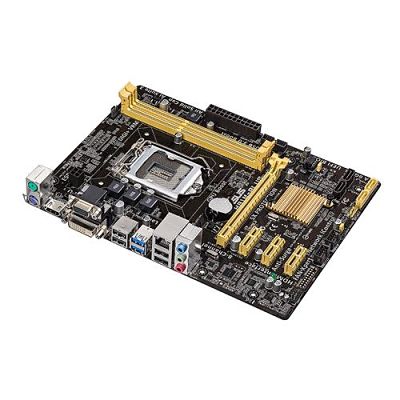

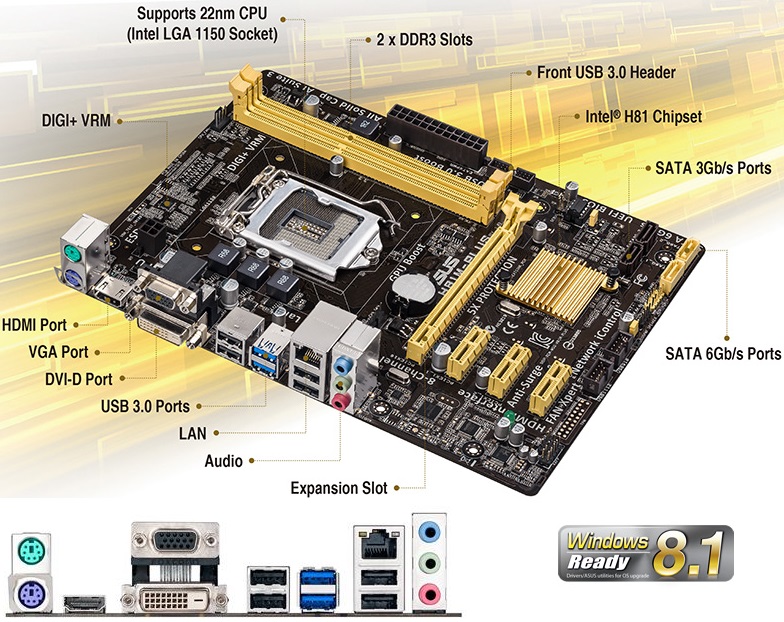

ASUS H81M-PLUS - USB2.0, USB3.0, SATA6 + VGA,DVI & HDMI
Manufacturer | Asus |
Model | H81M-Plus |
Socket Type & Form | 1150 / Micro ATX |
Chipset | Intel H81 |
SATA Ports | 2 x 6Gb/s + 2 x 3Gb/s |
USB Ports | 4 x USB3 & 8 x USB2 |
Graphics Connectors | 1xDVI, 1xHDMI, 1xD-Sub |
RAM Slots | 2 x DIMM, MAX 16GB DDR3 |
Micro-ATX H81 features new high-endurance 5X Protection and 4 USB 3.0 support with superfast USB 3.0 Boost technology
- ASUS 5X Protection - All-round protection provides the best quality, reliability, and durability
- USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0
- HDMI & DVI Outputs - High-definition Visual Enjoyment
- New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
- Network iControl - Real-time network bandwidth management
- CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - Chipset
Intel® H81
- Memory
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz. - Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Dual independent displays support with HDMI/DVI and D-Sub - Expansion Slots
1 x PCIe x16
3 x PCIe 2.0 x1 - Storage
Intel® H81 chipset :
2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1 - LAN
Realtek® 8111G, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - USB Ports
ASMedia® ASM1042 controller :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
Intel® H81 chipset :
2 x USB 3.0/2.0 port(s) (2 at mid-board)
Intel® H81 chipset :
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board) - Special Features
ASUS 5X Protection :
- ASUS DIGI+ VRM - 3 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot - Operating System Support
Windows® 8.1
Windows® 8

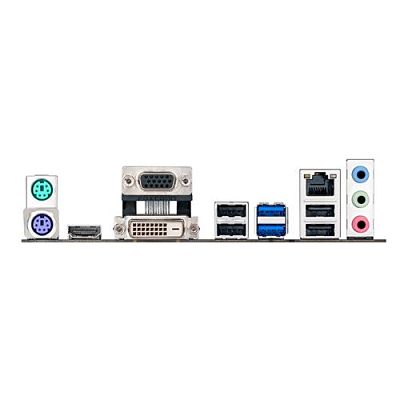

Windows® 7 - Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
3 x Audio jack(s) - Internal I/O
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s) - Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s) - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE
- Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-Virus Software (OEM Version) - Form Factor
uATX Form Factor
9.6 inch x 7.2 inch ( 24.4 cm x 18.3 cm ) - Note
*1-1:Due to the limitation of the Intel® H81chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program.
*1-2:These functions will work depending on the CPU installed.
*2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
