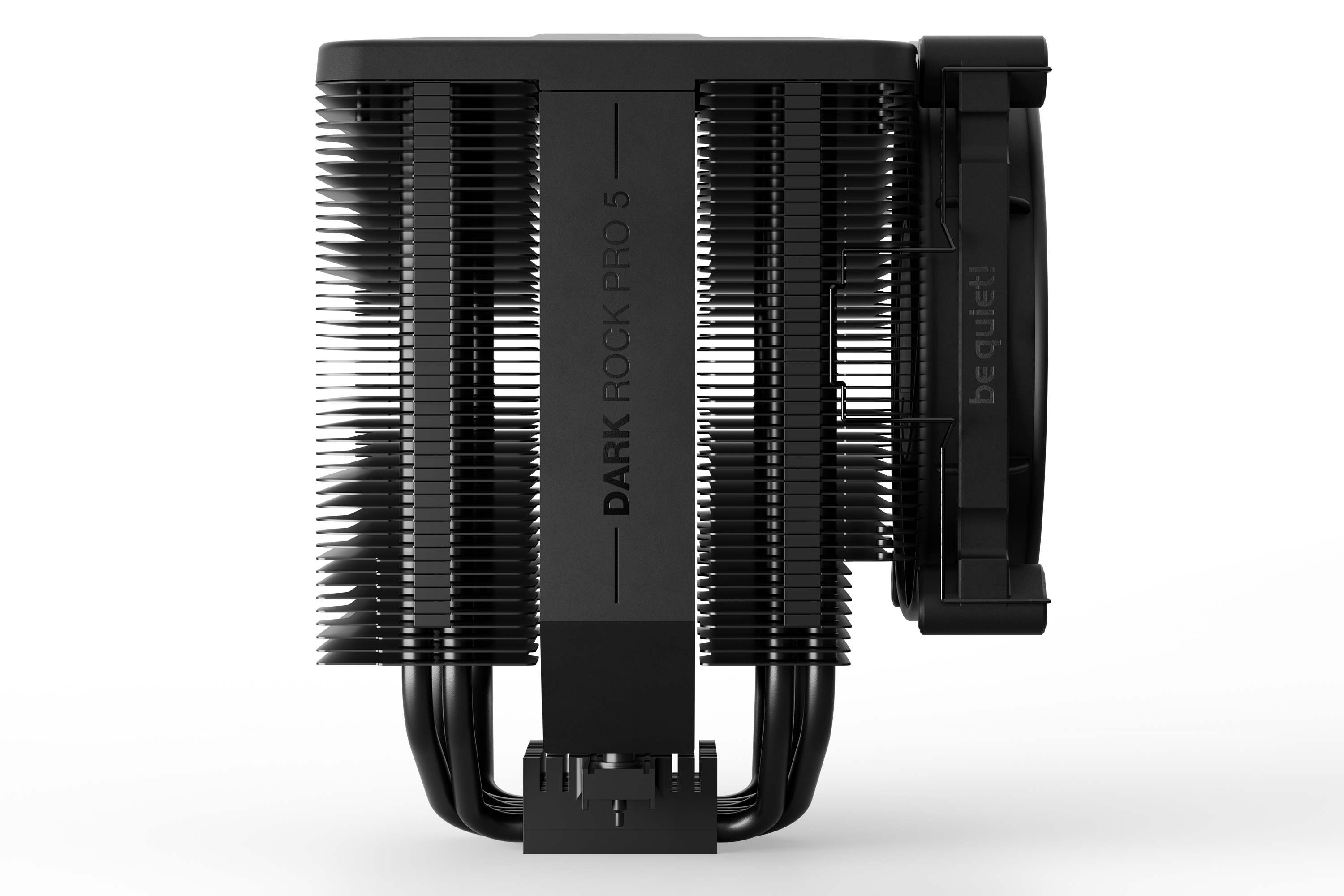

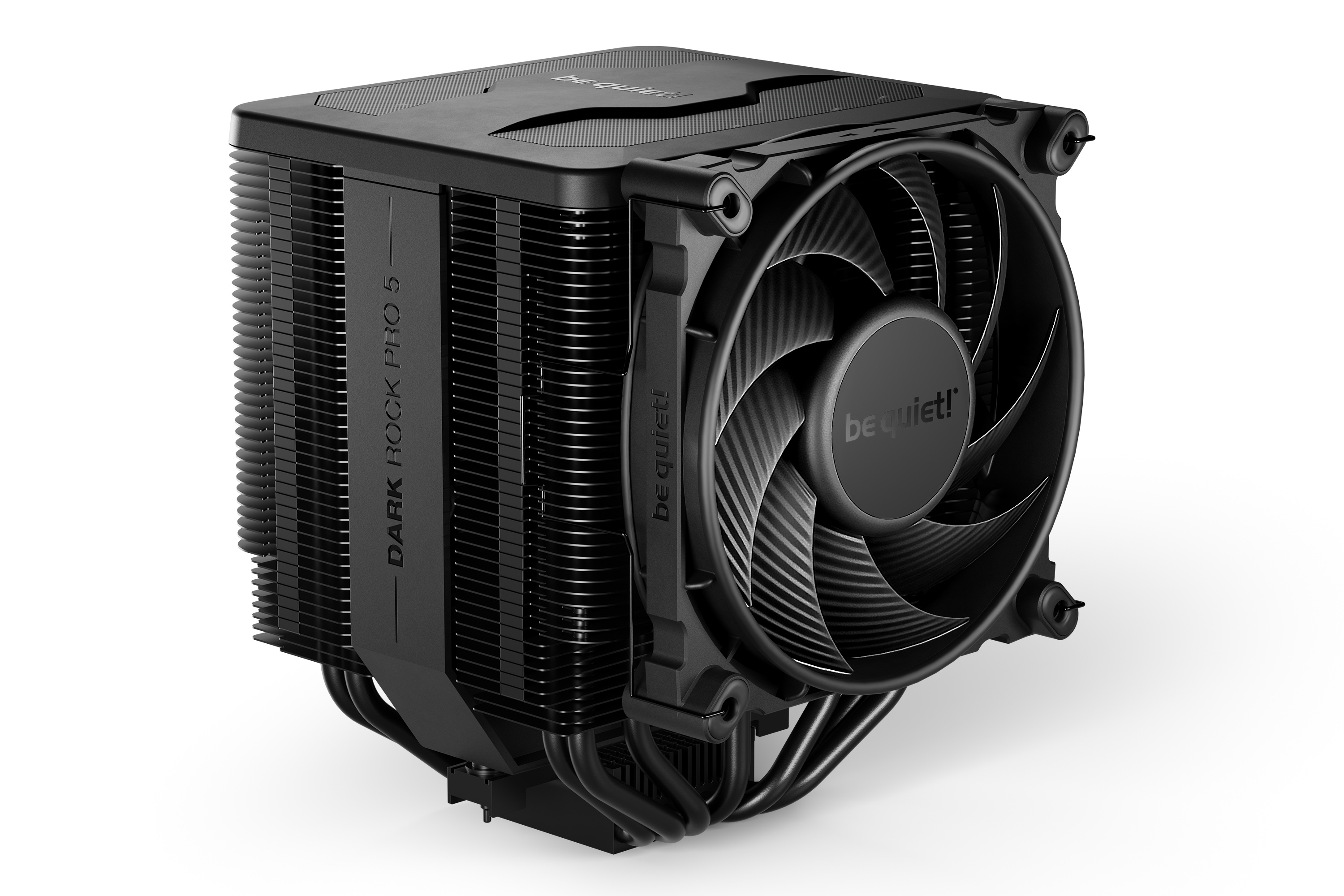

BE QUIET! Dark Rock Pro 5 CPU Cooler - Ultra Quiet - (AIR)
| Manufacturer | be quiet! |
| Model | Dark Rock Pro 5 |
| Socket Support | Intel & AMD |
| Max Cooling | 270 Watts |
| Heatpipes | 7 (6mm) |
| Fan Size | 135mm + 120mm |
| Fan Speed | 15/1300 - 2000/1700 RPM |
| Noise Level | 50/75/100% (rpm) 8.9 / 16.3 / 23.3 |
Dark Rock Pro 5 offers an immense cooling performance and virtually inaudible operation. Excellent for heavily overclocked systems and demanding workstations.
- 7 high-performance heat pipes for immensely high cooling power
- 2 virtually inaudible Silent Wings PWM fans for perfect airflow
- Front fan with funnel-shaped outlet for optimal air distribution
- A speed switch allows you to switch between Quiet Mode and Performance Mode anytime
- Height-adjustable front fan and generous heat sink cut-outs for high RAM and VRM cooler compatibility
- Special black coating with ceramic particles enables perfect heat transfer and elegant look
- Compatible with liquid metal thermal grease
General data
| Model | Dark Rock Pro 5 |
| TDP (W) | 270 |
| Color option | Black |
| Overall dimensions without mounting material (L x W x H), (mm) | 145 x 136 x 168 |
| Total weight (kg) | 1.29 |
| Socket compatibility Intel | 1700 / 1200 / 1150 / 1151 / 1155 |
| Socket compatibility AMD | AM5 / AM4 |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 8.9 / 16.3 / 23.3 |
| Number of fans | 2 |
| Lighting connector | - |
Heatsink specifications
| Dimensions (L x W x H), (mm) | 119.5 x 136 x 168 |
| Fin material | Aluminum |
| Surface treatment | Ceramic coating |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 7 / 6 |
| Decoupled fan mounting | - |
Fan specifications
| Fan model | Silent Wings 4 / Silent Wings |
| Fan dimensions (mm) | 120 x 120 x 25 / 135 x 135 x 25 |
| Speed @ 100% PWM (rpm) | Q: 1500; 1300 / P: 2000; 1700 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 52.5 / 89.1 | 68.7 / 116.6 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.48 / 1.82 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.20 / 0.28 |
| Input power (W) | 2.4 / 3.4 |
| Connector | 4-pin PWM |
| Lighting connector | - |
| Cable length (mm) | 80 / 120 |
| Lifespan (h / 25°C) | 300,000 |
| Y-Cable | ✓ |
Accessories
| Thermal grease (Type) | Included |
| Mounting set | Intel & AMD |
| Screwdriver | ✓ |
| Y-Cable | - |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
Safety certification
| Approvals | CE, UKCA, UL, TÜV |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BK036 |
| EAN code | 4260052190746 |
| Dimensions, package (L x W x H), (mm) | 202 x 180 x 220 |
| Gross weight, package (kg) | 1.7 |
| Pieces per packaging unit | 12 |
| Dimensions, shipping box (L x W x H), (mm) | 625 x 380 x 467 |
| Gross weight, shipping box (kg) | 22.1 |
| RRP (€) | 99.90 |
