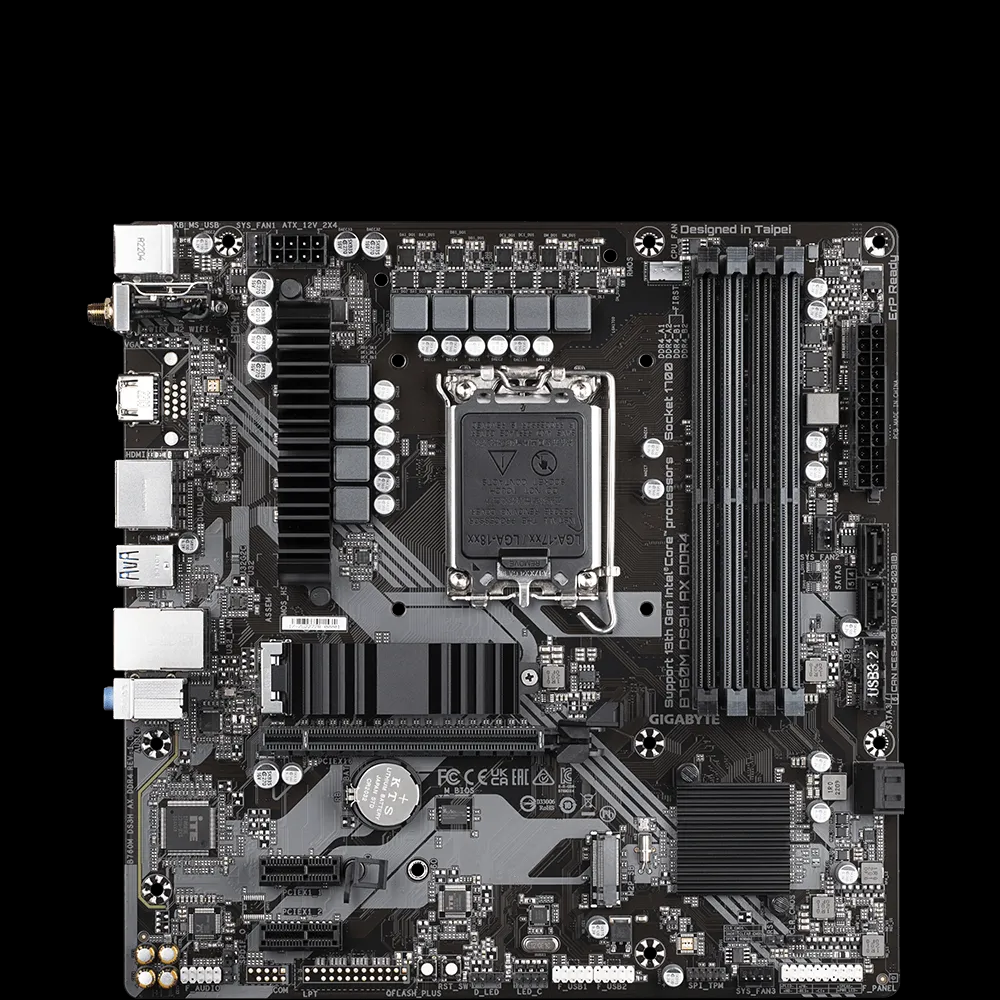

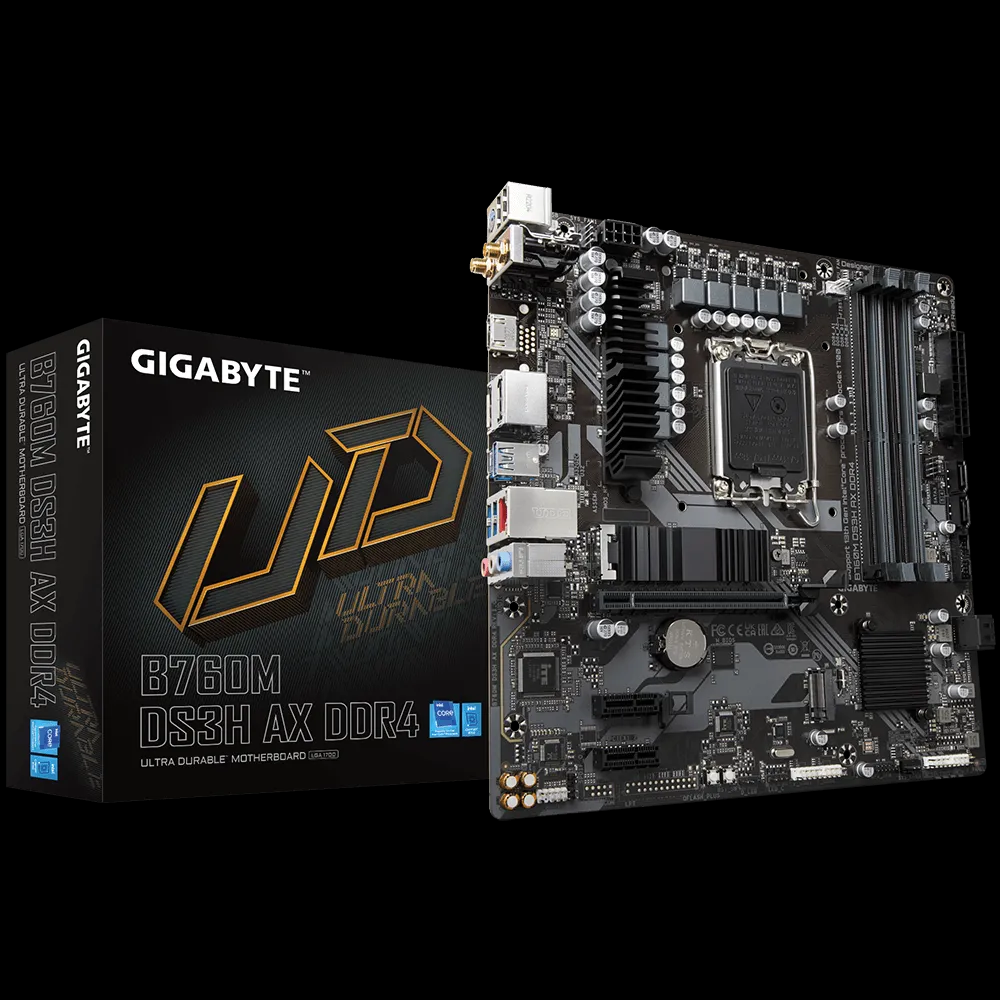

GIGABYTE | B760M DS3H AX DDR4 WIFI - PCIe 4.0 - USB 3.2 - M.2
| Manufacturer | GIGABYTE |
| Model | B760M DS3H AX DDR4 |
| Socket Type & Form | 1700 / mATX |
| Chipset | Intel B760 |
| Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| USB Ports | 1 x TYPE-C - 3 x USB 3.2 Gen 1 ports / 2 x USB 2.0 ports |
| Graphics Connectors | 1xHDMI,1xDisplayPort |
| RAM Slots | 4 x DIMM, MAX 128GB DDR4 |
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard：To Ensure M.2 SSD Performance
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| CPU |
| 1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| 2. L3 cache varies with CPU |
| (Please refer "CPU Support List" for more information.) |
| Chipset |
| 1. Intel® B760 Express Chipset |
| Memory |
| 1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules |
| 2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| 3. Dual channel memory architecture |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| 6. Support for Extreme Memory Profile (XMP) memory modules |
| (Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
| Integrated Graphics Processor-Intel® HD Graphics support: |
| 1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| * Support for HDMI 2.1 version and HDCP 2.3. |
| ** Support native HDMI 2.1 TMDS compatible ports. |
| 2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| * Support for DisplayPort 1.2 version and HDCP 2.3 |
| 3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| * Support for DisplayPort 1.2 version. |
| (Graphics specifications may vary depending on CPU support.) |
| Support for up to triple-display at the same time |
| Audio |
| 1. Realtek® Audio CODEC |
| 2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| 4. Support for S/PDIF Out |
| LAN |
| 1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
| AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0) |
| 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| 2. BLUETOOTH 5.2 |
| 3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate |
| Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) |
| 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| 2. BLUETOOTH 5.3 |
| 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2) |
| 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| 2. BLUETOOTH 5.3 |
| 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3) |
| 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| 2. BLUETOOTH 5.3 |
| 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots |
| CPU: |
| 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Chipset: |
| 1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface |
| CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| 2. 4 x SATA 6Gb/s connectors |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB |
| Chipset: |
| 1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| 2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) |
| 3. 2 x USB 2.0/1.1 ports on the back panel |
| Chipset+2 USB 2.0 Hubs: |
| 1. 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors |
| 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector |
| 3. 1 x CPU fan header |
| 4. 3 x system fan headers |
| 5. 1 x addressable LED strip header |
| 6. 1 x RGB LED strip header |
| 7. 2 x M.2 Socket 3 connectors |
| 8. 4 x SATA 6Gb/s connectors |
| 9. 1 x front panel header |
| 10. 1 x front panel audio header |
| 11. 1 x USB 3.2 Gen 1 header |
| 12. 2 x USB 2.0/1.1 headers |
| 13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| 14. 1 x S/PDIF Out header |
| 15. 1 x Q-Flash Plus button |
| 16. 1 x reset button |
| 17. 1 x reset jumper |
| 18. 1 x Clear CMOS jumper |

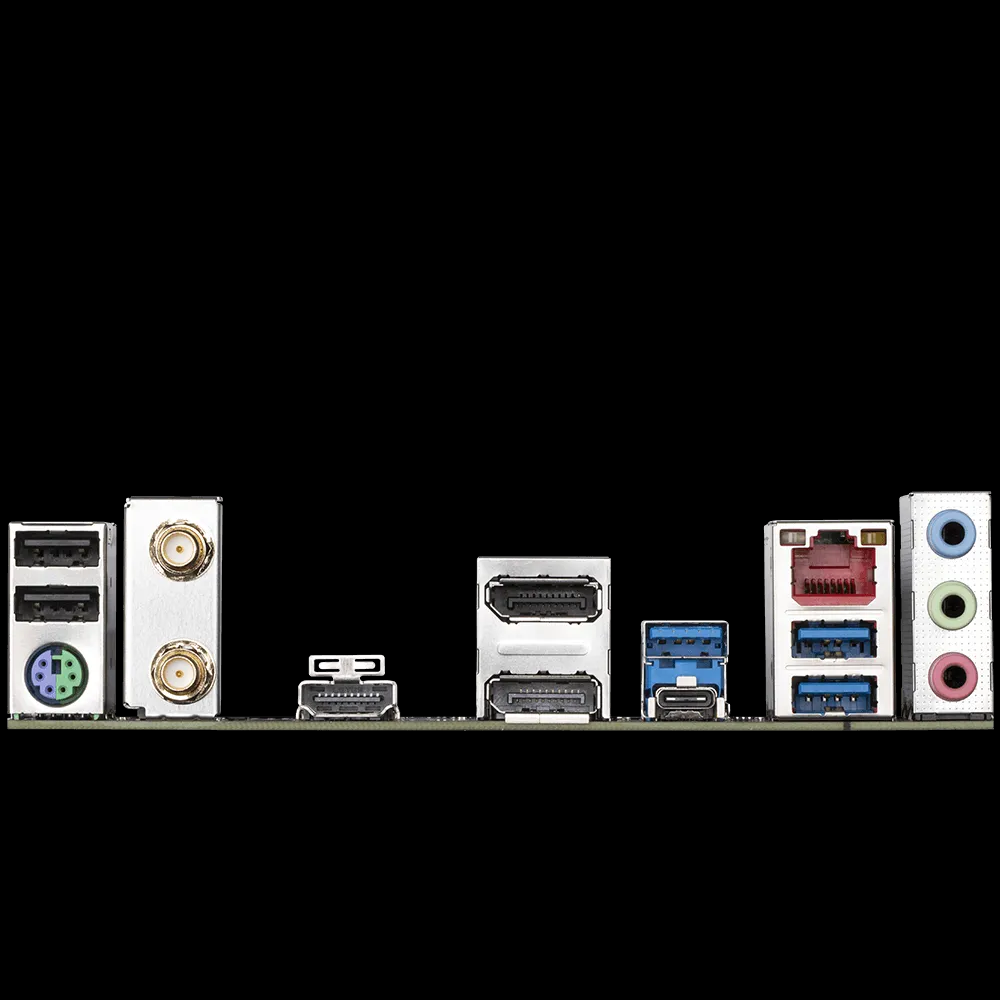

| Back Panel Connectors |
| 1. 2 x USB 2.0/1.1 ports |
| 2. 1 x PS/2 keyboard/mouse port |
| 3. 2 x SMA antenna connectors (2T2R) |
| 4. 1 x HDMI port |
| 5. 2 x DisplayPorts |
| 6. 3 x USB 3.2 Gen 1 ports |
| 7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| 8. 1 x RJ-45 port |
| 9. 3 x audio jacks |
|
