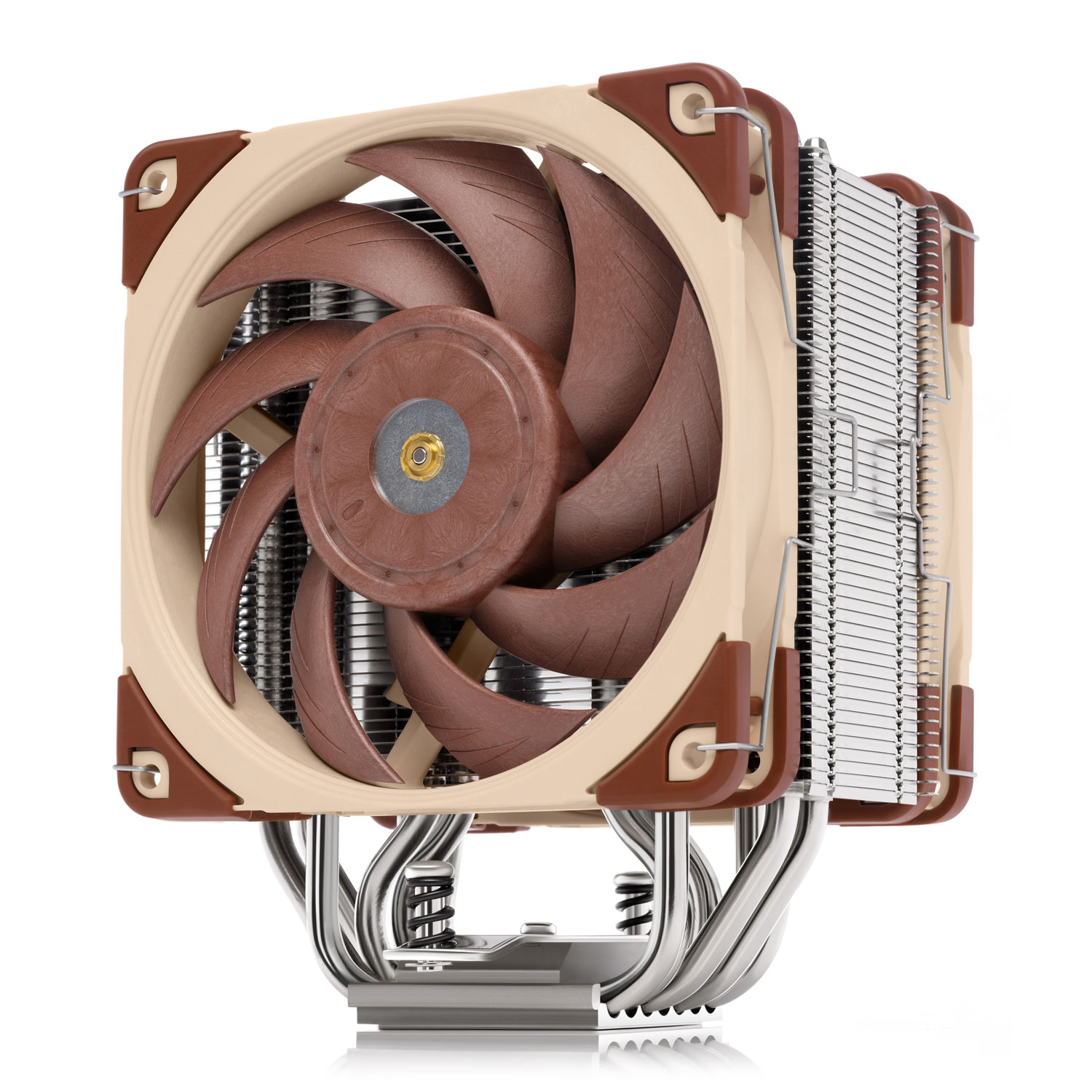

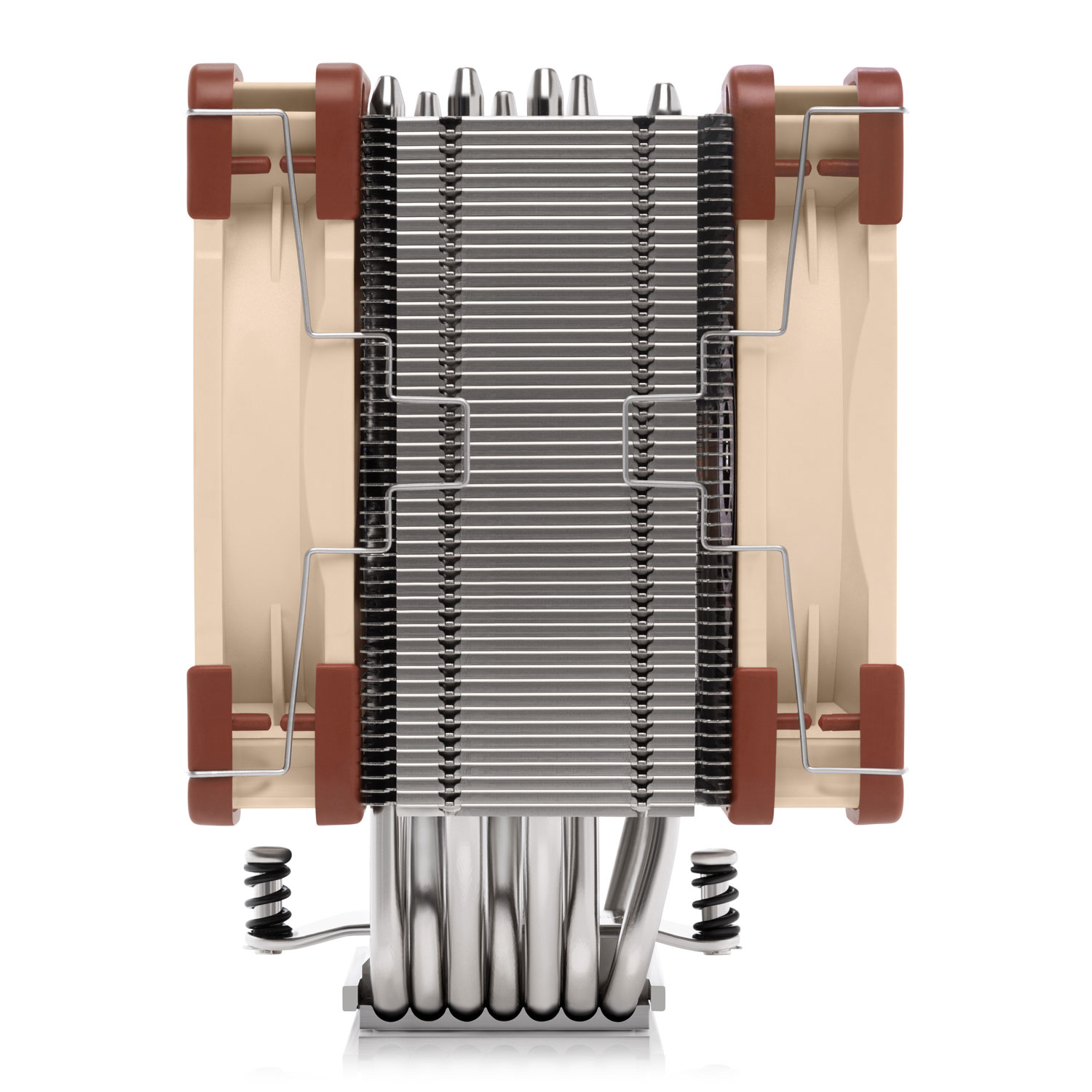

The NH-U12A is the latest, 5th generation of Noctua’s award-winning NH-U12 series of 120mm size premium-quality quiet CPU coolers. Conceived to push the envelope of the 120mm form factor, it combines two of Noctua’s flagship model NF-A12x25 PWM 120mm fans with a completely redesigned heatsink featuring 7 heatpipes and an increased fin surface area for superior heat dissipation. This way, the NH-U12A can rival the performance of many 140mm size coolers while offering 120mm class case and PCIe compatibility. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12A is a deluxe choice that combines top-tier performance with excellent compatibility and outstanding quietness of operation.
Features
• 140mm class performance in 120mm size.
• Excellent case, RAM and PCIe compatibility.
• Quiet, state-of-the-art NF-A12x25 120mm fans.
• Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system.
• Renowned Noctua quality backed up by 6-year manufacturer's warranty.
• Compatible with Intel LGA1155/1156/2011/2066 and AMD FM1/FM2/AM3+/AM3/AM2+/AM2.
Fan Specifications |
Included Fan Configuration |
2 x 120mm |
Fan Edition |
Noctua NF-A12x25 PWM |
PWM Fan |
Yes |
Fan Bearing Type |
SSO2 |
Fan Colour |
Beige/Brown |
LED Lighting |
N/A |
Fan/Pump Connectors |
1 x 4-pin |
Max. Fan Speed |
2000 rpm |
Max. Fan Airflow |
60 CFM |
Max. Air Pressure |
2.34 mm H²O |
Max. Sound Level |
22.6 dBA |
Materials |
Cooler Materials |
Aluminium / Nickel Plated / Copper |
Included TIM (Thermal Interface Material) |
NT-H1 High-Grade Thermal Compound (Included) |
Dimensions & Weight |
Heatsink/Radiator Dimensions |
125 x 158 x 58 mm (WxHxD) |
Total Dimensions |
125 x 158 x 112 mm (WxHxD) |
Weight |
1220 g |
Additional Information |
Scan Code |
LN98040 |
Model Number |
NH-U12A |
GTIN |
841501100161 |
Cooler Specifications |
Edition |
NH-U12A |
Cooler Form Factor |
Single Tower |
Heatpipes |
7 |
Cooler Features |
- Adjustable Height Fan
- Aluminium Fins
- Low-Noise Cable
- Nickel-Plated Copper Base
- Nickel-Plated Copper Heatpipes
- Push-Pull Operation
|
Socket Compatibility |
- 1150
- 1151
- 1155
- 1156
- 2011
- 2011-3
- 2066
- AM2
- AM2+
- AM3
- AM3+
- AM4
- FM1
- FM2
- FM2+
|
Max. TDP |
|
