SHARKOON Sharkzone C10 - m-ITX
|External 5.25" Drive Bays||1|
|External 3.5" Drive Bays||0|
|Rear Cooling||80mm (Optional)|
|Other Cooling||1 x 120mm Side (Included) or 1 x 240mm Radiator(Optional)|
SHARK ZONE: The new series from Sharkoon – specifically designed for gamers!
Familiar high Sharkoon quality with a well-known, attractive price-performance ratio. The black and yellow SHARK ZONE design enhances your gaming skills and sends a visual warning to your gaming rivals. Use at your own risk!
Compact, Stylish and High Quality

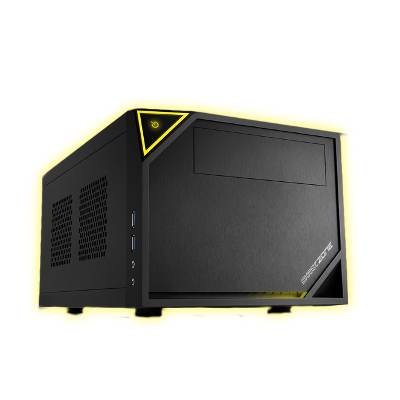

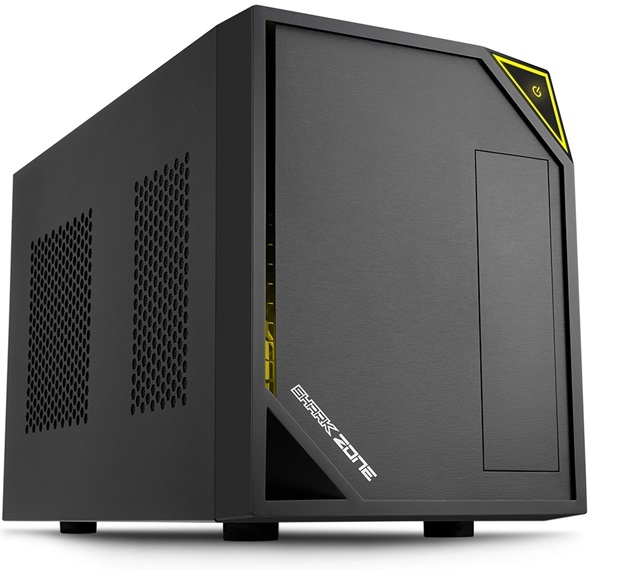

The all-black SHARK ZONE C10 Mini-ITX PC case offers maximum flexibility within the smallest of space. Thanks to its sophisticated layout, the high quality case offers more than enough room for all needed components. In addition, an optical drive can be installed. The stylish SHARK ZONE design is perfect for use as a powerful gaming PC. With its compact dimensions of only 37.0 x 22.5 x 18.0 cm (L x W x H), it is ideal for mobile and space-saving usage suitable for the next LAN party. Thanks to the clever arrangement of the controls and ports, the case can be used both horizontally and vertically. In addition, conventional ATX power supplies can be installed, in which the use of SFX power supplies provide even more space. A total of up to two expansion cards can be installed.
Unmatched Ventilation Options
A quiet 120 mm fan is pre-installed at the top and, if needed, an additional 120 mm fan can also be mounted. If no optical drive is installed, the top also has room for a 240 mm radiator for optional water cooling of the system. Ideal: All side panels offer generous ventilation openings and are all equipped with dust filters. A clear advantage for built-in graphics cards is the fresh air perfectly supplied via the side openings. In order to further optimize the ventilation, an 80 mm fan can be mounted in the rear.
In the front, two USB 3.0 ports provide easy access for connecting peripheral devices. In addition, the SHARK ZONE C10 has two audio ports for convenient use of a headset.
Versatile Mounting Options

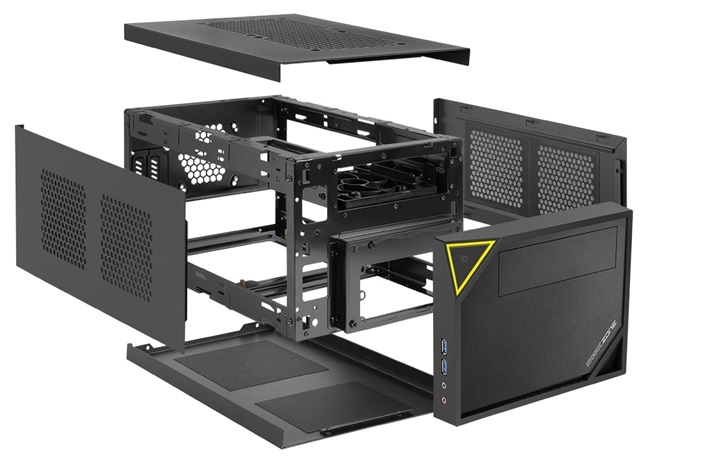

Ideal for a gaming PC: The SHARK ZONE C10 offers room for the installation of a powerful dual-slot graphics card, with a maximum length of up to 31.5 cm. Furthermore, an optical drive in the 5.25" drive bay can be installed. When using the drive bay, a 3.5 inch hard drive or a 2.5" HDD/SSD can also be mounted. Without an optical drive, up to two 3.5 inch hard drives or two 2.5" HDD/SSD can be installed. An additional 2.5" HDD/SSD can be attached to the back of the case, instead of an 80 mm fan. CPU coolers with a maximum height of up to 15 cm can also be used. For easy mounting of a cooler, the case provides an appropriate cooler cutout. Practical thumbscrews simplify the opening as well as the closing of the case.
Sharkoon SHARK ZONE
A warning for some, an adventure for you.
Max. Length Graphics Cards 31.5 cm
Max. Height CPU Cooler 15.0 cm
Max. Length Power Supply 14.5 cm
Max. Height Radiator incl. Fan 5.0 cm
Power Supply SFX/ATX (not compatible with modular ATX power supplies)
|Dimensions (L x W x H):||37.0 x 22.5 x 18.0 cm|
|USB 3.0 (Front):||2*|
|5.25" or 3.5" or 2.5":||1|
|3.5" or 2.5":||1|
|Rear Panel:||1x 80 mm fan (optional)**|
|Top Panel:||1x 120 mm fan (pre-installed) or 1x 240 mm radiator (optional)|
|Max. Length Graphics Cards:||31.5 cm|
|Max. Height CPU Cooler:||15.0 cm|
|Max. Length Power Supply:||14.5 cm|
|Max. Height Radiator incl. Fan:||5.0 cm|
|Power Supply:||SFX/ATX (not compatible with modular ATX power supplies)|
|SHARK ZONE C10|
|* internal 19-pin mainboard connector incl. USB 2.0 plug|
|** Install either 2.5" drive or 80 mm fan in rear panel|
