Description

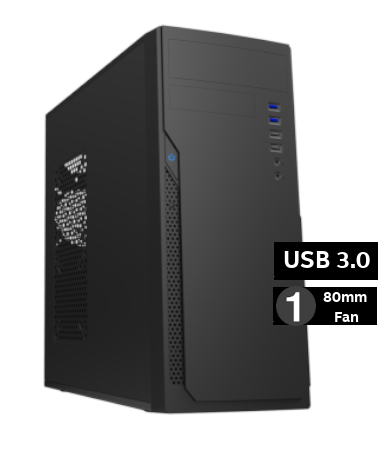

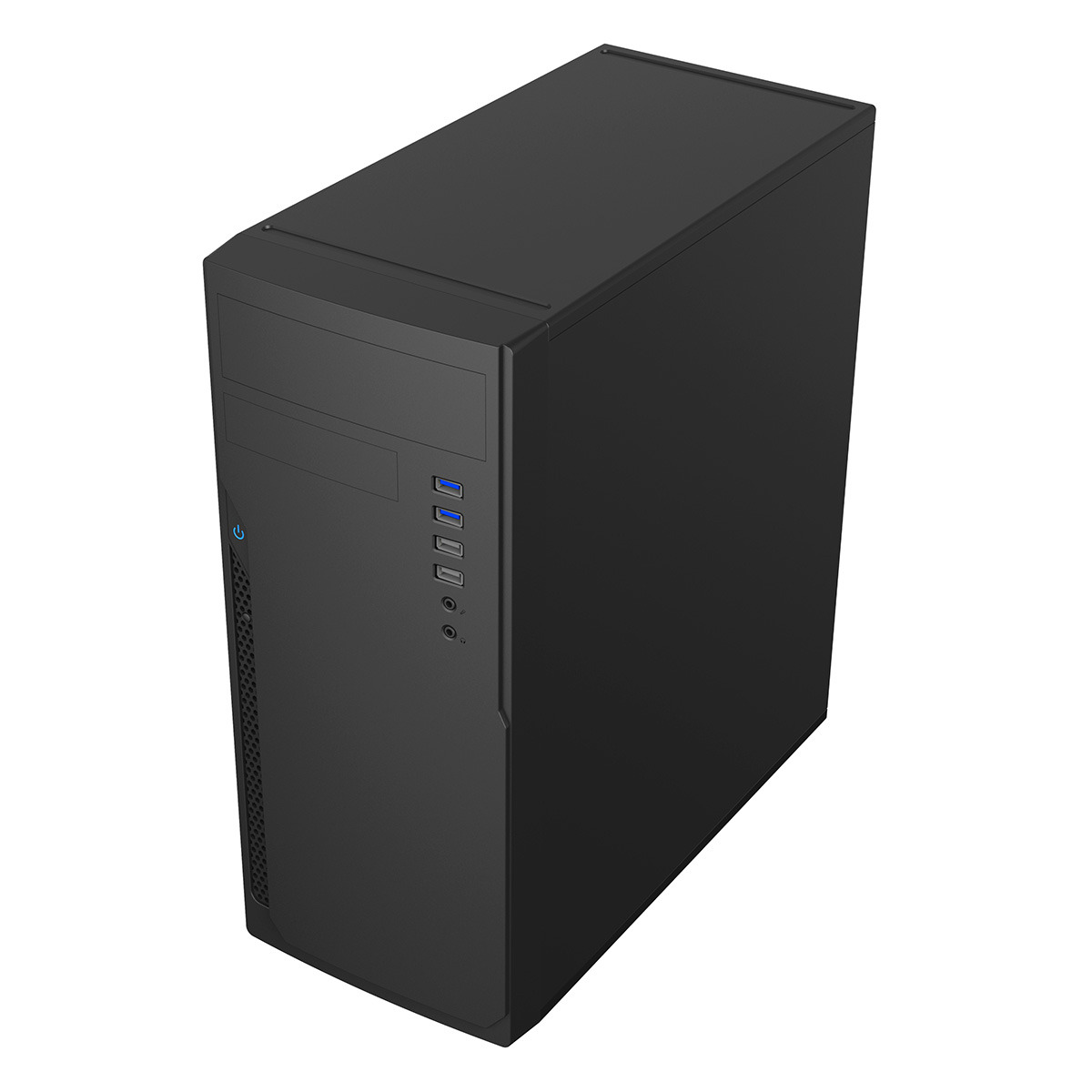

The CiT Classic Midi is a compact ATX chassis design that supports both Micro ATX and ATX motherboards, it is aimed at business and home office solutions.
The Classic Midi is equipped with 2 x USB 3.0 and 2 x USB 2.0 ports. The Classic Midi also supports a rear 80mm fan.
Key Features
|
Storage Capacity - Case supports up to 3 x HDD's (2.5" or 3.5").
Front I/O Ports - 2 x USB 2.0, 2 x USB 3.0 and HD Audio.
VGA Support - Can take VGA cards up to 320mm in length.
Motherboards - Supports ATX or Micro ATX motherboards.
Side Panel - Intel TAC2.0 side panel vent hole design.
Specifications
| PSU Rail Output (max.): |
|
| +3.3V: |
28A |
| +5V: |
30A |
| +12V: |
27A |
| -12V: |
0.3A |
| +5VSB: |
2.5A |
| PSU Connectors & Qty: |
|
| 20 + 4pin ATX Mainboard: |
1 |
| 4pin +12V CPU: |
1 |
| SATA: |
2 |
| 4pin Molex: |
2 |
| FDD: |
1 |
| : |
|
| Chassis Size (Without the Front panel and Side Panel): |
(W) 175 x (H) 405 x (D) 330mm |
Case Specifications
| Form Factor: |
Midi Tower |
| Motherboard Support: |
ATX, Micro ATX, Mini ITX |
| PSU Support: |
Standard ATX |
| PSU Location: |
Top |
| Gaming Case: |
No |
| Water Cooling: |
Not Water Cooling Ready |
| Body Material: |
0.45mm Metal |
| Front Bezel Material: |
Plastic |
| Side Panel: |
Vented |
| Internal Cable Management Depth: |
21mm |
| External Bays: |
1 x 5.25” External
1 x 3.5” External |
| Internal Bays: |
3 x 3.5” Internal
3 x 2.5” Internal |
| Drive Bay Notes: |
Can have 3 x 2.5" or 3 x 3.5" or mixture of both |
| Expansion Slots: |
7 x Full Size |
| Cooling Front: |
None |
| Cooling Top: |
None |
| Cooling Rear: |
Space For 1 x 80mm Fan (1 x 80mm Fan inc.) |
| Cooling Side: |
Space For 2 x 80mm, 2 x 92mm or 2 x 120mm Fans |
| Cooling Bottom: |
Vent |
| IO Ports: |
2 x USB 3.0
2 x USB 2.0
1 x HD Audio
1 x Microphone |
| GPU Max Length: |
320mm |
| CPU Cooler Maximum Height: |
145mm |
| Front Bezel Colour: |
Black |
| Body Colour: |
Black |
| System Cabinet Features: |
Supports Kensington Lock |
| PSU Included: |
Yes |
General Specifications
| Manufacturer Part Number: |
CIT CLASSIC MIDI |
| EAN Number: |
5055492406118 |
| Has Mains Plug: |
No |
| Colour: |
Black |
| What's In The Box: |
Case
Screws |
| Unit (Product) Dimensions (mm): |
175mm x 409mm x 380mm (W x H x D) |
| Packaging Dimensions (mm): |
217mm x 410mm x 447mm (W x H x D) |
| Net Weight (KGs): |
3.6 KGs |
| Gross Weight (KGs): |
4.3 KGs |
|
