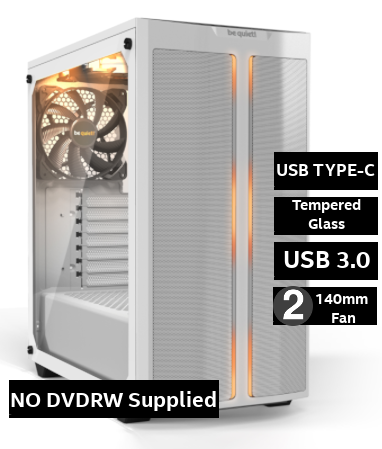

BEQUIET! Pure Base 500DX - White
Motherboard Support | Micro & Standard ATX & Mini-ITX |
External 5.25" Drive Bays | 0 |
External 3.5" Drive Bays | 0 |
Internal 3.5" | 2 |
Internal 2.5" | 5 |
Rear Cooling | 1 x 140mm(Included) |
Front Cooling | 1 x 140mm (Included) 3 x 120mm(Optional) |
Top/Bottom Cooling | Top 1x140mm(Included) |
HIGH AIRFLOW AND MAXIMUM PERFORMANCE
All parts optimized for airflow and performanceFor all who strive for maximum performance and especially with water-cooled systems, the Pure Base 500DX White with its extremely air-permeable front and top cover is the right choice. The dust filters on the front and bottom are easy to remove for cleaning.
THREE PREINSTALLED PURE WINGS 2
Whisper-quiet operation
Three preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the fans at the front, top and rear are 140mm models, resulting in very quiet operation. Up to two 140mm fans can be installed in addition.
IMPRESSIVE ILLUMINATION
ARGB light at the front and inside the caseARGB LEDs offer multiple colors and modes to individualize the look of the case from the inside as well as from the outside. You can optionally synchronize lighting with your motherboard or ARGB controller.
SMART I/O PORT
State-of-the-art technology for your systemA USB 3.1 Type C Gen. 2 connector is provided on the front I/O port and allows usage of latest hardware. There is also a switch on the front panel to control the interior and exterior LEDs.
Material
Top cover | ABS |
Side panel | Steel |
Side panel window | Tempered Glass 4mm |
Front panel | ABS |
Stands | ABS |
Drive bay capacity
5.25 bays | - |
3.5 slots (max.) | 2 |
3.5 slots (scope of delivery) | 2 |
2.5 slots (max.) | 5 |
2.5 slots (scope of delivery) | 5 |
Pre-installed fans
Fan @ front | 1x Pure Wings 2 140mm |
Fan @ rear | 1x Pure Wings 2 140mm |
Fan @ top | 1x Pure Wings 2 140mm |
Dimensions (L x W x H), (mm) | 140 x 140 x 25 |
Fan speed @ 100% PWM / 12V (rpm) | 900 |
Noise level @ 100% PWM / 12V (dB(A)) | 17.10 |
Airflow @ 100% PWM / 12V (CFM / m3/h) | 55.8 / 94.8 |
Air Pressure @ 100% PWM / 12V (mm H2O) | 0.6 |
Voltage range (V DC) | 12 |
Input power (W) | 1.08 |
Input current (A) | 0.09 |
Connector | 3-Pin |
Lifespan (h / 25°C) | 80,000 |
Fan controller | - |
Optional fan installation
Front (mm) | 1x 140 / 3x 120 |
Top (mm) | 1x 140 / 1x 120 |
Bottom (mm) | - |
Side panel (mm) | - |
PSU shroud | - |
Optional radiator installation
Front (mm) | 120 / 140 / 240 / 280 / 360 |
Top (mm) | 120 / 140 / 240 |
Bottom (mm) | - |
Rear (mm) | 120 / 140 |
Cooling
Max.construction height of CPU cooler unit (mm) | 190 |
Airflow channel | Front / Top / Rear |
Lighting
RGB LED illumination | Front LED ARGB / Internal ARGB |
LEDs synchronizable with RGB controller/motherboard | - |
Expandable RGB controller | - |
PSU compatibility
Maximum dimensions excl. bottom fan (mm) | 258 |
Maximum dimensions incl. bottom fan (mm) | 225 |
Graphics card
HDD cage (in height of graphics card) installed (mm) | 369 |
HDD cage (in height of graphics card) removed (mm) | 369 |
Insulation and damping
Top panel insulation mats | - |
Front panel insulation mats | - |
Side panel insulation mats | ✓ |
Anti-vibration decoupled HDD | ✓ |
Anti-vibration decoupled fan | - |
Anti-vibration decoupled PSU | ✓ |
Anti-vibration decoupled motherboard-tray | - |
Removeable dust filters
Front | 1 |
Bottom | 1 |
Side panel | 1 |
Accessories
Screw set (Drives/Motherboard) | ✓ |
Rubber rail (pcs.) | - |
Standoff (pcs.) | - |
LCS bracket (pcs). | - |
HDD slot cover (pcs.) | - |
Upper fan bracket (pcs.) | - |
HDD panel rubber grommet (pcs.) | - |
SSD bracket for PSU shroud | - |
