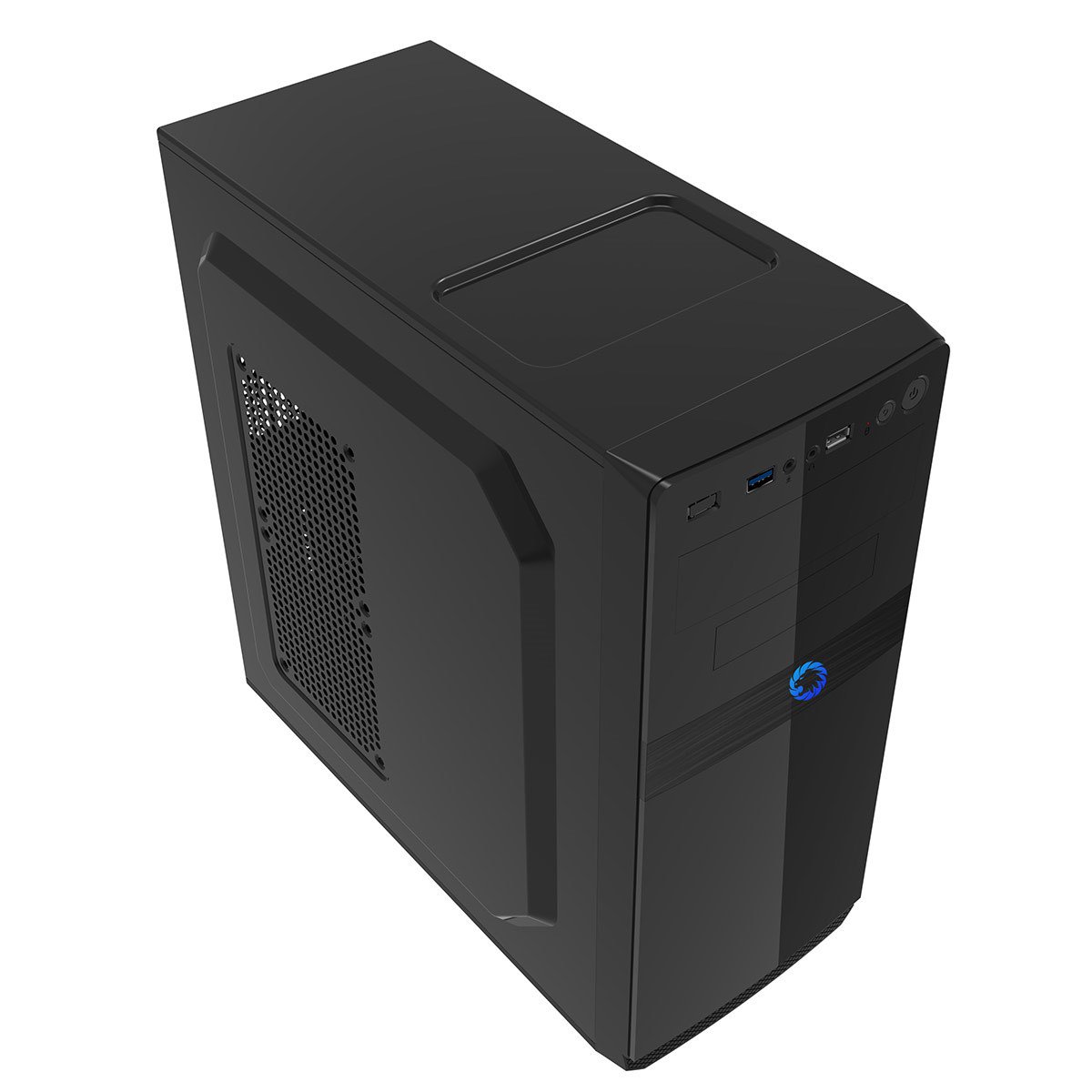

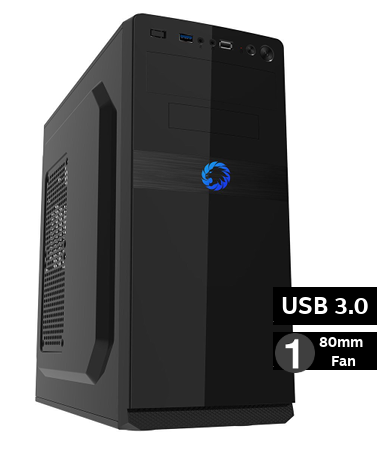

GameMax Proteus - USB3.0
|Motherboard Support||ATX - Micro ATX & Mini ITX|
|External 5.25" Drive Bays||1|
|External 3.5" Drive Bays||0|
|Rear Cooling||1 x 80mm(Included)120mm (Optional)|
|Top/Bottom/Side Cooling||2 x 120/120mm(Side Optional)|
The I/O panel comes complete with one SuperSpeed USB3.0 Port (up to 5Gbps), a Hi-Speed USB2.0 Port (up to 480Mbps), HD Audio Headphone and Microphone ports. The powder coated black interior completes the sleek and stylish design to the Proteus.
The Proteus is fully compatible with Mini iTX and Micro ATX motherboards, along with support of up to six HDDs. Although the Proteus is compact it is can support GPU lengths of up to 330mm, PSU lengths of up to 140mm and CPU cooler heights of up to 145mm. The internal cable management (depth of 21mm) allows for the routing of cables to keep the airflow around the important components, in order to keep them cool.
The Proteus is an ideal case for any home / SOHO user.
|External Expansion Bays||1 x 5.25"
1 x 3.5"
|Internal Expansion Bays||4 x 3.5"
2 x 2.5"
|Expansion Slots||7 x Full Height|
|1 x USB 3.0
1 x USB 2.0
|Headphone Ports||1 x 3.5mm Jack|
|Microphone In Port||1 x 3.5mm Jack|
|Rear: Supports 1 x 80mm or 120mm fan (80mm fan included)
Side: Supports 2 x 120mm fans
|Power Supply||ATX Power Supply supported|
|Form Factor||Mid Tower Case|
|In The Box||Case
