£250.00



Current Stock Level

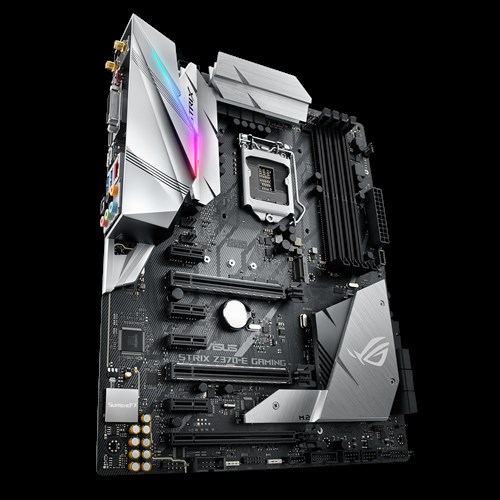

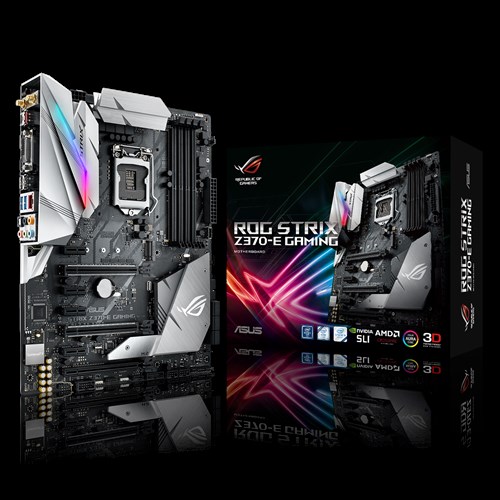

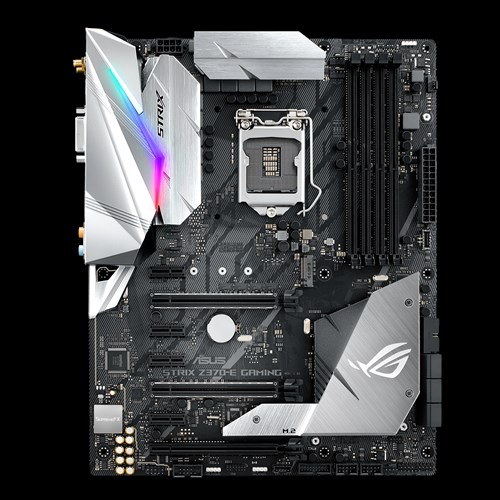

ASUS ROG STRIX Z370-E GAMING - USB3.1 Gen2, RGB, Wifi, SATA6 + DUAL M.2




Manufacturer Asus
Model STRIX Z370-E GAMING
Socket Type & Form 1151 / ATX
Chipset Intel Z370
SATA Ports 6 x 6Gb/s + 2 x M.2
USB Ports USB3.0 x4/2.0 x2
Graphics Connectors 1xDP, 1xDVI, 1xHDMI
RAM Slots 4 x DIMM, MAX 64GB DDR4


  • CPU
    Intel® Socket 1151 for 8th Generation Core Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® Z370
  • Memory
    4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
    Maximum shared memory of 1024 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
  • Multi-GPU Support
    Supports NVIDIA® 2-Way SLI™ Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
    1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    4 x PCIe 3.0/2.0 x1
  • Storage
    Intel® Z370 Chipset :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*2
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*3
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Optane™ Memory Ready *4
  • LAN
    Intel® I219V
    Anti-surge LANGuard
    ROG GameFirst Technology
  • Wireless Data Network
    Wi-Fi 802.11 a/b/g/n/ac
    Supports dual band frequency 2.4/5 GHz
    Supports MU-MIMO
  • Bluetooth
    Bluetooth V4.2
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual Headphone Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - Supports up to 32-Bit/192kHz playback *5
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Optical S/PDIF out port(s) at back panel
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Sonic Radar III
    - Sonic Studio III
  • USB Ports
    Intel® Z370 Chipset :
    6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® Z270 Chipset :
    6 x USB 2.0 port(s)
    ASMedia® USB 3.1 Gen 2 controller : *6
    1 x USB 3.1 Gen 2 front panel connector port(s)
    ASMedia® USB 3.1 Gen 2 controller :
    2 x USB 3.1 port(s) (Type-A + USB Type-CTM, Support 3A power output)
  • ROG Exclusive Features
    ROG RAMCache II
    ROG CPU-Z
    ROG CloneDrive
    Overwolf
    GameFirst IV
    ROG Aura
    - Aura Lighting Control
    - Aura RGB Strip Headers
  • Special Features
    OC Design - ASUS PRO Clock Technology
    - Full BCLK range for extreme overclocking performance
    5-Way Optimization by Dual Intelligent Processors 5
    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
    TPU
    - Auto Tuning, TurboV, GPU Boost
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
    Gamer's Guardian:
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    - SafeSlot
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - ESD Guards
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS USB BIOS Flashback
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Gaming Aesthetics :
    - 3D printing friendly
    - AURA-RGB Lighting
    Digi+VRM
    Turbo APP
    M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
  • Back I/O Ports
    1 x DVI-D
    1 x DisplayPort
    1 x HDMI
    0 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 2 Type-A + USB Type-CTM
    2 x USB 3.1 Gen 1 (blue)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
  • Internal I/O Ports
    1 x Aura Addressable Strip Header(s)
    1 x AAFP connector
    2 x RGB Header(s)
    2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
    6 x SATA 6Gb/s connector(s)
    1 x M.2_FAN connector
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x System panel(s) (Chassis intrusion header is inbuilt)
    1 x 5-pin EXT_FAN(Extension Fan) connector
    1 x Thermal sensor connector(s)
    1 x CPU OV
    1 x Clear CMOS jumper(s)
    1 x 14-1 pin TPM connector
    1 x COM port header
    1 x AIO PUMP Header
    3 x 3D Mount screw port(s)
    1 x USB 3.1 Gen 2 front panel connector
  • Accessories
    User's manual
    ASUS Q-Shield
    1 x ASUS Fan Holder
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x CPU installation tool
    1 x Supporting DVD
    1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
    1 x CABLE TIE BLACK
    1 x SLI HB BRIDGE(2-WAY-M)
    1 x ROG Strix stickers
    1 x 10-in-1 ROG cable label
    ROG Fan Label
    1 x ROG Door Hanger(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    1 x Thermistor cable(s)
    1 x 3D printing mount package
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
  • Manageability
    WfM2.0, DMI3.0, WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays.
    *2 The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
    *3 The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use SATA devices.
    *4 Intel® Optane Technology only supported when using 8th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
    *5 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
    *6 The USB 3.1 front panel connector shares bandwidth with PCIE_x1_2 and PCIE_x1_4. If the USB 3.1 front header is connected, PCIE_x1_2 and PCIE_x1_4 will be
    disabled.
