GTX 1050 Ti |
| NVIDIA CUDA® Cores |
768 |
| Base Clock (MHz) |
1290 |
| Boost Clock (MHz) |
1392 |
| Memory Spec: |
|
| Memory Speed |
7 Gbps |
| Standard Memory Config |
4 GB GDDR5 |
| Memory Interface Width |
128-Bit |
| Memory Bandwidth (GB/sec) |
112 |
| Technology Support: |
|
| Simultaneous Multi-Projection |
Yes |
| VR Ready |
No |
| NVIDIA Ansel |
Yes |
| NVIDIA SLI® Ready |
No |
| NVIDIA G-Sync™-Ready |
Yes |
| NVIDIA GameStream™-Ready |
Yes |
| NVIDIA GPU Boost™ |
3 |
| Microsoft DirectX |
12 API with feature level 12_1 |
| Vulkan API |
Yes |
| OpenGL |
4.5 |
| Bus Support |
PCIe 3.0 |
| OS Certificates |
Windows 7-101, Linux, FreeBSDx86 |
| Display Support: |
|
| Maximum Digital Resolution1 |
7680x4320@60Hz |

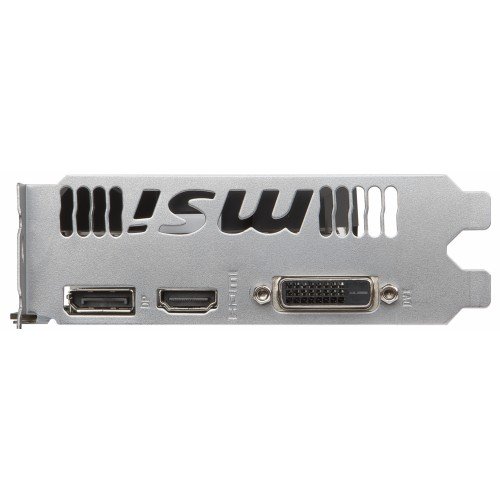

| Standard Display Connectors |
DP 1.42, HDMI 2.0b, DL-DVI |
| Multi Monitor |
Yes |
| HDCP |
2.2 |
| Graphics Card Dimensions:: |
|
| Height |
4.38 |
| Length |
5.7 |
| Width |
2 Slot |
| Thermal and Power Specs:: |
|
| Maximum GPU Temperature (in C) |
97 |
| Graphics Card Power (W) |
75 W |
| Recommended System Power(W)3 |
300 W |
| Supplementary Power Connectors |
None |
| |
|
| 1 - Windows 10 requires November 2015 update or newer. |
| |
|
| 2 - 7680x4320 at 60Hz RGB 8-bit with dual DisplayPort connectors or 7680x4320 at 60 Hz YUV420 8-bit with on DisplayPort 1.3 connector. |
| |
|
| 3 - DisplayPort 1.2 Certified, DisplayPort 1.3/1.4 Ready |
| |
|
| 4 - Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration. |
