nVIDIA GeForce GTX 1080 8GB PCI-E 3.0 Ready
| Manufacturer | nVidia |
| Model | GTX 1080 |
| Memory Amount | 8GB |
| Core Clock | 1607-1733 MHz |
| Memory Clock | 10000 MHz |
| Connections | 2xDVI, 1xHDMI 2.0, 1xDP 1.4 |

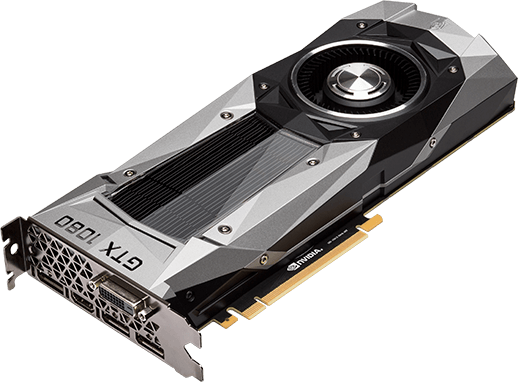

Pictures are for illustrative purposes only!
Brands and models can vary, so some clock speeds or features may differ from listed. Please call if you need more info.
GPU Engine Specs:
2560NVIDIA CUDA® Cores
1607Base Clock (MHz)
1733Boost Clock (MHz)
Memory Specs:
10 GbpsMemory Speed
8 GB GDDR5XStandard Memory Config
256-bitMemory Interface Width
320Memory Bandwidth (GB/sec)
Technology Support:
Multi-Projection- Yes
VR Ready- Yes
NVIDIA Ansel - Yes
SLI HB Bridge SupportedNVIDIA SLI® Ready1 - Yes
NVIDIA G-SYNC™-Ready - Yes
NVIDIA GameStream™-Ready - Yes
NVIDIA GPU Boost™- 3.0
12 API with feature level 12_1Microsoft DirectX
Vulkan API - Yes
OpenGL- 4.5
Bus Support -PCIe 3.0
Windows 7-10, Linux, FreeBSDx86OS Certification
Display Support:
7680x4320@60HzMaximum Digital Resolution1
DP 1.42, HDMI 2.0b, DL-DVIStandard Display Connectors
Multi Monitor -Yes
HDCP -2.2
Graphics Card Dimensions:
Height - 4.376"
Length - 10.5"
SlotWidth - 2
Thermal and Power Specs:
Maximum GPU Temperature (in C) - 94
Graphics Card Power (W) - 180 W
Recommended System Power (W)3 - 500 W
Supplementary Power Connectors - 8-Pin
1 - 7680x4320 at 60 Hz RGB 8-bit with dual DisplayPort connectors or 7680x4320 at 60 Hz YUV420 8-bit with one DisplayPort 1.3 connector.
2 - DisplayPort 1.2 Certified, DisplayPort 1.3/1.4 Ready.
3 - Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.
