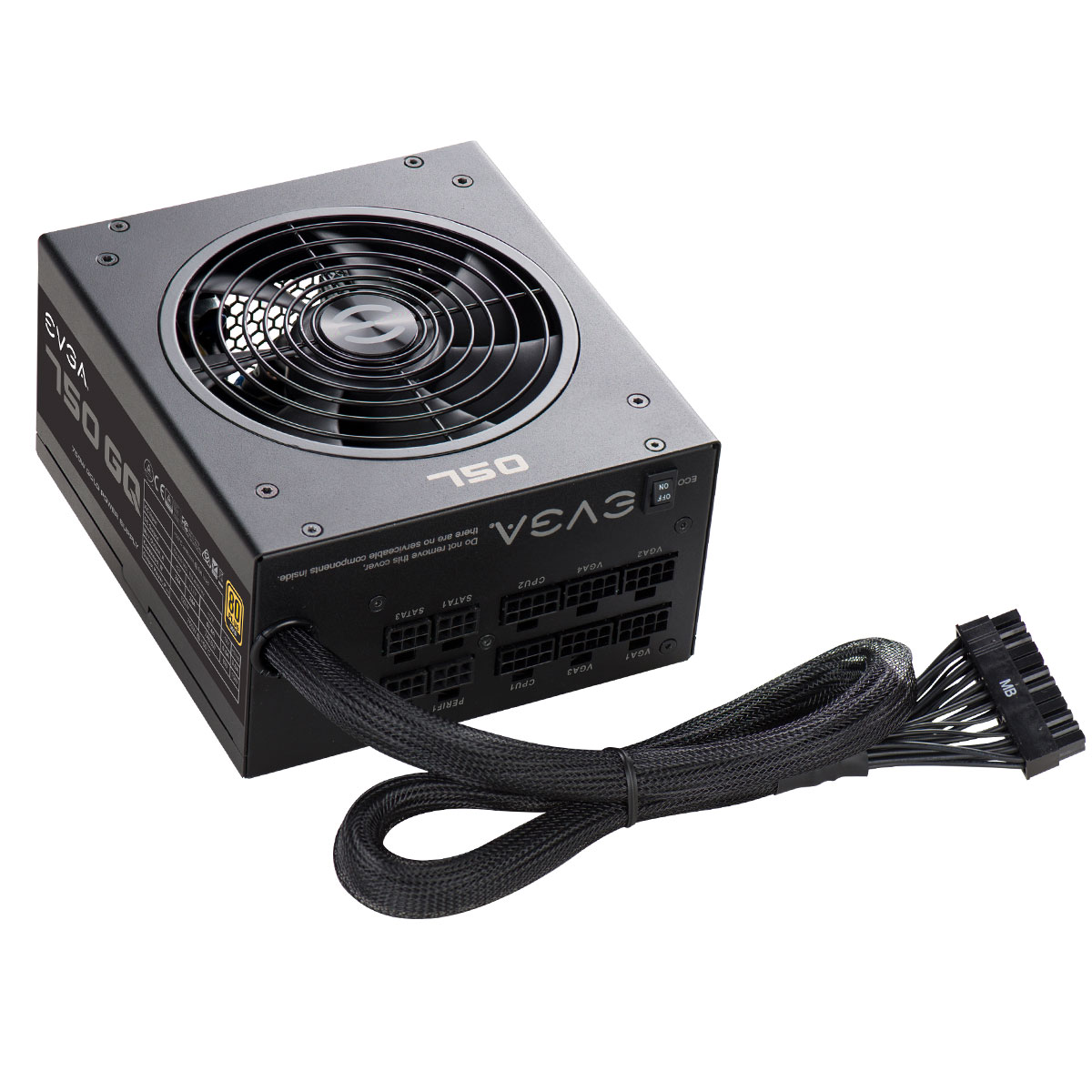

750W PSU - EVGA GQ Gold - Modular - 90% Efficiency (High Gaming)
| Power Rating | 750W |
| Cooling | 120mm Fan |
| SATA Connectors | 9 |
| Molex Connectors | 3 |
| PCI-E Power | 6 x 6+2-Pin |
| CE Approved | Yes |
| Voltage Range | 100 - 240V |
Cable Length
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 650mm (m) |
| PCIE Cable | 2x 650mm, 750mm, 2x 650mm (m) |
| SATA Cable | 3x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm (m) |
| Floppy Adapter | 1x 100mm (m) |
| AC Power | 1x 1530mm (m) |
| Modular Cable Type | Modular |
Connector Quantity
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin (4+4) |
| PCIE | 6x 8pin (6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 3x |
| Floppy | 2x |
Power Specs
| AC Input | 100 - 240 VAC, 10A, 50 - 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 24A | 24A | 62.4A | 3A | 0.5A |
| 748.8W | |||||
| 120W | 748.8W | 15W | 6W | ||
| Total | 750W @ +50C | ||||
Additional Details
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 7 lbs |
| Size | 85mm (H) x 150mm (W) x 165mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
