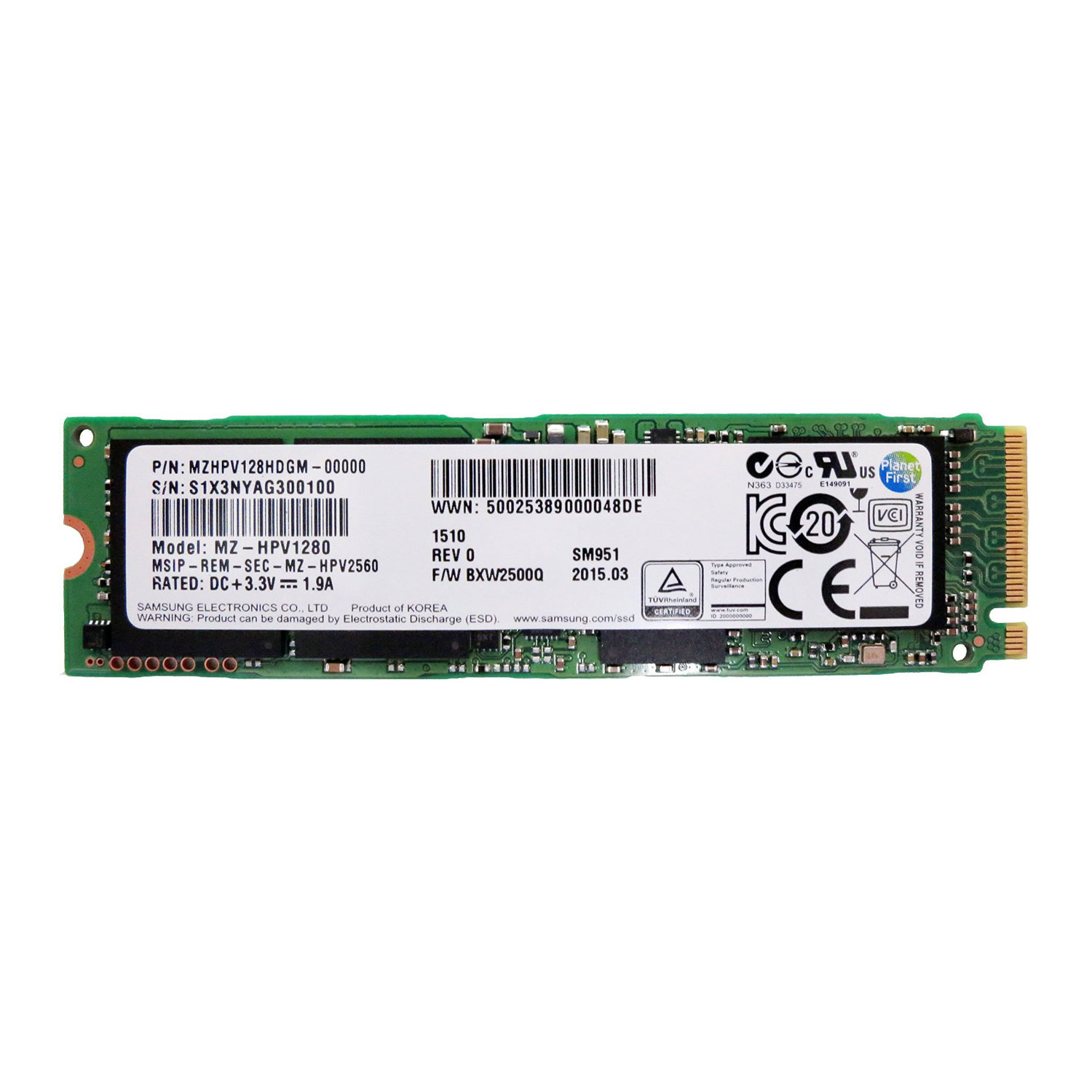

128GB Samsung SM951 nvme M.2 2280 PCIe
| Manufacturer | SAMSUNG |
| Model | SM951 nvme |
| Capacity | 128GB |
| Interface Type | M.2 |
| Max Read | 2000MB/s |
| Max Write | 650MB/s |
World Class Performance in a Tiny Form Factor
The Samsung SM951 128GB M.2 PCIe SSD (NVMe model) is the new performance leader in M.2 form factor SSD's, providing up to 2000MB/s read and 650MB/s write sequential data transfer rates.
• Extreme performance - up to 2000/650 sequential read/write data transfer rates
• PCIe 3.0 device, backwards compatible with PCIe 2.0
• Small M.2 form factor plugs straight into your PCIe-based M.2 socket with no additional cables required
Please note: NVMe Compatible Motherboard is required to use this SSD
The Samsung SM951 128GB M.2 PCIe SSD (NVMe model) is the new performance leader in M.2 form factor SSD's, providing up to 2000MB/s read and 650MB/s write sequential data transfer rates.
• Extreme performance - up to 2000/650 sequential read/write data transfer rates
• PCIe 3.0 device, backwards compatible with PCIe 2.0
• Small M.2 form factor plugs straight into your PCIe-based M.2 socket with no additional cables required
Please note: NVMe Compatible Motherboard is required to use this SSD
Features
• PCIe Gen3 8Gb/s Interface, up to 4 Lanes
• Compliant with PCI Express Base Specification Rev. 3.0
• Compliant with NVMe Express specification. Rev.1.1a
• Power Saving Modes:
- Supporting APST
- Supporting L1.2 Mode
• Support Admin & NVM Command Set
• End-to-End Data Protection
• RoHS Compliant
• Support up to 1 Namespaces
• Support up to 8 I/O Queues
• Support up to 16K Queue entries for each I/O Queue
• Compliant with PCI Express Base Specification Rev. 3.0
• Compliant with NVMe Express specification. Rev.1.1a
• Power Saving Modes:
- Supporting APST
- Supporting L1.2 Mode
• Support Admin & NVM Command Set
• End-to-End Data Protection
• RoHS Compliant
• Support up to 1 Namespaces
• Support up to 8 I/O Queues
• Support up to 16K Queue entries for each I/O Queue
Technical Specification General
- Manufacturer: Samsung
- Capacity: 128GB
- Edition: SM951
- Form Factor: M.2 (22x80)
- Height: 3.73 mm
- Interface: PCIe 3.0 (x4)
- Host Controller Interface: NVMe
- Controller: Flash Memory Type:
- MLC NAND
- Max. Read:2000 MB/s
- Max. Write:650 MB/s
- DRAM Cache Memory: N/A
- DRAM Cache Memory Type:
- Max. Random Read 4K: 300000 IOPS
- Max. Random Write 4K: 83000 IOPS
- Latency: N/A
- Special Features:
- Power Consumption (active): 6.5
- Max. Endurance Rating:
- MTBF:
- Max. Operating Vibration:
- Max. Non-operating Vibration:
- Max. Operating Shock:
- Max. Non-operating Shock:
Connectivity: 1 x M.2 PCIe - OS Support:
- Bracket: N/A
