£70.00
Current Stock Level
T/TAKE Core V31 - Black/Window
| Motherboard Support | Micro & Standard ATX |
| External 5.25" Drive Bays | 2 |
| External 3.5" Drive Bays | 1 (Converted 5.25") |
| Internal 3.5" | 3 |
| Internal 2.5" | 2 |
| Rear Cooling | 1 x 120mm |
| Front Cooling | 1 x 120mm (Optional) |
| Top/Bottom Cooling | 3 x 120mm or 3 x 140mm top, 2 x 120mm bottom (Optional) |

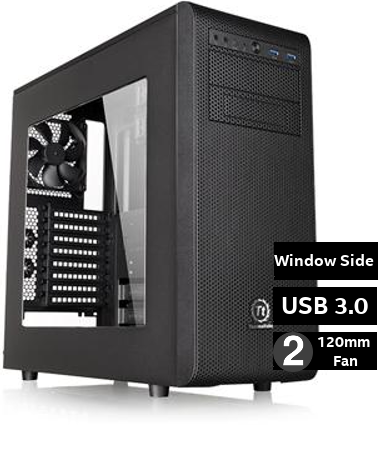

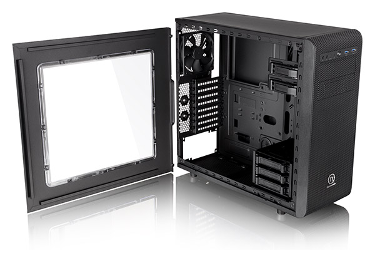

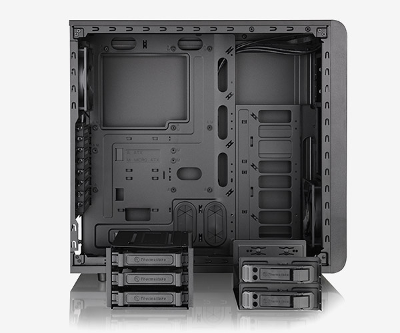

Thermaltake Core V31 Window Mid-tower Chassis
The new Thermaltake Core V31 mid-tower chassis, a new addition to the Core Series, which has now arrived following the launch of Core V71, Core V1, and Core V51, while retaining the curved metal mesh appearance, it delivers an outstanding cooling performance with the compatibility for the extensive DIY/AIO LCS, and the air cooling units that the series has become renowned for. Core V31 is an enthusiast’s grade mid-tower chassis creating unprecedented space for high-end hardware and liquid cooling expansion, supporting the latest ATX, Micro ATX, Mini-ITX motherboards, and all high-end GPU cards.
| Model | Core V31 |
| P/N | CA-1C8-00M1WN-00 |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 470 x 208 x 506 mm (18.5 x 8.2 x 19.9 inch) |
| Net Weight | 7.1 kg / 15.7 lb |
| Side Panel | Transparent Window |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Front (intake) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) |
| Drive Bays | -Accessible : 2 x 5.25’’, 1 x 3.5’’ (Converted from one 5.25” drive bay) -Hidden : 3 x 3.5" or 3 x 2.5" 2 x 2.5" (2 behind the M/B tray) |
| Expansion Slots | 8 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Ports | USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
| Fan Support | Front: 1 x 120mm or 2 x 120mm 1 x 140mm or 2 x 140mm Top: 1 x 120mm or 2 x 120mm or 3 x 120mm 1 x 140mm or 2 x 140mm or 3 x 140mm Rear: 1 x 120mm Bottom: 1 x 120mm or 2 x 120mm |
| Radiator Support | Front: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm Top: 1 x 120mm or 1 x 240mm or 1 x 360mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 155mm VGA length limitation: 278mm(with HDD rack) 420mm(without HDD rack) PSU length limitation: 180mm (With Bottom Fan) 220mm (Without Bottom Fan) |
* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
