£55.00



Current Stock Level

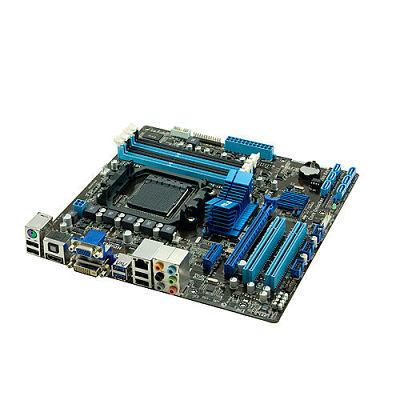

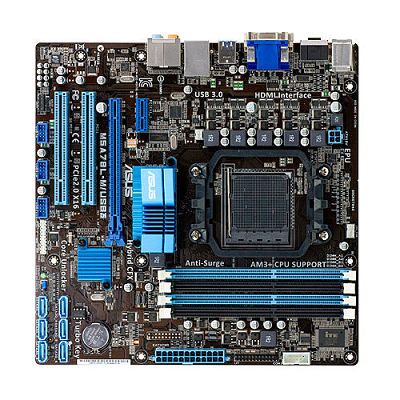

ASUS M5A78L-M/USB3 Featuring AMD 760 Chipset




Manufacturer Asus
Model M5A78L-M/USB3
Socket Type & Form AM3+ / Micro-ATX
Chipset AMD 760G
SATA Ports 6 x 3Gb/s
USB Ports 2 x USB3 & 4 x USB2
Graphics Connectors 1xDVI, 1xHDMI, 1xD-Sub
RAM Slots 4 x DIMM, MAX 32GB DDR3



AM3+ based Motherboard with EPU power optimization.

  • AM3+ CPU Support Ready
  • Turbo Key- Touch-n-Boost!
  • ASUS EPU- System Level Energy Saving
  • Anti-Surge-Full-time Power Guardian-Make System Free From Risk
  • Core Unlocker-Unleash True Core Performance Intelligently
  • ALL solid capacitor - 100% All High-quality Conductive Polymer Capacitors



  • CPU
    AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
    Supports CPU up to 140 W
    AMD Cool 'n' Quiet™ Technology
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD 760G (780L)/SB710
  • Memory
    4 x DIMM, Max. 32GB, DDR3 2000(O.C.)/1866(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
    * AMD FX Series CPU on this motherboard supports up to DDR3 1866MHz as its standard memory frequency.
    * AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz.
  • System Bus
    Up to 5.2 GT/s HyperTransport™ 3
  • Graphic
    Integrated ATI Radeon™ HD 3000 GPU
    Multi-VGA output support : HDMI/DVI/RGB ports *1
    - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
    - Supports RGB with max. resolution 2560 x 1440 @ 75 Hz
    Maximum shared memory of 1024 MB
    Hybrid CrossFireX™ Support
  • Expansion Slots
    1 x PCIe x16
    1 x PCIe x1
    2 x PCI
  • Storage
    Built-in Controller :
    6 x SATA 3Gb/s port(s), blue
    Support Raid 0, 1, 10, JBOD
  • LAN
    Realtek®, 1 x Gigabit LAN Controller(s)
  • Audio
    VIA VT1708S 8-Channel High Definition Audio CODEC
  • USB Ports
    Built-in Controller :
    10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
    Built-in Controller :
    2 x USB 3.0 port(s) (2 at back panel, blue)
  • Overclocking Features
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
  • Special Features
    ASUS EPU :
    - EPU
    Turbo Key
    Core Unlocker
    ASUS Exclusive Features :
    - Ai Charger
    - Anti-Surge
    ASUS Quiet Thermal Solution :
    - ASUS Q-Fan
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 2

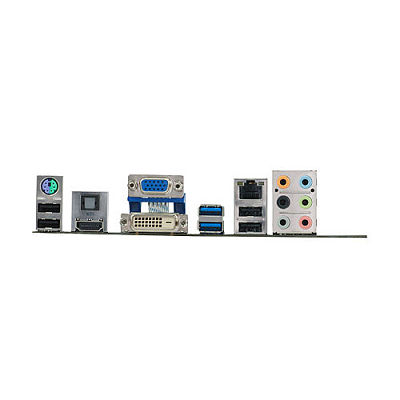

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.0
    4 x USB 2.0
    1 x Optical S/PDIF out
    6 x Audio jack(s)
  • Internal I/O
    3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    1 x COM port(s) connector(s)
    6 x SATA 3Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x parallel port connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 3Gb/s cable(s)
  • BIOS
    16 Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.5, ACPI V2.0a
  • Support Disc
    Drivers
    ASUS PC Probe II
    ASUS Update
    Anti-virus software (OEM version)
  • Form Factor
    uATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
  • Note
    *1: Support dual VGA output: HDMI & RGB, DVI & RGB.
    *2: Refer to www.amd.com for the Hybrid CrossFireX selected GPUs.
