£170.00



Current Stock Level

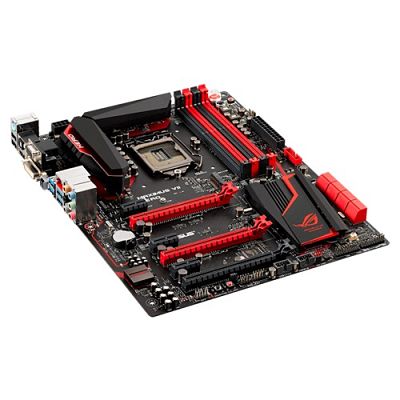

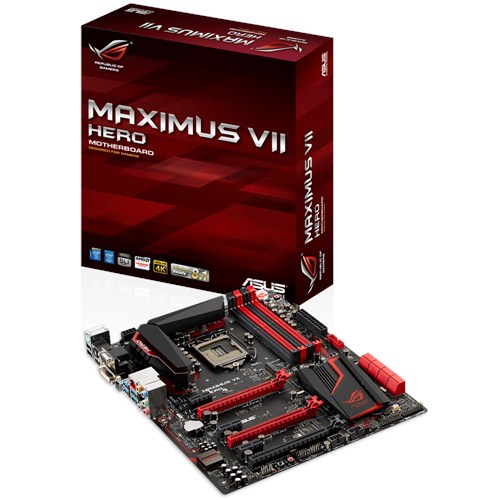

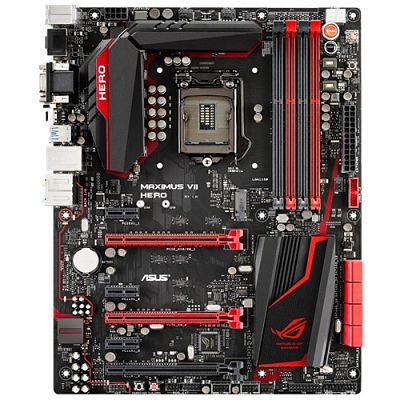

ASUS ROG Maximus VII Hero - USB2.0, USB3.0, SATA6 + XFIRE/SLI




Manufacturer Asus
Model Maximum VII Hero
Socket Type & Form 1150 / ATX
Chipset Intel Z97
SATA Ports 8 x 6Gb/s + 1 x M.2
USB Ports 4 x USB3 & 2 x USB2
Graphics Connectors 1xDVI, 1xHDMI, 1xD-Sub
RAM Slots 4 x DIMM, MAX 32GB DDR3



ROG high-value gaming ATX-board with brilliant performance and exclusive game-boosting features

  • Intel® LGA1150 4th, New 4th & 5th-Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready
  • Intel® Z97 Express Chipset with M.2 support (up to 10Gb/s data-transfer)
  • Intel™ Ethernet + LANGuard + GameFirst III –This is game networking taken to the next level. This is ROG
  • SupremeFX 2014 + Radar II – New and improved audio that’s beyond compare
  • KeyBot + TrueVolt USB - Instant keyboard upgrade and rock-steady 5V USB supply
  • USB UEFI BIOS and Secure Erase - Award-winning simplicity and factory-fresh conditioning for superb performance
  • World’s first dual-color PCB with a matte black and red finish



  • CPU
    Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 22 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® Z97
  • Memory
    4 x DIMM, Max. 32GB, DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 2000 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 2000 @ 60 Hz
    Maximum shared memory of 512 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
  • Multi-GPU Support
    Supports NVIDIA® Quad-GPU SLI™ Technology
    Supports AMD Quad-GPU CrossFireX™ Technology
  • Expansion Slots
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red)
    1 x PCIe 2.0 x16 (x4 mode, black) *1
    3 x PCIe 2.0 x1 *2
  • Storage
    Intel® Z97 chipset :
    6 x SATA 6Gb/s port(s), red
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3
    1 x M.2 Socket 3, black, with M Key, type 2260/2280 storage devices support (PCIE mode)
    ASMedia® PCIe SATA controller : *4
    2 x SATA 6Gb/s port(s), red
  • LAN
    Intel® I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST III
    Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
    Anti-surge LANGuard
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - ELNA premium audio capacitors
    - Blu-ray audio layer Content Protection
    - DTS Connect
    - Optical S/PDIF out port(s) at back panel
    - Sonic SoundStage
    - Sonic SenseAmp
    - Sonic Studio
    - Sonic Radar II
  • USB Ports
    Intel® Z97 chipset :
    6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® Z97 chipset : *5
    7 x USB 2.0/1.1 port(s) (2 at back panel, black, 5 at mid-board)
  • Overclocking Features
    Extreme Engine Digi+ III :
    - 8 + 2 phase power design
    - NexFET™ Power Block MOSFET
    - 60A Ferrite Chokes
    - 10K Black Metallic Capacitors
    KeyBot
    - CPU Level Up
    - XMP
    - Direct Key
    UEFI BIOS features :
    - GPU.DIMM Post
    - Tweakers' Paradise
    - ROG SSD Secure Erase
    - Graphic Card Information Preview
    ROG RAMDisk
    GameFirst III
    Extreme Tweaker
  • Special Features
    ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :

    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - 10K Black Metallic Capacitors
    - Stainless Steel Back I/O
    ASUS Exclusive Features :
    - MemOK!
    - AI Suite 3
    - Ai Charger
    - USB Charger+
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS EZ DIY :
    - ASUS O.C. Profile
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS USB BIOS Flashback
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
    Media Streamer
  • Operating System Support
    Windows® 8.1
    Windows® 8
    Windows® 7

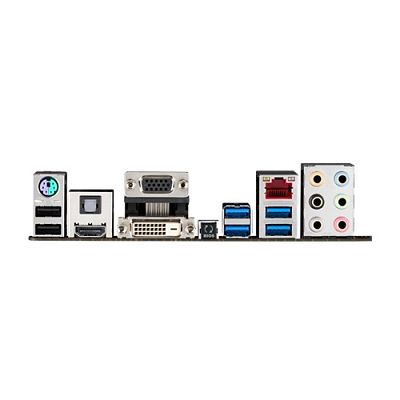

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.0 (blue)
    2 x USB 2.0
    1 x Optical S/PDIF out
    6 x Audio jack(s)
    1 x USB BIOS Flashback Button(s)
  • Internal I/O
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
    1 x M.2 Socket 3 for M Key, type 2260/2280 devices
    1 x TPM header
    8 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    4 x Chassis Fan connector(s) (4 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s) (Q-Connector)
    1 x MemOK! button(s)
    1 x Thermal sensor connector(s)
    1 x Power-on button(s)
    1 x Reset button(s)
    1 x Clear CMOS button(s)
    1 x ROG extension (ROG_EXT) header(s)
    1 x KeyBot Button
    1 x Sonic SoundStage Button
  • Accessories
    User's manual
    ASUS Q-Shield
    6 x SATA 6Gb/s cable(s)
    1 x SLI bridge(s)
    1 x Q-connector(s) (2 in 1)
    1 x 12 in 1 ROG Cable Label(s)
    1 x ROG Door Hanger(s)
  • BIOS
    64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-Language BIOS
  • Manageability
    WfM 2.0, DMI 2.7, WOL by PME, PXE
  • Support Disc
    Drivers
    ROG GameFirst III
    ROG RAMDisk
    ROG CPU-Z
    ROG Mem TweakIt
    Kaspersky® Anti-Virus
    DAEMON Tools Pro Standard
    ASUS WebStorage
    Home Cloud
    ASUS Utilities
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1: The PCIe 2.0 x16 slot (PCIEX4_3) shares bandwith with PCIe 2.0 x1 and M.2 slot. The default setting is Auto Mode, which automatically optimizes the system bandwidth. If you install a PCIe 2.0 x4 device, the system will automatically detect and disable PCIe 2.0 x1 and M.2 slot.
    *2: The PCIe 2.0 x1 slots (PCIEX1_1/2/3) will be disabled when PCIe 2.0 x16 slot (PCIEX4_3 ) operates under x4 speed or M.2 mode.
    *3: The supported functions depends on the CPU installed.
    *4: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
    *5: 1 x USB2.0 ports at mid-board shares with ROG extension (ROG_EXT) port.
