£160.00



Current Stock Level

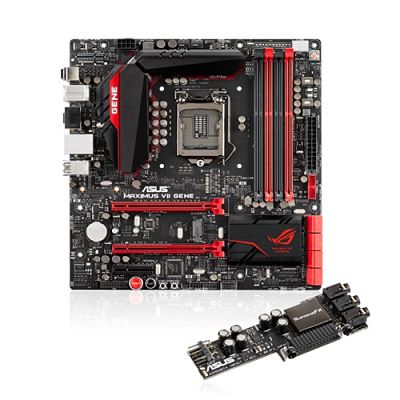

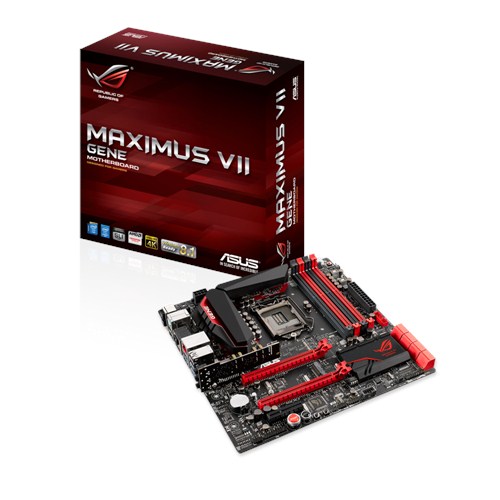

ASUS ROG Maximus VII Gene - USB2.0, USB3.0, SATA6 + XFIRE/SLI




Manufacturer Asus
Model Maximus VII Gene
Socket Type & Form 1150 / Micro ATX
Chipset Intel Z97
SATA Ports 8 x 6Gb/s + 1 x M.2
USB Ports 4 x USB3 & 4 x USB2
Graphics Connectors 1xHDMI
RAM Slots 4 x DIMM, MAX 32GB DDR3



Most powerful Z97 mATX gaming board with fully-loaded specs and ROG-exclusive features

  • Intel® LGA1150 4th, New 4th & 5th-Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready
  • Intel® Z97 Express Chipset with M.2 support (up to 10Gb/s data-transfer)
  • Intel™ Ethernet + LANGuard + GameFirst III –This is game networking taken to the next level. This is ROG

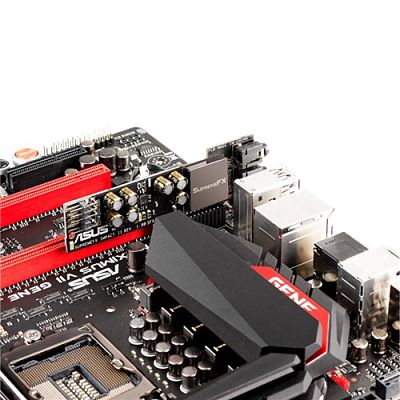

  • SupremeFX Impact II + Radar II – New and improved discrete audio card that’s beyond compare
  • KeyBot + TrueVolt USB - Instant keyboard upgrade and rock-steady 5V USB supply
  • USB UEFI BIOS and Secure Erase - Award-winning simplicity and factory-fresh conditioning for superb performance
  • World’s first dual-color PCB with a matte black and red finish



  • CPU
    Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 22 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® Z97
  • Memory
    4 x DIMM, Max. 32GB, DDR3 3300(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • Multi-GPU Support
    Supports NVIDIA® Quad-GPU SLI™ Technology
    Supports AMD Quad-GPU CrossFireX™ Technology
  • Expansion Slots
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
    1 x PCIe 2.0 x4 *1
    1 x mini-PCIe 2.0 x1
  • Storage
    Intel® Z97 chipset :
    6 x SATA 6Gb/s port(s), red
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *2
    1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (PCIE mode)
    ASMedia® ASM1061 controller : *3
    2 x SATA 6Gb/s port(s), red
  • LAN
    Intel® I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST III
    Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
    Anti-surge LANGuard
  • Audio
    ROG SupremeFX Impact II 8-Channel High Definition Audio CODEC *4
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - ELNA premium audio capacitors
    - Blu-ray audio layer Content Protection
    - DTS Connect
    - Optical S/PDIF out port(s) at back panel
    - Sonic SoundStage
    - Sonic SenseAmp
    - Sonic Studio
    - Sonic Radar II
  • USB Ports
    Intel® Z97 chipset : *5
    4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
    Intel® Z97 chipset : *6
    7 x USB 2.0 port(s) (4 at back panel, black, 3 at mid-board)
    ASMedia® USB 3.0 controller :
    2 x USB 3.0 port(s) (2 at back panel, blue)
  • Overclocking Features
    Extreme Engine Digi+ III :
    - 8 + 2 phase power design
    - NexFET™ Power Block MOSFET
    - 60A Ferrite Chokes
    - 10K Black Metallic Capacitors
    ProbeIt
    KeyBot
    - CPU Level Up
    - XMP
    - Direct Key
    UEFI BIOS features :
    - GPU.DIMM Post
    - Tweakers' Paradise
    - ROG SSD Secure Erase
    - Graphic Card Information Preview
    ROG RAMDisk
    GameFirst III
    Extreme Tweaker
  • Special Features
    5-Way Optimization by Dual Intelligent Processors 5
    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - 10K Black Metallic Capacitors
    - Stainless Steel Back I/O
    ASUS Exclusive Features :
    - USB BIOS Flashback
    - MemOK!
    - AI Suite 3
    - Ai Charger+
    - USB Charger+
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS EZ DIY :
    - ASUS O.C. Profile
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS USB BIOS Flashback
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
    Media Streamer
  • Operating System Support
    Windows® 8.1
    Windows® 8
    Windows® 7

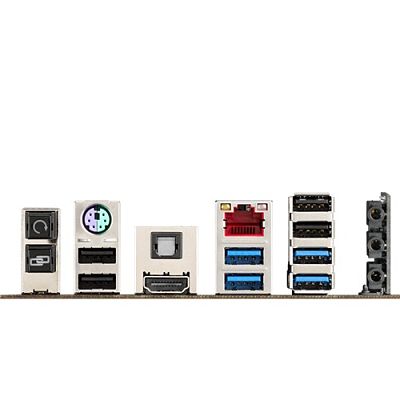

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.0 (blue)
    4 x USB 2.0 (one port can be switched to ROG Connect)
    1 x Optical S/PDIF out
    3 x Audio jack(s)
    1 x Clear CMOS button(s)
    1 x ROG Connect On/ Off switch(es)
  • Internal I/O
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
    1 x M.2 Socket 3 for M Key, type 2260/2280 devices
    1 x TPM header
    8 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s) (Q-Connector)
    1 x MemOK! button(s)
    10 x ProbeIt Measurement Points
    1 x Thermal sensor connector(s)
    1 x LN2 Mode header(s)
    1 x Power-on button(s)
    1 x Reset button(s)
    1 x ROG extension (ROG_EXT) header(s)
    1 x KeyBot Button
    1 x Sonic SoundStage Button
  • Accessories
    User's manual
    I/O Shield
    6 x SATA 6Gb/s cable(s)
    1 x SLI bridge(s)
    1 x Q-connector(s) (2 in 1)
    1 x 12 in 1 ROG Cable Label(s)
    1 x ROG Door Hanger(s)
  • BIOS
    64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-Language BIOS
  • Manageability
    WfM 2.0, DMI 2.7, WOL by PME, PXE
  • Support Disc
    Drivers
    ROG GameFirst III
    ROG RAMDisk
    ROG CPU-Z
    ROG Mem TweakIt
    Kaspersky® Anti-Virus
    DAEMON Tools Pro Standard
    ASUS WebStorage
    Home Cloud
    ASUS Utilities
  • Form Factor
    mATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
  • Note
    *1: The PCIe 2.0 x4 slot (PCIEX4_1) shares bandwith with mPCIe 2.0 x1 and M.2 slots. The default setting is in Auto mode that automatically optimizes the system bandwidth. If you install PCIe 2.0 x4 device, the system will automatically detect and disable mPCIe 2.0 x1 and M.2 slots.
    *2: The supported functions depends on the CPU installed.
    *3: These SATA ports are for data hard drives only. ATAPI devices are not supported.
    *4: 8-channel audio output is supported by jack-retasking using a chassis with HD audio module in the front panel.
    *5: Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under Windows® 8.1/8.
    *6: 1 x USB2.0 ports at mid-board (USB13) shares with ROG extension (ROG_EXT) port.
There are yet no reviews for this product.
