£180.00



Current Stock Level

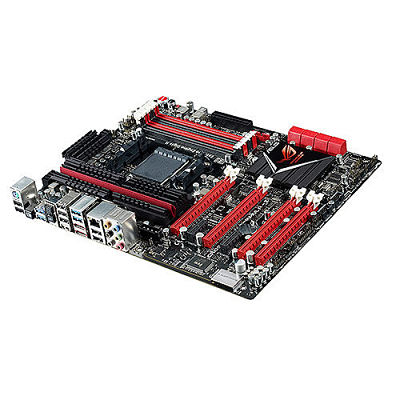

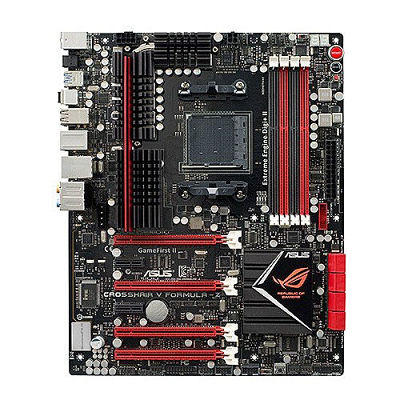

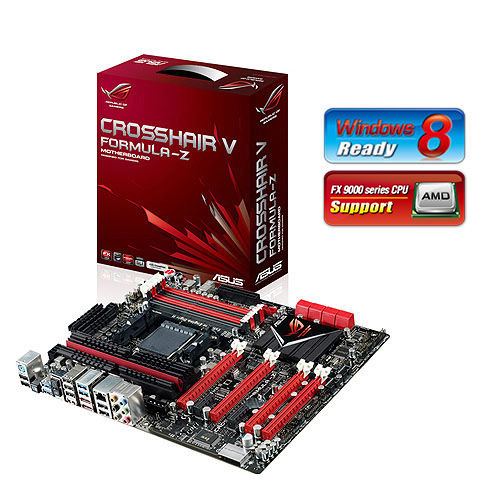

ASUS CROSSHAIR V FORMULA-Z




Manufacturer Asus
Model Crosshair V Formula-Z
Socket Type & Form AM3+ / ATX
Chipset AMD 990X
SATA Ports 8 x 6Gb/s
USB Ports 4 x USB3 & 8 x USB2
Graphics Connectors N/A
RAM Slots 4 x DIMM, MAX 32GB DDR3



Upgraded 990FX motherboard with exclusive ROG gaming audio and networking technologies

  • Windows 8 Ready – Assured Compatibility
  • Extreme Engine Digi+ II -- Powerful combination of analog and digital design elements
  • SupremeFX III -- Play with ultra-real cinematic in-game surround sound!
  • GameFirst II-- Put your frags first
  • 3-Way NIVDIA SLI AMD CrossFireX Technology
  • Intel Gigabit LAN -- Experience the fast network connectivity!
  • UEFI BIOS -- Flexible & Easy BIOS Interface
  • Supercharged Audio and Ultrafast LAN



  • CPU
    AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
    Supports AM3+ 32 nm CPU
    Supports CPU up to 8 cores
    Supports CPU up to 140 W
    AMD Cool ´n´ Quiet™ Technology
  • Chipset
    AMD 990FX/SB950
  • Memory
    4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
  • System Bus
    Up to 5.2 GT/s HyperTransport™ 3.0
  • Multi-GPU Support
    Supports NVIDIA® Quad-GPU SLI™ Technology
    Supports NVIDIA® 3-Way SLI™ Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8)
    1 x PCIe 2.0 x16 (x4 mode)
    2 x PCIe 2.0 x1
  • Storage
    AMD SB950 controller :
    6 x SATA 6Gb/s port(s), red
    Support Raid 0, 1, 5, 10
    ASMedia® ASM1061 controller :
    2 x SATA 6Gb/s port(s), red
    2 x eSATA 6Gb/s port(s), red,
  • LAN
    Intel®, 1 x Gigabit LAN Controller(s)
  • Audio
    SupremeFX III built-in 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - 1500 uF Audio Power Capacitor
    - Gold-plated jacks
    - Blu-ray audio layer Content Protection
    - DTS Ultra PC II
    - DTS Connect
    - Optical S/PDIF out port(s) at back panel
  • USB Ports
    ASMedia® USB 3.0 controller :
    6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
    AMD SB950 controller :
    12 x USB 2.0 port(s) (8 at back panel, black+white, 4 at mid-board)
  • Overclocking Features
    ROG Connect :
    - RC Diagram
    - RC Remote
    - RC Poster
    - GPU TweakIt
    Extreme Engine Digi+ II :
    - 8 + 2 phase power design
    - 2 -phase Memory power design
    UEFI BIOS features :
    - ROG BIOS Print
    - GPU.DIMM Post
    iROG
    Extreme Tweaker
    Overclocking Protection :
    - COP EX (Component Overheat Protection - EX)
    - ASUS C.P.R.(CPU Parameter Recall)
  • Special Features
    ASUS Power Design :
    - ASUS EPU
    TurboV
    ASUS Exclusive Features :
    - AI Suite II
    - Ai Charger+
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS O.C. Profile
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 3
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
  • Operating System Support
    Windows® 8.1
    Windows® 8
    Windows® 7
    Windows® Vista
    Windows® XP

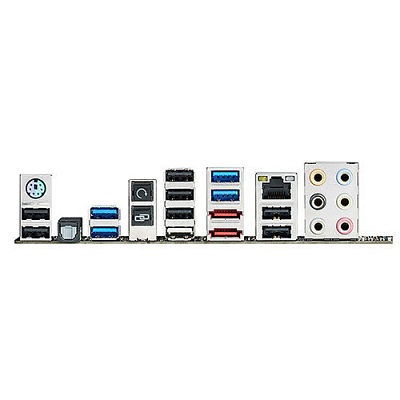

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    2 x eSATA 6Gb/s
    1 x LAN (RJ45) port(s)
    4 x USB 3.0
    8 x USB 2.0 (one port can be switched to ROG Connect)
    1 x Optical S/PDIF out
    6 x Audio jack(s)
    1 x Clear CMOS button(s)
    1 x ROG Connect On/ Off switch(es)
  • Internal I/O
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x TPM connector(s)
    8 x SATA 6Gb/s connector(s)
    2 x CPU Fan connector(s)
    3 x Chassis Fan connector(s)
    3 x Optional Fan connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x DirectKey Button(s)
    1 x DRCT header(s)
    8 x ProbeIt Measurement Points
    3 x Thermal sensor connector(s)
    1 x EZ Plug connector(s) (4-pin Molex power connector)
    1 x Power-on button(s)
    1 x Reset button(s)
    1 x Go Button(s)
    1 x FastBoot switch(es)
  • Accessories
    User's manual
    I/O Shield
    6 x SATA 6Gb/s cable(s)
    1 x 3-Way SLI bridge(s)
    1 x SLI bridge(s)
    1 x CrossFire cable(s)
    1 x Q-connector(s) (2 in 1)
    1 x ROG Connect cable(s)
    1 x 12 in 1 ROG Cable Label(s)
  • BIOS
    64Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a, Multi-Language BIOS
  • Manageability
    WOL by PME, WOR by PME, PXE
  • Support Disc
    Drivers
    GameFirst II
    Kaspersky® Anti-Virus
    DAEMON Tools Pro Standard
    ROG CPU-Z
    ASUS WebStorage
    ASUS Utilities (AI SUITE II/TurboV EVO/ASUS Update)
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
There are yet no reviews for this product.
