£150.00



Current Stock Level

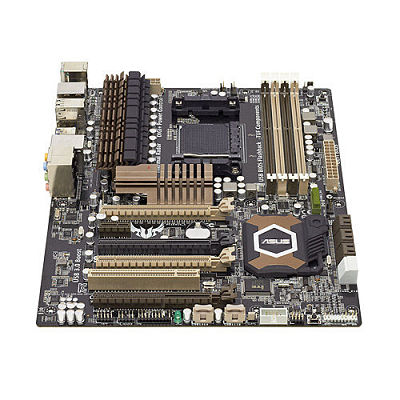

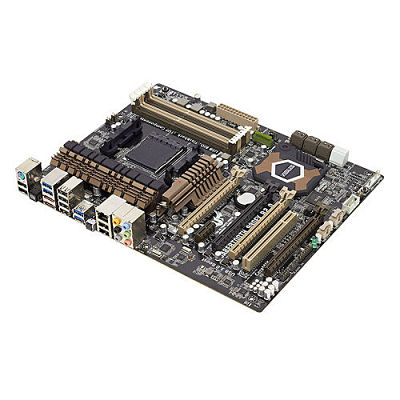

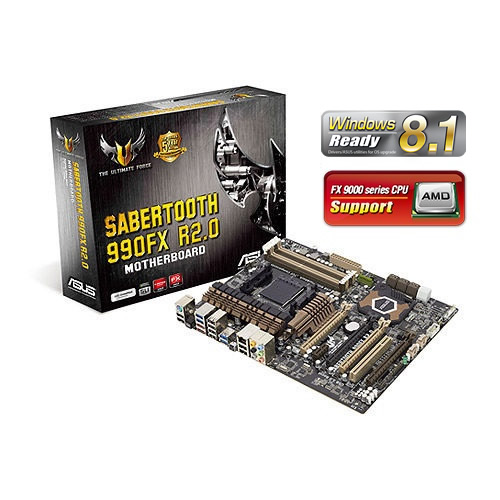

ASUS SABERTOOTH 990FX R2.0




Manufacturer Asus
Model Sabertooth 990FX R2.0
Socket Type & Form AM3+ / ATX
Chipset AMD 990FX
SATA Ports 8 x 6Gb/s
USB Ports 4 x USB3 & 8 x USB2
Graphics Connectors N/A
RAM Slots 4 x DIMM, MAX 32GB DDR3



AMD 990FX(AM3+) Military-Grade Motherboard with Aerospace-Grade CeraM!X Cooling Techology.

  • TUF CeraM!X Heatsink Coating Tech. - 50% Larger Area for Heat Dissipation with the Revolutionary Ceramics-coating Technology.
  • TUF Thermal Radar - Real Time Temp. Detection and Heat Removal
  • TUF Components [Alloy Choke, Cap. & MOSFET; Certified by Military-standard] - Certified for Tough Duty
  • New DIGI+ Power Control - All-New Digital Power Control for both CPU and DRAM
  • USB BIOS Flashback - Easy, Worry-free USB BIOS Flashback with Hardware-based Design
  • Remote GO! - One-stop PC Remote Control and Home Entertainment
  • Windows 8 Ready – Assured Compatibility



  • CPU
    AMD FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
    Supports AM3+ 32 nm CPU
    Supports CPU up to 8 cores
    Supports CPU up to 140 W
    AMD Cool 'n' Quiet™ Technology
  • Chipset
    AMD 990FX/SB950
  • Memory
    4 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
    * Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
  • System Bus
    Up to 5.2 GT/s HyperTransport™ 3.0
  • Multi-GPU Support
    Supports NVIDIA® Quad-GPU SLI™ Technology
    Supports AMD Quad-GPU CrossFireX™ Technology
  • Expansion Slots
    3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8) *1
    1 x PCIe 2.0 x16 (x4 mode, black)
    1 x PCIe 2.0 x1
    1 x PCI
  • Storage
    AMD SB950 controller :
    6 x SATA 6Gb/s port(s), brown
    Support Raid 0, 1, 5, 10
    ASMedia® PCIe SATA controller :
    2 x SATA 6Gb/s port(s), gray
    2 x eSATA 6Gb/s port(s), red
  • LAN
    Realtek® 8111F, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC892 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
    - Blu-ray audio layer Content Protection
    - ASUS Noise Filter
    - Optical S/PDIF out port(s) at back panel
  • USB Ports
    ASMedia® USB 3.0 controller :
    2 x USB 3.0/2.0 port(s) (2 at mid-board)
    ASMedia® USB 3.0 controller :
    4 x USB 3.0/2.0 port(s) (4 at back panel, blue)
    AMD SB950 controller :
    12 x USB 2.0/1.1 port(s) (8 at back panel, , 4 at mid-board)
  • Special Features
    TUF ENGINE! Power Design :
    - 8 +2 Digital Phase Power Design
    - TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard)
    - ASUS DIGI+ Power Control Utility
    - E.S.P. : Efficient Switching Power Design
    Ultimate COOL! Thermal Solution :
    - TUF CeraM!X Heatsink Coating Tech.
    - TUF Thermal Radar
    ASUS Exclusive Features :
    - Remote GO!
    - USB BIOS Flashback
    - MemOK!
    - AI Suite II
    - Ai Charger+
    - Anti-Surge
    - ESD Guards
    - Front Panel USB 3.0 Support
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - Network iControl
    - USB 3.0 Boost
    ASUS EZ DIY :
    - DirectKey
    - ASUS O.C. Profile
    - ASUS EZ Flash 2
    - ASUS MyLogo 2
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector

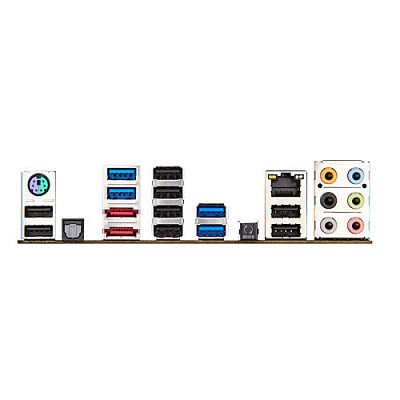

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    2 x eSATA 6Gb/s
    1 x LAN (RJ45) port(s)
    4 x USB 3.0 (blue)
    8 x USB 2.0
    1 x Optical S/PDIF out
    6 x Audio jack(s)
    1 x USB BIOS Flashback Button(s)
  • Internal I/O
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x TPM connector(s)
    1 x COM port(s) connector(s)
    8 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    4 x Chassis Fan connector(s) (4 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel connector(s)
    1 x System panel(s) (Q-Connector)
    1 x DirectKey Button(s)
    1 x DRCT header(s)
    1 x MemOK! button(s)
    1 x Clear CMOS jumper(s)
  • Accessories
    User's manual
    ASUS Q-Shield
    4 x SATA 6Gb/s cable(s)
    1 x SLI bridge(s)
    1 x Q-connector(s) (2 in 1)
    1 x TUF Certification card(s)
    1 x TUF 5 Year Warranty manual(s) (by region)
  • BIOS
    64 Mb Flash ROM, UEFI BIOS, PnP, SLP2.1, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
  • Support Disc
    Drivers
    Anti-virus software (OEM version)
    ASUS Update
    ASUS Utilities
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1: When running dual graphics cards, be sure to insert the card in the first and third PCIex16 slot to get the best performance.
