£90.00



Current Stock Level

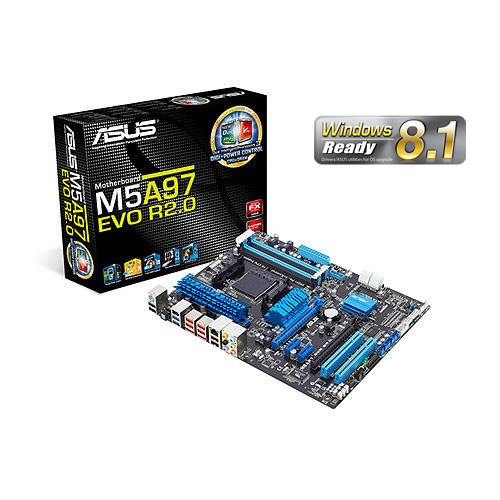

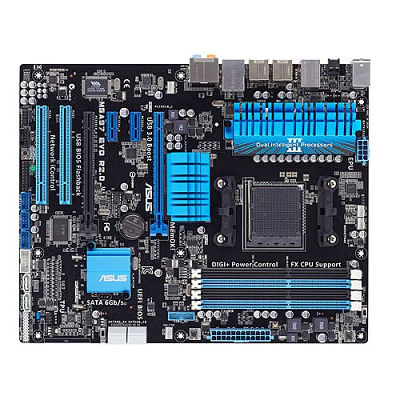

ASUS M5A97 EVO R2.0





Manufacturer Asus
Model M5A97 EVO R2.0
Socket Type & Form AM3+ / ATX
Chipset AMD 970
SATA Ports 6 x 6Gb/s
USB Ports 2 x USB3 & 8 x USB2
Graphics Connectors N/A
RAM Slots 4 x DIMM, MAX 32GB DDR3



CPU and DRAM Digital Power Design for a 100% Performance Boost on AMD 970 with Windows 8 Support

  • Dual Intelligent Processors 3 with New DIGI+ Power Control - Full Hardware Control. Total Performance Tuning.
  • Remote GO! - One-stop PC Remote Control and Home Entertainment
  • USB 3.0 Boost - Faster USB 3.0 Transmission with UASP
  • Network iControl - Real-time Network Bandwidth Control
  • DirectKey - A Dedicated Button to Access the BIOS Directly
  • USB BIOS Flashback - Easy, Worry-free USB BIOS Flashback with Hardware-based Design
  • UEFI BIOS - Flexible & Easy BIOS Interface
  • Windows 8 Ready – Assured Compatibility



  • CPU
    AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
    Supports AM3+ 32 nm CPU
    Supports CPU up to 8 cores
    Supports CPU up to 140 W
    AMD Cool 'n' Quiet™ Technology
  • Chipset
    AMD 970/SB950
  • Memory
    4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
    * Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
  • System Bus
    Up to 4.8 GT/s HyperTransport™ 3.0
  • Multi-GPU Support
    Supports AMD Quad-GPU CrossFireX™ Technology
  • Expansion Slots
    1 x PCIe 2.0 x16 (blue)
    1 x PCIe 2.0 x16 (x4 mode, black)
    2 x PCIe 2.0 x1
    2 x PCI
  • Storage
    AMD SB950 controller :
    6 x SATA 6Gb/s port(s), gray
    Support Raid 0, 1, 5, 10
    ASMedia® PCIe SATA controller :
    2 x eSATA 6Gb/s port(s), red
  • LAN
    Realtek® 8111F, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC892 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
    - Blu-ray audio layer Content Protection
    - DTS Ultra PC II
    - DTS Connect
    - ASUS Noise Filter
    - Optical S/PDIF out port(s) at back panel
  • IEEE 1394
    VIA® 6308P controller
    2 x IEEE 1394a port(s)
    (1 at mid-board, 1 at back panel)
  • USB Ports
    ASMedia® USB 3.0 controller :
    4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
    AMD SB950 controller :
    14 x USB 2.0/1.1 port(s) (8 at back panel, black+red, 6 at mid-board)
  • Overclocking Features
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
  • Special Features
    ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control :
    SMART DIGI+ :
    - Smart DIGI+ Key- Quickly delivers optimized VRM frequency, voltage and current for superior CPU/DRAM overclocking performance with one click.
    ASUS TPU :
    - Auto Tuning
    - TurboV
    - TPU switch
    ASUS EPU :
    - EPU
    - EPU switch
    ASUS Digital Power Design :
    - Industry leading Digital 6 +2 Phase Power Design
    - Industry leading Digital 2 Phase Power Design
    - CPU Power Utility
    - DRAM Power Utility
    ASUS Exclusive Features :
    - Remote GO!
    - USB BIOS Flashback
    - MemOK!
    - AI Suite II
    - Ai Charger+
    - Front Panel USB 3.0 Support
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - Network iControl
    - USB 3.0 Boost
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - DirectKey
    - Precision Tweaker 2
    - ASUS O.C. Profile
    - ASUS EZ Flash 2
    - ASUS MyLogo 2
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector

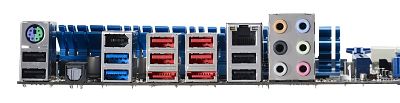

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    2 x eSATA 6Gb/s
    1 x IEEE 1394a
    1 x LAN (RJ45) port(s)
    2 x USB 3.0
    8 x USB 2.0 (one port can be switched to USB BIOS Flashback)
    1 x Optical S/PDIF out
    6 x Audio jack(s)
  • Internal I/O
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
    3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    1 x TPM connector(s)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x IEEE 1394a connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s) (Q-Connector)
    1 x DirectKey Button(s)
    1 x DRCT header(s)
    1 x MemOK! button(s)
    1 x TPU switch(es)
    1 x EPU switch(es)
    1 x Clear CMOS jumper(s)
    1 x USB BIOS Flashback button(s)
  • Accessories
    User's manual
    I/O Shield
    3 x SATA 6Gb/s cable(s)
    1 x Q-connector(s) (2 in 1)
  • BIOS
    64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    ASUS Update
    Anti-virus software (OEM version)
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
