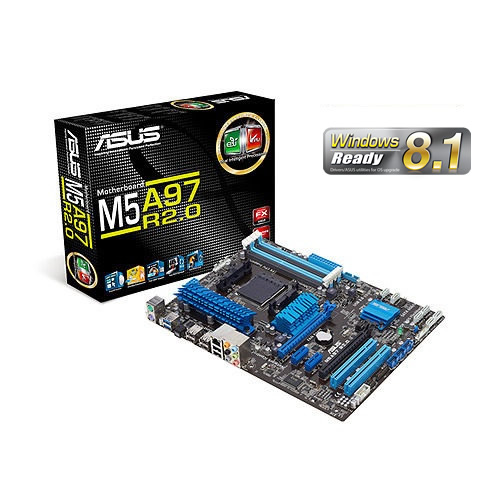

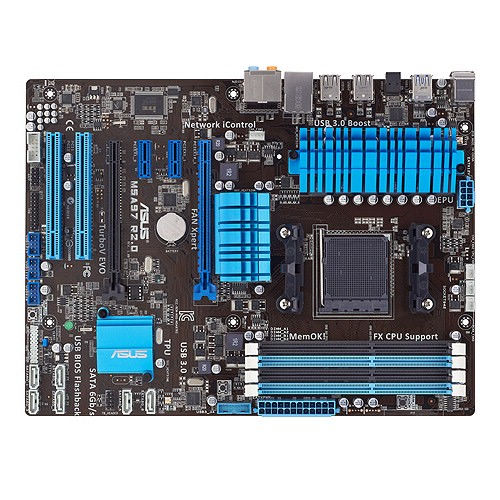

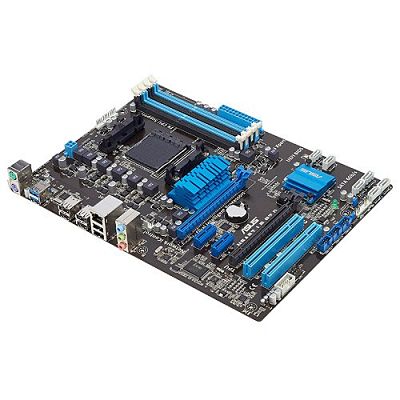

ASUS M5A97 R2.0
Manufacturer | Asus |
Model | M5A97 R2.0 |
Socket Type & Form | AM3+ / ATX |
Chipset | AMD 970 |
SATA Ports | 6 x 6Gb/s |
USB Ports | 2 x USB3 & 6 x USB2 |
Graphics Connectors | N/A |
RAM Slots | 4 x DIMM, MAX 32GB DDR3 |
ASUS Dual Intelligent Processors, Extreme USB 3.0 Transfer Speed, and Windows 8 on AMD 970
- Dual Intelligent Processors - TPU + EPU.
- Remote GO! - One-stop PC Remote Control and Home Entertainment
- USB 3.0 Boost - Faster USB 3.0 Transmission with UASP
- Network iControl - Real-time Network Bandwidth Control
- DirectKey - A Dedicated Button to Access the BIOS Directly
- USB BIOS Flashback - Easy, Worry-free USB BIOS Flashback with Hardware-based Design
- UEFI BIOS - Flexible & Easy BIOS Interface
- Windows 8 Ready – Assured Compatibility
- CPU
AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Supports AM3+ 32 nm CPU
Supports CPU up to 8 cores
Supports CPU up to 140 W
AMD Cool 'n' Quiet™ Technology - Chipset
AMD 970/SB950
- Memory
4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz. - System Bus
Up to 4.8 GT/s HyperTransport™ 3.0
- Multi-GPU Support
Supports AMD Quad-GPU CrossFireX™ Technology
- Expansion Slots
1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
2 x PCI - Storage
AMD SB950 controller :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10 - LAN
Realtek® 8111F, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- ASUS Noise Filter
- Optical S/PDIF out port(s) at back panel - USB Ports
ASMedia® USB 3.0 controller :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD SB950 controller :
12 x USB 2.0/1.1 port(s) (6 at back panel, black, 6 at mid-board) - Overclocking Features
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall) - Special Features
ASUS Dual Intelligent Processors - TPU & EPU :
ASUS TPU :
- Auto Tuning
- TurboV
ASUS EPU :
- EPU
ASUS Power Design :
- 4 +2 Phase Power Design
ASUS Exclusive Features :
- Remote GO!
- USB BIOS Flashback
- MemOK!
- AI Suite II
- Ai Charger+
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- DirectKey
- Precision Tweaker 2
- ASUS O.C. Profile
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :

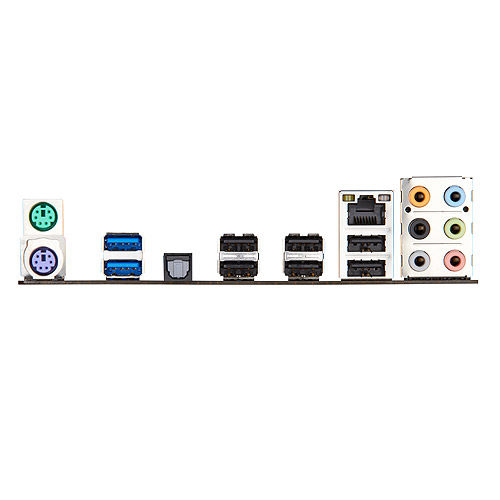

- ASUS Q-Slot - Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s) - Internal I/O
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
3 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s) - Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s) - BIOS
64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
- Support Disc
Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version) - Form Factor
ATX Form Factor
12 inch x 9 inch ( 30.5 cm x 22.9 cm )
