£75.00



Current Stock Level

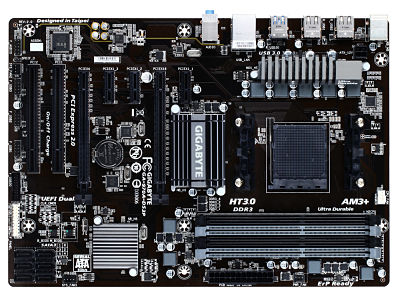

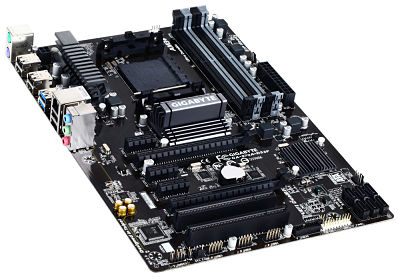

GIGABYTE 970A-DS3P With AMD Chipset




Manufacturer Gigabyte
Model 970A-DS3P
Socket Type & Form AM3+ / ATX
Chipset AMD 970
SATA Ports 6 x 6Gb/s
USB Ports 2 x USB3 & 6 x USB2
Graphics Connectors N/A
RAM Slots 4 x DIMM, MAX 32GB DDR3


  • Supports AMD AM3+ FX / AM3 series Processors
  • GIGABYTE Ultra Durable™ Technology
  • Audio Noise Guard with High Quality Audio Capacitors
  • GIGABYTE UEFI DualBIOS™
  • 2-way CrossFire™ Support
  • 4 USB 3.0 ports with transfer rates of up to 5Gbps
  • GIGABYTE On/Off Charge™ for USB devices

CPU AM3+ Socket:
  1. AMD AM3+ FX processors
  2. AMD AM3 Phenom™ II processor/ AMD Athlon™ II processor
(Please refer "CPU Support List" for more information.)
Hyper Transport Bus
  1. 4800 MT/s
Chipset
  1. North Bridge: AMD 970
  2. South Bridge: AMD SB950
Memory
  1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
  2. Dual channel memory architecture
  3. Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (Note 2)
(Please refer "Memory Support List" for more information.)
Audio
  1. Realtek® ALC887 audio codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 3)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 3 x PCI Express x1 slots
    (All PCI Express slots conform to PCI Express 2.0 standard.)
  4. 2 x PCI slots
Storage Interface South Bridge:
  1. 6 x SATA 6Gb/s connectors
  2. Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
USB South Bridge:
  1. 12 x USB 2.0/1.1 ports (6 ports on the back panel, 6 ports available through the internal USB headers)
VIA® VL805 chip:
  1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 6 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 2 x system fan headers
  6. 1 x power fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x USB 3.0/2.0 header
  11. 3 x USB 2.0/1.1 headers
  12. 1 x Clear CMOS jumper

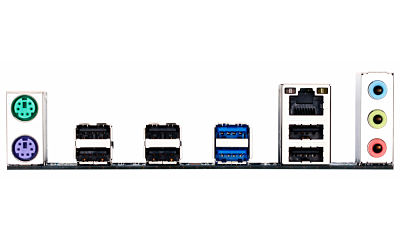

Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 2 x USB 3.0/2.0 ports
  4. 6 x USB 2.0/1.1 ports
  5. 1 x RJ-45 port
  6. 3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU/System fan speed control (Note 4)
BIOS
  1. 2 x 32 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress Install
  4. Support for EasyTune (Note 5)
  5. Support for Smart Recovery 2
  6. Support for Auto Green
  7. Support for ON/OFF Charge
  8. Support for 3TB+ Unlock
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Windows 8.1/8/7/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 21.5cm
Note (Note 1) Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
(Note 2) To support a DDR3 1866 MHz (and above) memory, you must install an AM3+ CPU first.
(Note 3) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(Note 4) Whether the fan speed control function is supported will depend on the cooler you install.
(Note 5) Available functions in EasyTune may differ by motherboard model.
