£125.00



Current Stock Level

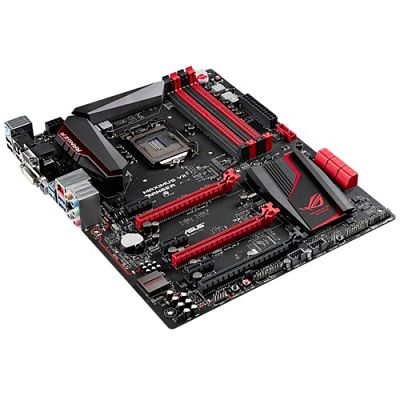

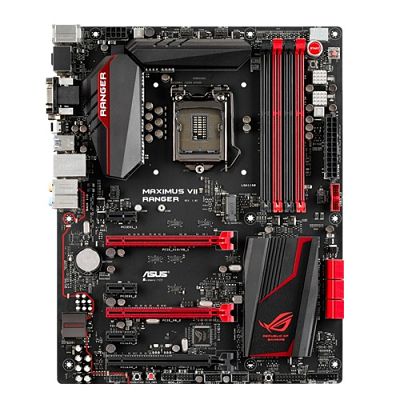

ASUS ROG Maximus VII Ranger - USB2.0, USB3.0, SATA6 + XFIRE/SLI




Manufacturer Asus
Model Maximus VII Ranger
Socket Type & Form 1150 / ATX
Chipset Intel Z97
SATA Ports 6 x 6Gb/s
USB Ports 4 x USB3 & 2 x USB2
Graphics Connectors 1xDVI, 1xHDMI, 1xD-Sub
RAM Slots 4 x DIMM, MAX 32GB DDR3



High-value entry-level ROG gaming ATX-board with superb specifications and game-boosting features

  • Intel® LGA1150 4th, New 4th & 5th-Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready
  • Intel® Z97 Express Chipset with M.2 support (up to 10Gb/s data-transfer)
  • Intel™ Ethernet + LANGuard + GameFirst III –This is game networking taken to the next level. This is ROG
  • SupremeFX 2014 + Radar II – New and improved audio that’s beyond compare
  • KeyBot + TrueVolt USB - Instant keyboard upgrade and rock-steady 5V USB supply
  • USB UEFI BIOS and Secure Erase - Award-winning simplicity and factory-fresh conditioning for superb performance



  • CPU
    Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 22 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® Z97
  • Memory
    4 x DIMM, Max. 32GB, DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    Multi-VGA output support : HDMI/DVI-D/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • Multi-GPU Support
    Supports NVIDIA® Quad-GPU SLI™ Technology
    Supports AMD Quad-GPU CrossFireX™ Technology
  • Expansion Slots
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red)
    1 x PCIe 2.0 x16 (x4 mode, black) *1
    3 x PCIe 2.0 x1
  • Storage
    Intel® Z97 chipset :
    6 x SATA 6Gb/s port(s), gray,
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *2
  • LAN
    Intel® I218V, 1 x Gigabit LAN Controller(s)
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - SupremeFX Shielding Technology
    - ELNA® premium audio capacitors
    Audio Feature :
    - DTS Connect
    - Optical S/PDIF out port(s) at back panel
    - Sonic SoundStage
    - Sonic SenseAmp
    - Sonic Studio
    - Sonic Radar II
  • USB Ports
    Intel® Z97 chipset : *3
    6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® Z97 chipset :
    7 x USB 2.0 port(s) (2 at back panel, , 5 at mid-board)
  • Overclocking Features
    Extreme Engine Digi+ III :
    - NexFET™ Power Block MOSFET
    - New Alloy Chokes
    - 10K Black Metallic Capacitors
    KeyBot
    - CPU Level Up
    - XMP
    - Direct Key
    ROG RAMDisk
    GameFirst III
    Extreme Tweaker
  • Special Features
    ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - USB Charger+
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS USB BIOS Flashback
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
  • Operating System Support
    Windows® 8.1
    Windows® 8
    Windows® 7

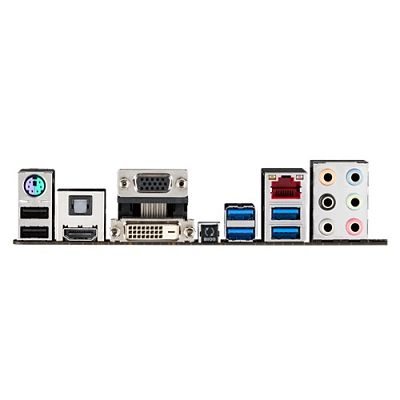

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.0 (blue)
    2 x USB 2.0
    1 x Optical S/PDIF out
    6 x Audio jack(s)
    1 x USB BIOS Flashback Button(s)
  • Internal I/O
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
    1 x TPM connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x MemOK! button(s)
    1 x Thermal sensor connector(s)
    0 x Power-on button(s)
    0 x Reset button(s)
    1 x Clear CMOS jumper(s)
    0 x ROG extension (ROG_EXT) header(s)
    1 x KeyBot Button
    1 x Sonic SoundStage Button
  • Accessories
    User's manual
    I/O Shield
    4 x SATA 6Gb/s cable(s)
    1 x SLI bridge(s)
    1 x Q-connector(s) (2 in 1)
    1 x 12 in 1 ROG Cable Label(s)
    0 x ROG Door Hanger(s)
  • BIOS
    64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-Language BIOS
  • Manageability
    WfM 2.0, DMI 2.7, WOL by PME, PXE
  • Operating System
    Windows® 8.1 32/64-bit
    Windows® 8 32/64-bit
    Windows® 7 32/64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Management Solution
    WfM 2.0, DMI 2.7, WOL by PME, PXE
  • Note
    *1: The PCIe 2.0 x 16 slot (PCIEX4_3) shares bandwith with PCIe 2.0 x1 and M.2 slot. The default setting is Auto Mode, which automatically optimizes the system bandwidth. If you install a PCIe 2.0 x4 device, the system will automatically detect and disable PCIe 2.0 x1 and M.2 slot.

    *2: The supported functions depends on the CPU installed.

    *3: Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under Windows® 8.1 / 8
