£45.00



Current Stock Level

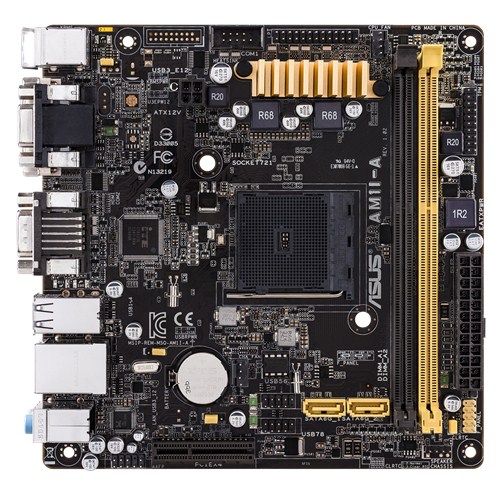

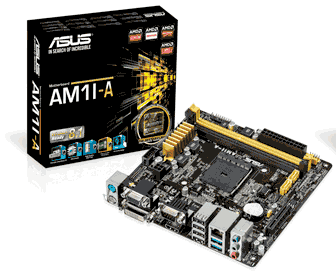

ASUS AM1l-A Featuring AMD SoC (AM1) Chipset





Manufacturer Asus
Model AM1I-A
Socket Type & Form AM1 / Mini ITX
Chipset Built in AMD Sempron & Athlon APUs
SATA Ports 2 x 6Gb/s
USB Ports 2 x USB3 & 4 x USB2
Graphics Connectors 1xDVI, 1xHDMI, 1xD-Sub
RAM Slots 2 x DIMM, MAX 32GB DDR3



Power-efficient AMD AM1 socket-based Mini-ITX SoC motherboard for compact and entry-level HTPCs, featuring fast USB 3.0 transfer speed

  • New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
  • USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
  • Network iControl: Real-time network bandwidth management
  • CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
  • AI Suite 3: One-stop access to innovative ASUS features



AMD SoC Athlon and Sempron Series APUs

This powerful and innovative motherboard supports both dual- and quad-core AMD Athlon and Sempron SoC (system-on-a-chip) APUs integrating Radeon™ HD graphics and support for HD video playback. This revolutionary APU (Accelerated Processing Unit) combines high processing power, advanced Microsoft® DirectX 11.1 graphics, and Fusion controller hubs (FCHs) in one small, efficient package. This SoC APU features up to single-channel DDR3 1600/1333 memory, SATA 6Gbit/s and USB 3.0 natively. AMD Athlon/Sempron APUs are the first multi-core x86 SoC with AM1 Series socket solution for entry-level desktops, improving performance by over 50 percent compared to the previous (‘Brazos 2.0’) generation of AMD APUs.





  • CPU
    AMD Socket AM1 Athlon™/Sempron™ Processors
    Supports CPU up to 4 cores
    * Refer to www.asus.com for CPU support list
  • Chipset
    Build in AMD Sempron & Athlon-Series APUs
  • Memory
    2 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
    Single Channel Memory Architecture
    Support AMD Memory Profile (AMP) memory
    * The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
  • Graphic
    Integrated AMD Radeon™ R Series Graphics in the APU
    Multi-VGA output support : HDMI/DVI-D/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1080 @ 60 Hz*1
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 2048 x 1536 @ 60 Hz
    Maximum shared memory of 2048 MB
  • Expansion Slots
    1 x PCIe 2.0 x4
  • Storage
    AMD® Sempron & Athlon-Series APUs :
    2 x SATA 6Gb/s port(s), yellow
  • LAN
    Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *2
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • USB Ports
    AMD® Sempron & Athlon-Series APUs :
    2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
    AMD® Sempron & Athlon-Series APUs :
    8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)
  • Special Features
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - Anti-Surge
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - Network iControl
    - USB 3.0 Boost
    ASUS Quiet Thermal Solution :
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 2
  • Operating System Support
    Windows® 8.1 , 32bit/64bit
    Windows® 8 , 32bit/64bit
    Windows® 7 , 32bit/64bit
    Windows® XP , 32bit

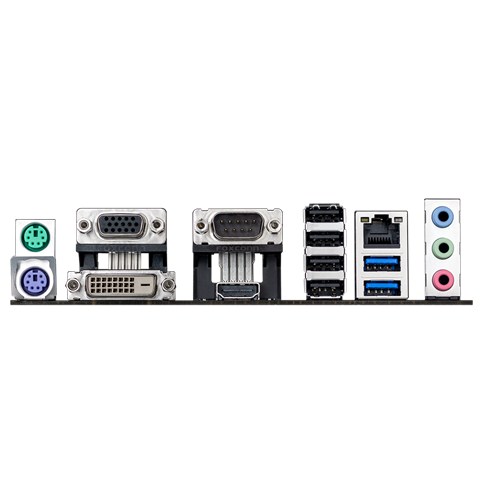

  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.0 (blue)
    4 x USB 2.0
    1 x COM port(s)
    3 x Audio jack(s)
  • Internal I/O
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x TPM header
    1 x LPT header
    1 x COM port(s) connector(s)
    2 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Internal speaker connector(s)
    1 x System panel(s)
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
  • BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Support Disc
    Drivers
    ASUS utilities
    ASUS Update
    Anti-virus software (OEM version)
  • Form Factor
    Mini ITX Form Factor
    6.7 inch x 6.7 inch ( 17 cm x 17 cm )
  • Note
    *1: Please check the specifications of your AMD APU for capabilities. Video playback at 4096 x 2160 pixels may not be guaranteed.
    *2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
