£180.00



Current Stock Level

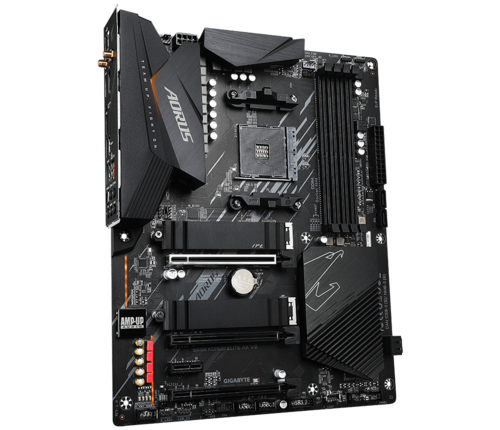

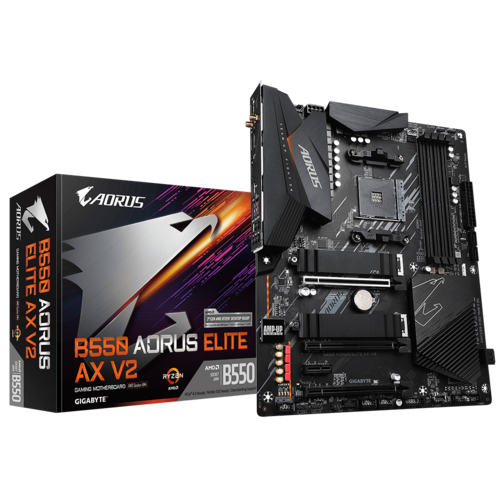

GIGABYTE B550 Aorus Elite V2 AX - USB3.2 - DUAL M.2 - GEN4 PCIe






Manufacturer GIGABYTE
Model B550 Aorus Elite V2 AX
Socket Type & Form AM4 / ATX
Chipset AMD B550
SATA Ports 2 x M.2 / 4 x 6Gb/s
USB Ports 2 x USB3.2 Gen2 & 3 x USB3.2 Gen1 & 2 USB2.0
Graphics Connectors 1xDisplaPort, 1xHDMI
RAM Slots 4 x DIMM, MAX 128GB DDR4





  • CPU
    1. AMD Socket AM4, support for: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. AMD Ryzen™ 5000 G-series / Ryzen™ 5000 Series/ 3rd Generation AMD Ryzen™ processors:
      Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
    1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio
    1. Realtek® ALC1200 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication module
    Intel® Wi-Fi 6 AX200
    1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Storage Interface
    1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
      - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
      - New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    2. 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
      - Supporting SATA and PCIe 3.0 x4/x2 SSDs
    3. 4 x SATA 6Gb/s connectors, integrated in the Chipset:
      - Support for RAID 0, RAID 1, and RAID 10
  • USB
    CPU:
    1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    2. 2 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    2. 1 x USB 3.2 Gen 1 port on the back panel
    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    4. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x M.2 Socket 3 connectors
    4. 4 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x water cooling CPU fan header
    7. 3 x system fan headers
    8. 1 x CPU cooler LED strip/RGB LED strip header
    9. 2 x addressable LED strip headers
    10. 2 x RGB LED strip headers
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
    14. 1 x USB 3.2 Gen 1 header
    15. 2 x USB 2.0/1.1 headers
    16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    17. 1 x Clear CMOS jumper
    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

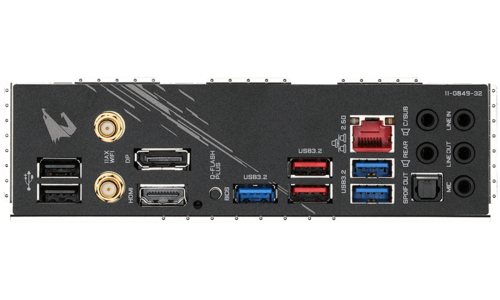

  • Back Panel Connectors
    1. 1 x DisplayPort
    2. 1 x HDMI port
    3. 2 x SMA antenna connectors (2T2R)
    4. 2 x USB 3.2 Gen 2 Type-A ports (red)
    5. 3 x USB 3.2 Gen 1 ports
    6. 2 x USB 2.0/1.1 ports
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 1 x optical S/PDIF Out connector
    10. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Realtek® 8125 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
