- CPU
Intel® Socket 1200 for 10thGen Intel®Core™, Pentium®Gold and Celeron®Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer towww.asus.comfor CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Chipset
Intel® B460
- Memory
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Graphic
Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer towww.intel.comfor any update.
- Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
- Expansion Slots
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® B460 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
- Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready *2
- LAN
Intel® I219-V 1Gb Ethernet
- Audio
Realtek ALC S1200A 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors

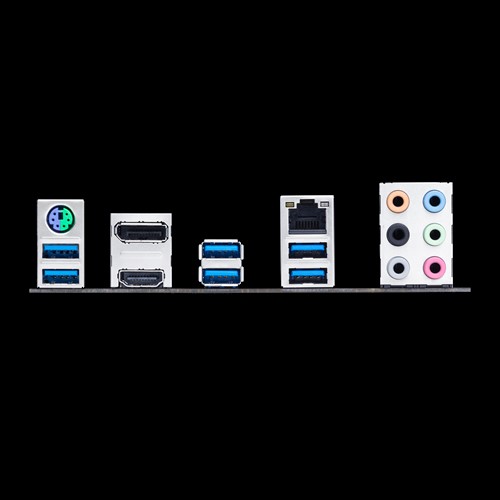

- USB Ports
Rear USB Port( Total 6 )
6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
Front USB Port( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
-
