£80.00



Current Stock Level

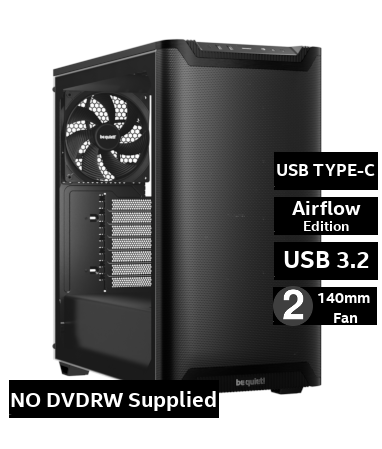

BEQUIET! Pure Base 501 Airflow Window





Motherboard Support Micro & Standard ATX & Mini-ITX
External 5.25" Drive Bays 0
External 3.5" Drive Bays 0
Internal 3.5" 2
Internal 2.5" 5
Rear Cooling 1 x 120/140mm (140mm Included)
Front Cooling 3x120/2x140mm (1x140mm Included )
Top/Bottom Cooling Top 2x120/2x140mm (Optional)





Comfortably compact

Pure Base 501 Airflow Black is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.

  • High airflow intake front panel and top cover for maximum performance
  • 2 preinstalled Pure Wings 3 140mm PWM fans for extraordinary air pressure
  • Generous space for high-end graphics cards and large coolers, despite compact footprint
  • Optional vertical graphics card installation
  • Water cooling ready for radiators up to 360mm
  • USB 3.2 Gen. 2 Type C for best connectivity
  • Comfortable cable management with clever cable routing design
  • Side panel made of tempered glass

General data

Model Pure Base 501 Airflow Black
Color option Black
Motherboard compatibility ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm) 450 x 231 x 449
Case size incl. stands (L x W x H), (mm) 450 x 231 x 463
Volume (l) 39.2
PSU form factor ATX PS/2
Net weight (kg) 6.8
Expansion slots 7

Pre-installed fans

Fan at top -
Fan at front 1x Pure Wings 3 140mm PWM
Fan at side -
Fan at rear 1x Pure Wings 3 140mm PWM
Fan at bottom -
Dimensions (L x W x H), (mm) Front: 140 x 25 x 140 / Rear: 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm) 1200
Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O) 0.96
Noise level at 100% PWM / 12V (dB(A)) 21.9
Voltage range (V DC) 5 - 13.2
Input power (W) 3.6
Input current (A) 0.06
Connector 4-pin PWM
Lifespan (h / 25°C) 80,000
Fan controller -

Maximum fan installation

Maximum fans 6
Top (mm) 2x 140 / 2x 120
Front (mm) 2x 140 / 3x 120
Side (mm) -
Rear (mm) 1x 140 / 1x 120
Bottom (mm) -
PSU shroud -

Optional radiator installation

Top (mm) 120 / 240
Front (mm) 120 / 140 / 240 / 280 / 360
Side (mm) -
Rear (mm) 120 / 140
Bottom (mm) -

PSU compatibility

Maximum dimensions excl. bottom fan (mm) 180
Maximum dimensions incl. bottom fan (mm) 180

Graphics card

HDD cage (in height of graphics card) installed (mm) 368
HDD cage (in height of graphics card) removed (mm) 368
Maximum PCIe slots with vertical graphics card (pcs.) 5

Drive bay capacity

5.25 bays (pcs.) -
3.5 slots (scope of delivery) 2
3.5 slots (max.) 2
2.5 slots (scope of delivery) 5
2.5 slots (max.) 5
