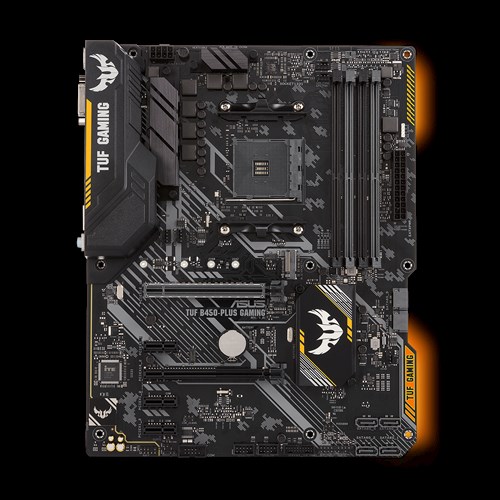

ASUS TUF B450-Plus Gaming B450 Chipset - USB3.1 - USB3.0- M.2 - Crossfire

AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list

AMD B450

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DVI-D ports
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

Supports AMD CrossFireX™ Technology

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x SATA 6Gb/s port(s)
AMD B450 chipset :
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10

Realtek® RTL8111H
TUF LANGuard

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-C^TM)
AMD B450 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

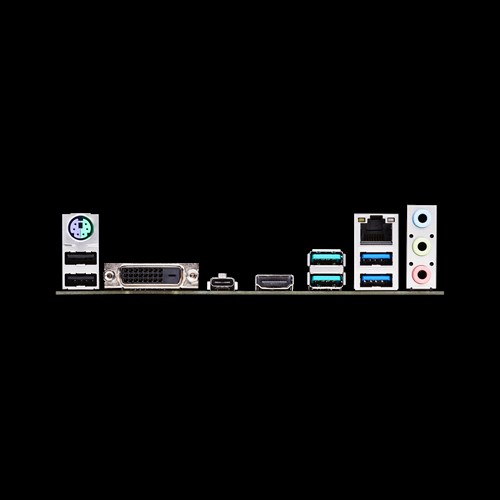

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/s port(s) USB Type-C^TM
2 x USB 3.1 Gen 2 (teal blue)Type-A,
2 x USB 3.1 Gen 1 (blue) Type-A,
2 x USB 2.0
3 x Audio jack(s)

1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header

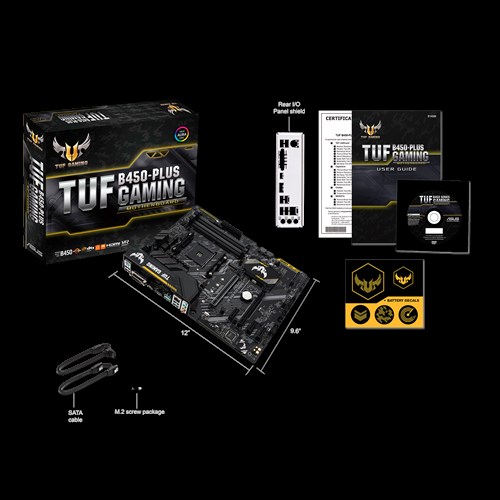

User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)

128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

WOL by PME, PXE

Windows® 10 64-bit

ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

*Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
