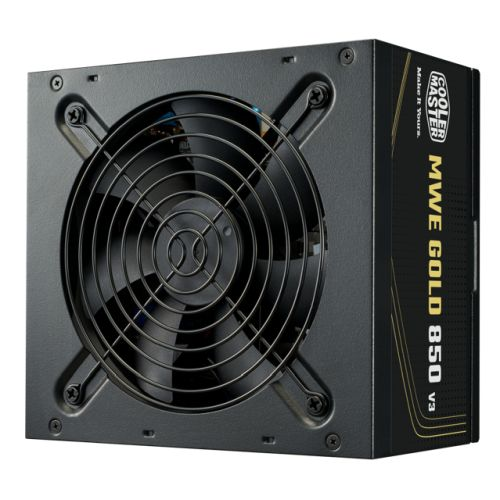

850W PSU - COOLERMASTER MWE V3 Gold - ATX3.1 (High Gaming)
Power Rating | 850W |
Cooling | 120mm Fan |
SATA Connectors | 6 |
Molex Connectors | 3 |
PCI-E Power | 4x 6+2Pin + 1x 12+4 |
CE Approved | Yes |
Voltage Range |
MWE Gold V3 ATX 3.1 Non-Modular Series
ATX 3.1 support
A durable 12V-2x6 native cable (750 / 850W only)
High temperature resilience
DC-to-DC technology
2 EPS Connectors
Level Up Your Power
Cooler Master presents the MWE Gold V3 ATX 3.1 Ready featuring high power, ultra-silent performance with exceptional efficiency and reliability.
ATX 3.1 Support & a Durable 12V-2x6 Native Cable
( 750 / 850 only )
The ATX 3.1-compliant power supply supports 200% Times the peak power, making it ideal for next generation series GPUs to easily meet the demands of future high-performance graphics cards. Includes 180-degree 12+4pin (12V-2x6) cable that can support the maximum power consumption of 450W for mainstream graphics cards.
Model | MPE-8506-ACAG-B**, MPE-7506-ACAG-B**, MPE-6502-ACAAG-3B**, MPE-5502-ACAAG-3B** |
ATX Version | ATX 12V Ver. 3.1 |
PFCActive | PFC |
Input Voltage | 100-240V |
Input Current | 10-6A (850/750W), 10-5A (650W), 8-4A (550W) |
Input Frequency | 50-60Hz |
Dimensions | (L x W x H)140 x 150 x 86 mm |
Fan Size | 120mm |
Fan Bearing | HDB |
Fan Speed | 2400 RPM (850/750/650W), 1800 RPM (550W) |
Efficiency | ≥90% @ Typical Load |
80 PLUS Rating | 80 PLUS Gold |
ErP 2014 Lot 3 | Yes |
Operating Temperature | 0-40°C |
Power Good Signal | 100 - 150 ms |
Hold Up Time | ≥16ms at 80% Load |
MTBF | >100,000 Hours (850/750W), >100,000 Hours @ 25℃ambient (650/550W) |
Protections | UVP / OVP / OPP / OTP / SCP / OCP |
Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |
ATX | 24 Pin Connectors1 |
EPS | 8 Pin / 4+4 Pin Connectors2 |
PCI-e | 6+2 Pin Connectors4 (850/750/650W), 2 (550W) |
SATA Connectors | 6 |
Peripheral 4 Pin Connectors | 3 |
12V-2x6 (12+4 Pin) Connectors | 1 (850/750W) |
Series | MWE Gold Series |
Modular | Non Modular |
Form Factor | ATX |
80 Plus Efficiency | Gold |
