£290.00



Current Stock Level

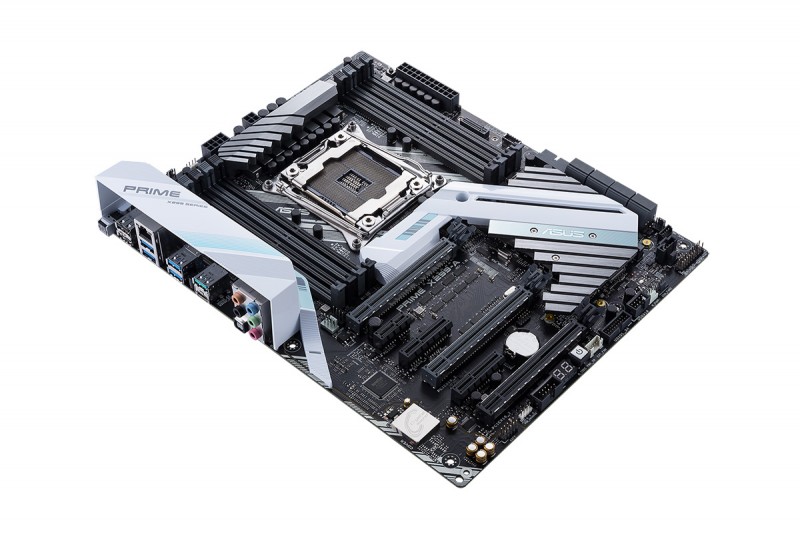

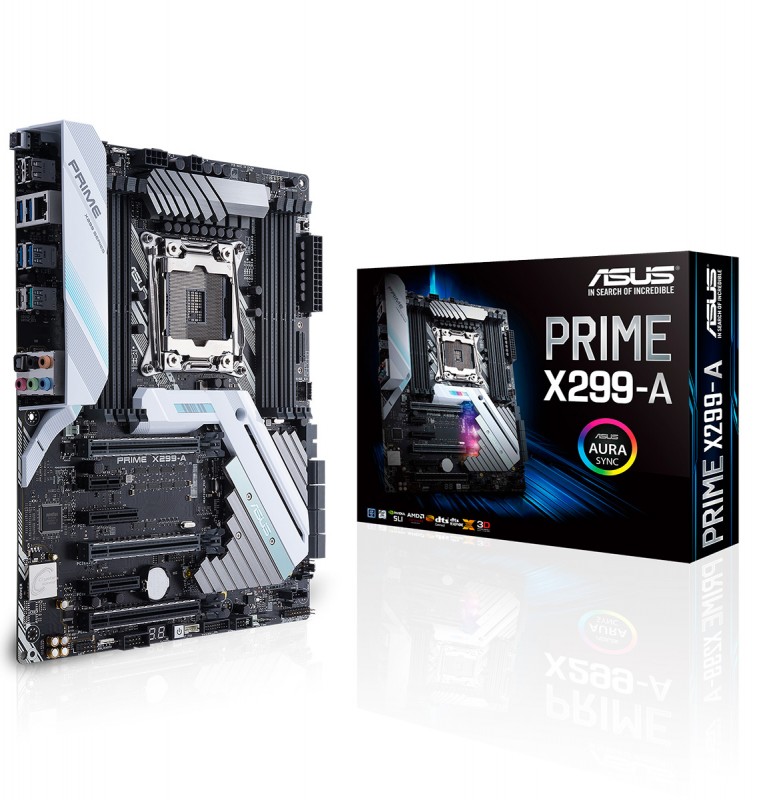

ASUS PRIME X299-A





Manufacturer Asus
Model PRIME X299-A
Socket Type & Form 2066 / ATX
Chipset Intel X299
SATA Ports 8 x 6Gb, 2 x M.2/s
USB Ports 2 x USB3.1 (A-C),4 x USB3 & 2 x USB2
Graphics Connectors N/A
RAM Slots 4 x DIMM, MAX 64GB DDR4



Main Features



  • 3× PCIe (3.0) x16 (2× x16 / 1× x8)
  • 2× USB 3.1 (2× Type-A) & 8× USB 3.0 (4× Type-A / 4× internal)
  • 6× USB 2.0 (4× Type-A / 2× internal)
  • 1× M.2 (SATA 6G & PCIe 3.0 x4) / 1× M.2 (PCIe 3.0 x4) / 6× SATA 6G
  • 8× DIMM-Slots for DDR4-RAM (max. 128 GB with 28 or. 44 lane CPU)
  • ASUS Q-Design Armor and Q-LED RGB-LED lighting

Specifications



Technical Details:

  • Format:
    ATX Form-Factor (30,5 x 24,4 cm)
  • Chipset:
    Intel X299 ("Lewisburg")
  • Socket:
    2066 (for Intel CPUs of the Skylake-X and Kaby Lake-X Generation)
  • RAM:
    8× DDR4 (Skylake-X: DDR4-2.666; up to 128 GB with a 44 or 28 lane CPU)
    4× DDR4 (Kabylake-X: DDR4-2.666; up to 64 GB with a 16 lane CPU)
    Quad-Channel (Skylake-X; supported by CPUs with 44 or 28 lanes)
    Dual-Channel (Kaby Lake-X; supported by CPUs with 16 lanes)
  • Slots (physical):
    2× PCIe 3.0 x16
    1× PCIe 3.0 x16 (electrical x8)
    Compatible Multi-VGA Configurations: 3-Way-SLI* (Quad-GPU), 3-Way-CrossFireX* (Quad-GPU)
    1× PCIe 3.0 x4
    2× PCIe 3.0 x1
  • Internal Connectors:
    6× SATA 6G
    1× M.2 (PCIe 3.0 x4, 2242/2260/2280/110)
    1× M.2 (PCIe 3.0 x4 & SATA, 2242/2260/2280)
    1× M.2 Fan Connector
    1× AAFP Connector
    4× USB 3.0 (two headers)
    2× USB 2.0 (one header)
    2× CPU Fan (4-Pin)
    2× System Fan (4-Pin)
    2× System Fan / Pump Connector(4-Pin)
    1× CPU-OPT Fan Connector
    1× Front-Panel Header
    1× Thermal Sensor Connector
    1× Thunderbolt Connector
    1× Clear CMOS Jumper
    1x Serial-Port Header (COM)
    1x MemOK! Button
    1x CPU_OV Jumper
    1x COM Port Header

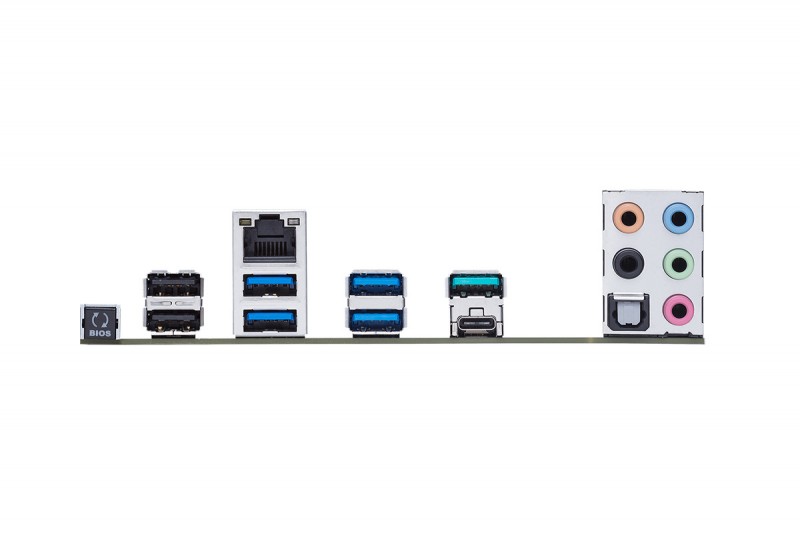

  • External Connectors:
    2× USB 3.1 (Type-A)
    4× USB 3.0 (Type-A)
    4× USB 2.0 (Type-A incl. 1× BIOS Flashback)
    1× RJ45 LAN Port (Intel I219V)
    5× Audio (Realtek ALC1220)
  • Power Supply:
    1× 24-Pin ATX
    2× 8-Pin ATX 12V
There are yet no reviews for this product.
