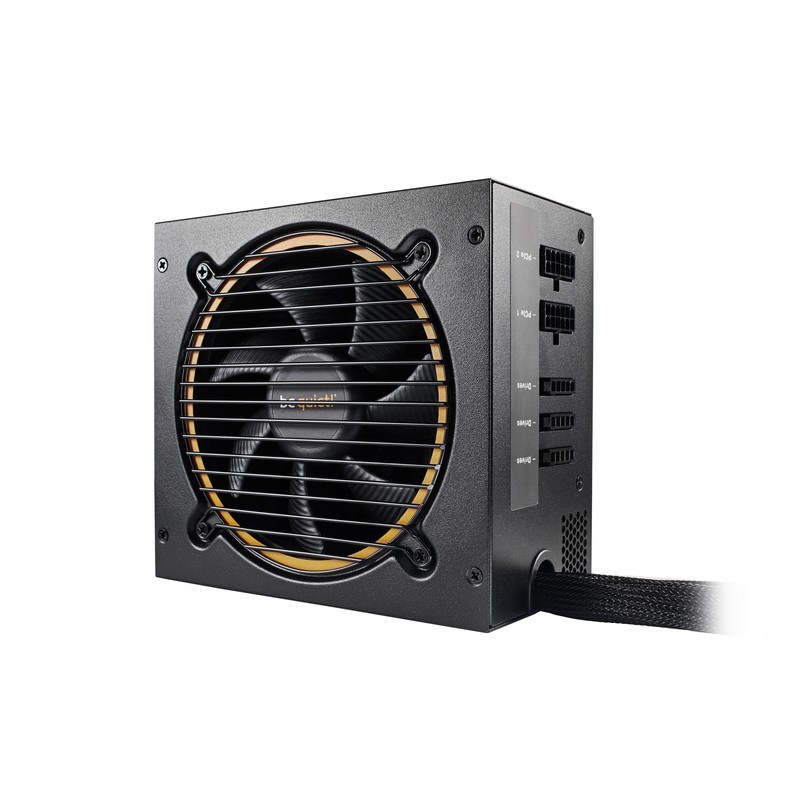

700W PSU - BE QUIET! Pure Power 11 Gold - 92% Efficiency (High Gaming)
| Power Rating | 700W |
| Cooling | 120mm Fan |
| SATA Connectors | 6 |
| Molex Connectors | 3 |
| PCI-E Power | 4 x 6+2-Pin |
| CE Approved | Yes |
| Voltage Range | 100 - 240V |
PURE POWER 11
700W CMExceptionally Quiet, Superior Reliability, Great Value
Pure Power 11 700W CM offers peerless dependability and best-in-class features. Whether you’re assembling a very quiet system, upgrading an existing PC, or building a multi-GPU gaming system, your build will benefit from this PSU that simply has the best combination of features at a very popular price.
- 80 PLUS® Gold efficiency (up to 92%)
- Two strong 12V-rails
- Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
- DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
- Silence-optimized 120mm be quiet! fan
- Full suite of top safety features
- 5-year manufacturer’s warranty
General data
| Model | Pure Power 11 | 700W CM |
| Continuous power (W) | 700 |
| Peak power (W) | 750 |
| Form factor ATX 12V | Version 2.4 |
| Form factor EPS 12V | Version 2.92 |
| Modular cable management | ✓ |
| Topology | Active Clamp + SR + DC/DC |
| Wire-free design (DC-side) | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 10 / 5 |
| PFC | active |
| Power factor at 100% load | >0.99 |
| Compliant to Intel C6/C7 | ✓ |
| Power consumption in standby (W) | 0.13 |
| Average life time (h / 25°C) | 100000 |
| Operating temperature up to (°C) | 40 |
Infographics
Output
| 12V rails (multi-rail operation) | 2 |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V (A) | 25 |
| +5V (A) | 20 |
| +12V1 (A) | 36 |
| +12V2 (A) | 30 |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 672 |
| Max. combined power 3.3V + 5V (W) | 150 |
| Hold-up time (ms @ 100%) | 24 |
Fan / Cooling technology
| Fan type | Silence-optimized be quiet! fan |
| +SilentWings | - |
| Motor technology | 4-pole fan motor |
| Bearing technology | Rifle |
| Fan size (mm) | 120 |
| Max. fan speed (rpm), temperature-dependent | 1.380 |
| Temperature control for case fans | - |
| dB(A) at 20% load | 11.2 |
| dB(A) at 50% load | 11.5 |
| dB(A) at 100% load | 24.6 |
Protection
| OCP (over current protection) | ✓ |
| OVP (over voltage protection) | ✓ |
| UVP (under voltage protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OTP (over temperature protection) | ✓ |
| OPP (over power protection) | ✓ |
Safety certification
<| CE | ✓ |
| CB | ✓ |
| TÜV | ✓ |
| Nemko (N) | - |
| Semko (S) | - |
| Fimko (FI) | - |
