£190.00



Current Stock Level

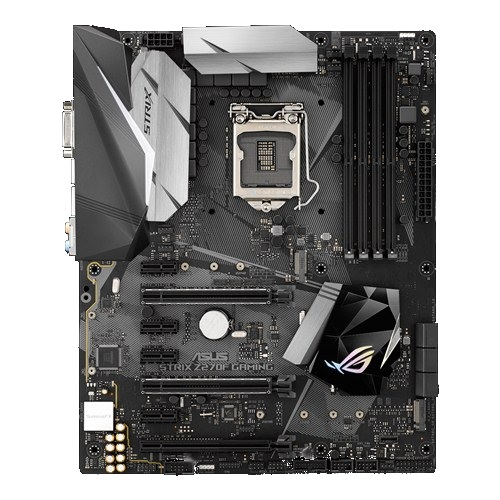

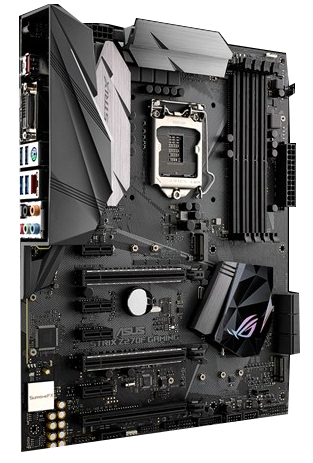

ASUS ROG STRIX Z270F GAMING - Z270 - USB3.1/3.0/2.0, SATA6 + SLI/XFIRE





Manufacturer Asus
Model STRIX Z270F GAMING
Socket Type & Form 1151 / ATX
Chipset Intel Z270
SATA Ports 6 x 6Gb/s + 2 x M.2
USB Ports 2 x USB3.1 (A)(C) & 4 x USB3.0
Graphics Connectors 1xDP, 1xDVI, 1xHDMI
RAM Slots 4 x DIMM, MAX 64GB DDR4


  • CPU
    Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® Z270
  • Memory
    4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
    Maximum shared memory of 1024 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
  • Multi-GPU Support
    Supports NVIDIA® 2-Way SLI™ Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
    1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    4 x PCIe 3.0/2.0 x1
  • Storage
    Intel® Z270 Chipset :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)*3
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology*4
    Intel® Optane™ Memory Ready *5
  • LAN
    Intel® I219V
    Anti-surge LANGuard
    ROG GameFirst Technology
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual Headphone Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - Supports up to 32-Bit/192kHz playback *6
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Optical S/PDIF out port(s) at back panel
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Sonic Radar III
    - Sonic Studio III
  • USB Ports
    Intel® Z270 Chipset :
    6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® Z270 Chipset :
    6 x USB 2.0 port(s)
    ASMedia® USB 3.1 controller :
    2 x USB 3.1 port(s) (Type-A + Type-C, Support 3A power output)
  • ROG Exclusive Features
    ROG RAMCache II
    ROG CPU-Z
    ROG CloneDrive
    Overwolf
    GameFirst IV
    ROG Aura
    - Aura Lighting Control
    - Aura RGB Strip Headers
  • Special Features
    OC Design - ASUS PRO Clock Technology
    - Full BCLK range for extreme overclocking performance
    5-Way Optimization by Dual Intelligent Processors 5
    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
    TPU
    - Auto Tuning, TurboV, GPU Boost
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
    Gamer's Guardian:
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    - SafeSlot
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - ESD Guards
    - PC Cleaner
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Gaming Aesthetics :
    - 3D printing friendly
    - AURA-RGB Lighting
    Turbo APP
    M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

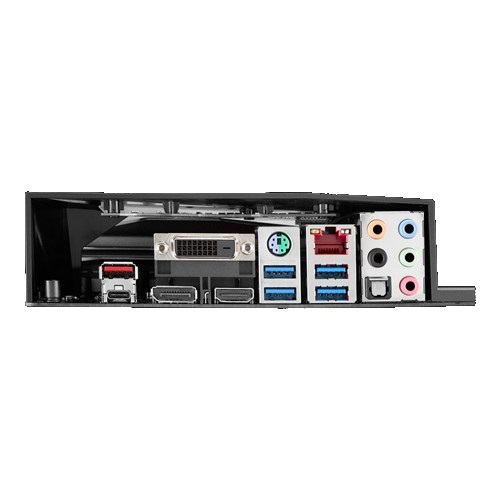

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Type-A + Type-C
    4 x USB 3.0 (blue)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O Ports
    1 x AAFP connector
    2 x RGB Header(s)
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x System panel(s) (Chassis intrusion header is inbuilt)
    1 x DRCT header(s)
    1 x CPU OV
    1 x 5-pin EXT_FAN(Extension Fan) connector
    1 x ROG extension (ROG_EXT) header(s)
    1 x 14-1 pin TPM connector
    1 x COM port header
    1 x High AMP Fan Header
    1 x T_Sensor Connector
    1 x AIO PUMP Header
    3 x 3D Mount screw port(s)
  • Accessories
    User's manual
    ASUS Q-Shield
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x CPU installation tool
    1 x Supporting DVD
    1 x SLI HB BRIDGE(2-WAY-M)
    1 x ROG Strix stickers
    1 x 10 in 1 ROG Cable Label(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x 3D printing mount package
    1 x ROG coasters
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
  • Manageability
    WfM2.0, DMI3.0, WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
    Windows® 8.1 64-bit *7
    Windows® 7 32-bit *7
    Windows® 7 64-bit *7
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays.
    *2 The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
    *3 The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use SATA devices.
    *4 These functions will work depending on the CPU installed.
    *5 Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
    *6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
    *7 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
    *8 ROG GameFirst IV is only available for Windows® 10/8.1 64-bit
    *9 Support for the Bluetooth specification depends on the Windows version. Win7/8.1 support up to Bluetooth 4.0.
