THERMALTAKE VIEW 28 RGB
| Motherboard Support | Micro & Standard ATX |
| External 5.25" Drive Bays | 0 |
| External 3.5" Drive Bays | 0 |
| Internal 3.5" | 2+1 |
| Internal 2.5" | 2+1 |
| Rear Cooling | 2 x 120/140mm (Optional) |
| Front Cooling | 1 x 120mm (Included) |
| Top/Bottom Cooling | Top 1 x 120mm |

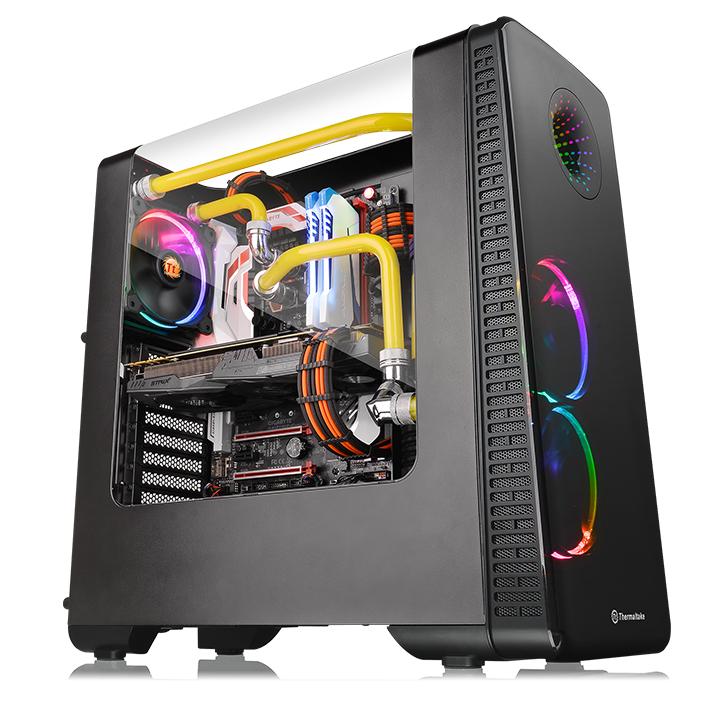

Product Overview Thermaltake View 28 RGB Riing Edition Gull-Wing Window ATX Mid-Tower Chassis
The View 28 RGB Mid-Tower Chassis features a transparent gull-wing window, advanced floating GPU mounting system with an optional PCI-e riser cable, and a built-in power supply cover for clean cable management. The tinted front panel with a controllable 256-color RGB LEDs matrix gives users a clean look whilst adding incredibly stunning visual perspective to the system. The View 28 RGB supports all high-end PC hardware, graphic cards, and air/liquid cooling solutions. Build your ultimate PC chassis with the Thermaltake View 28 RGB Riing Edition.
Gaze Into Infinity from the RGB Matrix
The View 28 RGB Riing Edition brightens up your system in a brand-new way with its seemingly endless number of 256-color LEDs – the RGB Matrix on the front panel. Inspired by a spiral galaxy, the RGB Matrix illuminates from the darkness, and colors your build with vivid lighting effects, including static color (red/blue/white/green), RGB spectrum and RGB breathing.
RGB Control Mode:
Mode 1 – RGB lighting
Mode 2~5 – Single Color (arrange from red, blue, white, green)
Mode 6 – RGB breath lighting
Mode 7~10 – Single color breathing (arranged from red, blue, white, green)
Mode 11 – Light off
*Long press on the control button will immediately turn the light off, press the control button once again to restore it to original states.
| P/N | CA-1H2-00M1WN-00 |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 505 x 200 x 493mm (19.9 x 7.9 x 19.4 inch) |
| Net Weight | 6.7 kg / 14.9 lb |
| Side Panel | Transparent Window |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust): 120 x 120 x 25 mm fan (1000rpm, 16dBA) |
| Drive Bays | -Accessible -Hidden 2 x 3.5’’ or 2.5’’(with HDD tray) 4 x 2.5’’ (with the M/B tray) |
| Expansion Slots | 8 + 2 |
| Motherboards | 6.7” x 6.7” (Mini ITX),9.6” x 9.6” (Micro ATX),12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 2,USB 2.0 x 1, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm Rear: 1 x 120mm Power Cover: 1 x 120mm |
| Radiator Support | Front:1x360mm Rear:1x120mm |
| Clearance | CPU cooler height limitation: 155mm VGA length limitation: 410mm(Without Front Fan) ※Suggested VGA thickness up to 40mm(2-slot reference card standard) with 7mm space for ventilation if extending for VGA card PSU length limitation: 180mm LED Controller Supports Up To 8 Thermaltake Riing RGB Fans(Hardware Edition) |
