£125.00



Current Stock Level

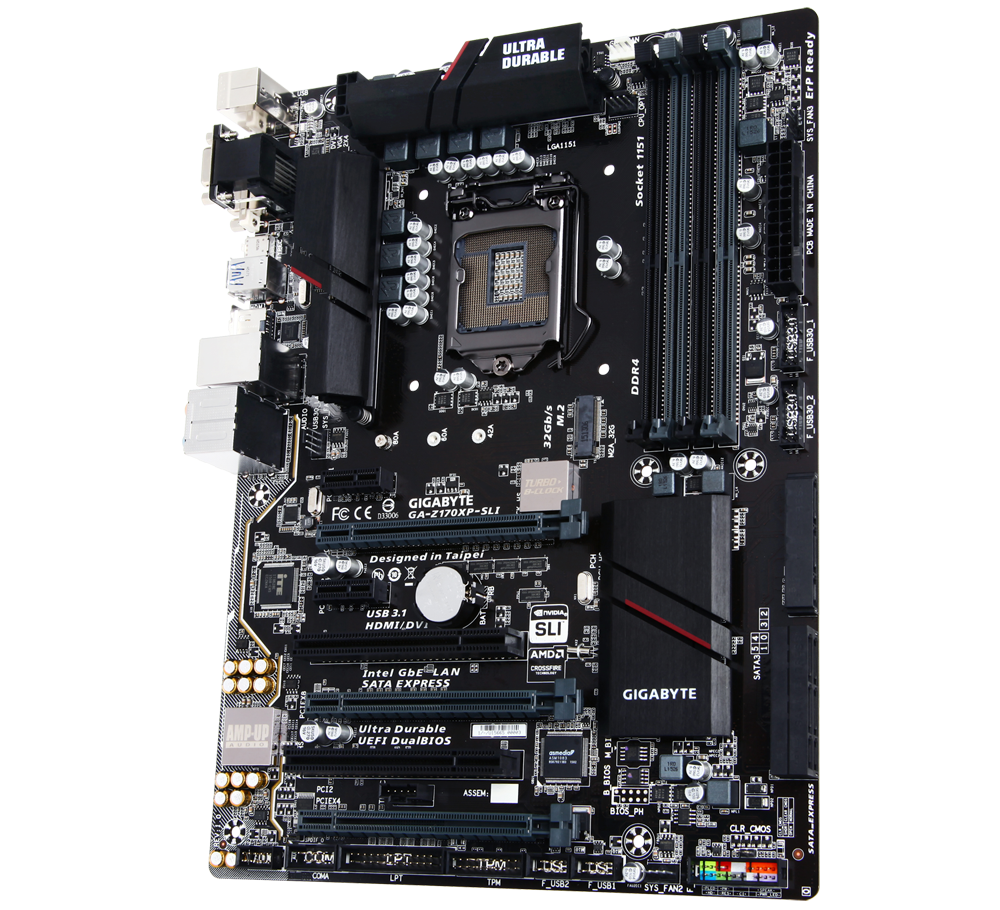

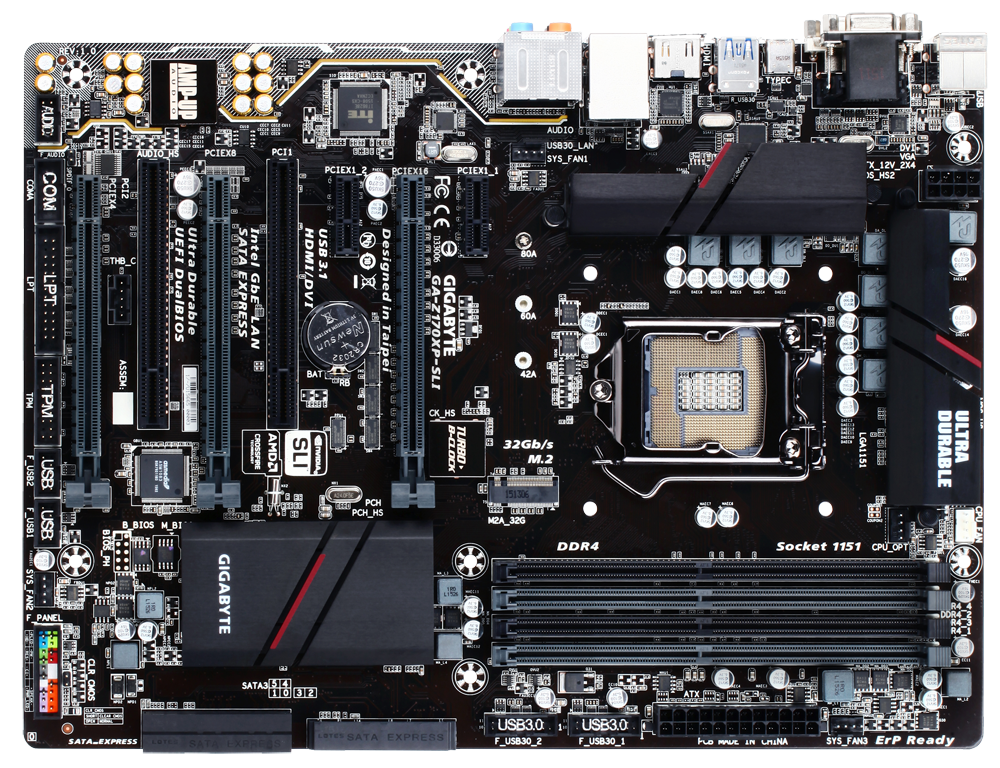

GIGABYTE Z170XP-SLI - USB3.1/3.0/2.0, SATA6 + SLI/XFIRE






Manufacturer Gigabyte
Model GA-Z170XP-SLI
Socket Type & Form 1151 / ATX
Chipset Intel Z170 Express
SATA Ports 6 x 6Gb/s + 2 x Sata Express + M.2
USB Ports 2 x 2.0/3 x 3.0/2 x 3.1 Type-A (Red)1 x 3.1 Type-C
Graphics Connectors 1xDVI, 1xHDMI 1x D-Sub (VGA)
RAM Slots





  • Supports 6th Generation Intel® Core™ Processor
  • Dual Channel DDR4, 4 DIMMs
  • Fast USB 3.1 with USB Type-C™ - The World’s Next Universal Connector
  • 3-Way Graphics with Premium PCIe Lane
  • PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
  • 3 SATA Express Connectors for up to 16Gb/s Data Transfer
  • 115dB SNR HD Audio with Built-in Rear Audio Amplifier
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • GIGABYTE UEFI DualBIOS™ Technology
CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® Z170 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor- Intel®HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
  4. Support for up to 3 displays at the same time
  5. Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC1150 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. When the PCIEX1_2 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
  4. 2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  5. 2 x PCI slots
Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
Storage Interface Chipset:
  1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
  2. 3 x SATA Express connectors
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-8 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
USB Chipset:
  1. 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+ASMedia®ASM1142 chip:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
  2. 1 x USB 3.1 Type-A port (red) on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x M.2 Socket 3 connector
  4. 3 x SATA Express connectors
  5. 6 x SATA 6Gb/s connectors
  6. 1 x CPU fan header
  7. 1 x water cooling fan header (CPU_OPT)
  8. 3 x system fan headers
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x S/PDIF Out header
  12. 2 x USB 3.0/2.0 headers
  13. 2 x USB 2.0/1.1 headers
  14. 1 x Trusted Platform Module (TPM) header
  15. 1 x Thunderbolt™ add-in card connector
  16. 1 x serial port header
  17. 1 x parallel port header
  18. 1 x Clear CMOS jumper

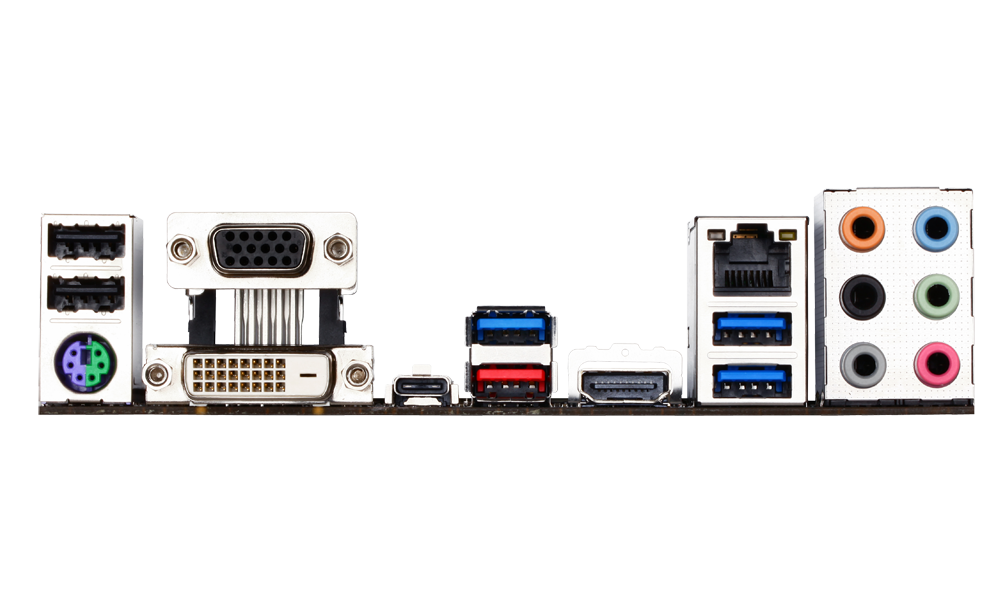

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 1 x USB Type-C™ port, with USB 3.1 support
  6. 1 x USB 3.1 Type-A port (red)
  7. 3 x USB 3.0/2.0 ports
  8. 2 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/Chipset temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System/Chipset overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Smart TimeLock
    Smart Keyboard
    Smart Backup
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Smart Response Technology
  3. cFosSpeed
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. ATX Form Factor; 30.5cm x 22.5cm

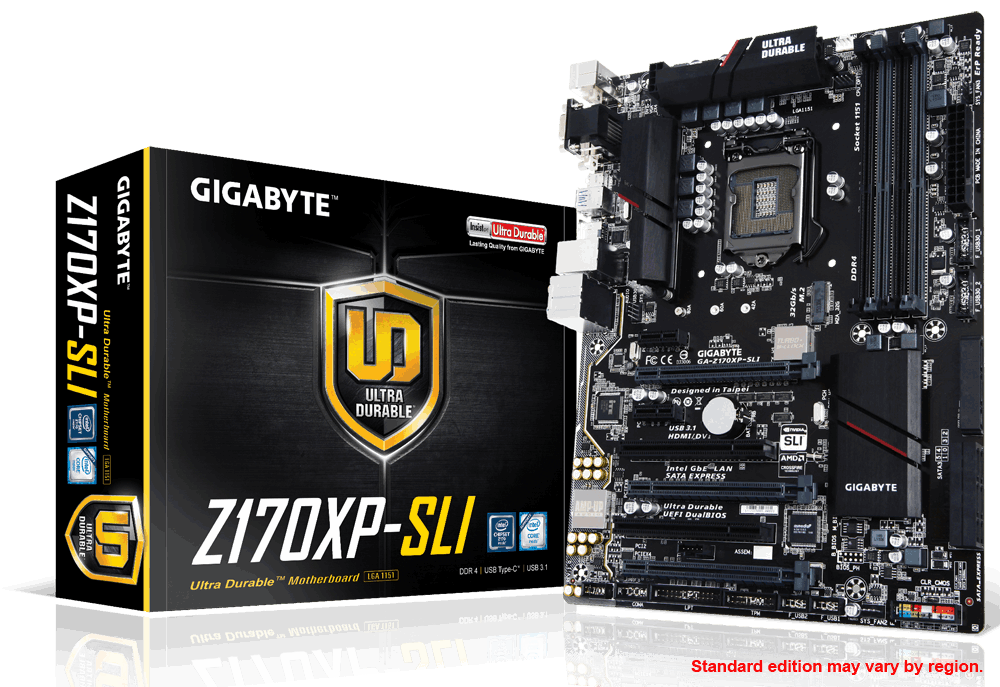

Box Contents
  1. GA-Z170XP-SLI motherboard
  2. Four SATA cables
  3. Motherboard driver disk
  4. I/O Shield
  5. User's Manual
  6. One 2-Way SLI bridge connector
  7. Quick Installation Guide
  8. One G Connector
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
