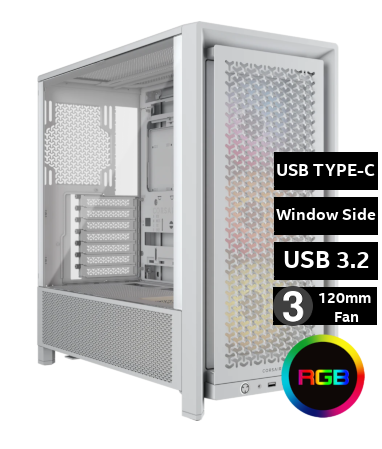

CORSAIR FRAME 4000D RS ARGB - White
| Motherboard Support | E-ATX - ATX - MicroATX - Mini-ITX |
| External 5.25" Drive Bays | 0 |
| External 3.5" Drive Bays | 0 |
| Internal 3.5" | 2 |
| Internal 2.5" | 4 |
| Rear Cooling | 1 x 120/140mm (Optional) |
| Front Cooling | 3x120mm (Included) 2x140 2x200mm (Optional) |
| Top/Bottom Cooling | 3x120/2x140mm (Top) 3x120mm (Bottom) (Optional) |
The revolutionary FRAME Modular Case System redefines customization. Want to upgrade the motherboard tray to billet aluminum? Want to replace your front I/O panel for more USB ports? Now you can.
This case evolves with your needs, offering near limitless options for upgrades and changes.

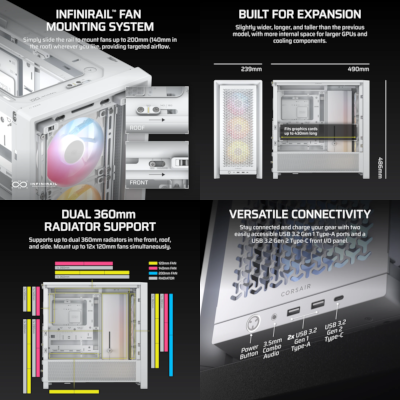

INFINIRAIL FAN MOUNTING SYSTEM
This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.
Up to 12% More Airflow*
Engineered for maximum airflow and minimal resistance, the new 3D Y-pattern steel front panel ensures a smooth, unobstructed path for cool air, enhancing overall cooling.
*Compared to the previous 4000D Airflow front panel
Dual 360mm Radiator Support
Boost your cooling with three dedicated mounting locations for 360mm radiators – front, roof, and side. You can mount up to 10x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.
THREE RS120 ARGB FANS INCLUDED
RS120 ARGB PWM daisy-chainable fans for simply great cooling - no separate controller needed.
Controlled through one 4-pin PWM connector and one +5V ARGB connector on your compatible motherboard.
| Case Supported | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
|---|---|
| Case Height | 486 |
| Case Length | 490 |
| Case Width | 239 |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Color | WHITE |
| Case Size | Mid-Tower |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Case Warranty | 2 Year |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 4 |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Case Front IO | (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out |
| Maximum GPU Length | 430mm |
| Weight | 10.38 |
| Case Expansion Slots | 7 Horizontal or 3 Vertical |
| Case Power Supply | ATX |
| Radiator Support - Top | 360mm, 280mm, 240mm |
|---|---|
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Bottom | None |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 140mm, 120mm |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support - Bottom | 2x 120mm |
| Fan Support - Side | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm, 1x 140mm |
| Front IO Motherboard Connections | 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | RS ARGB Series |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| RapidRoute Included | No |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
