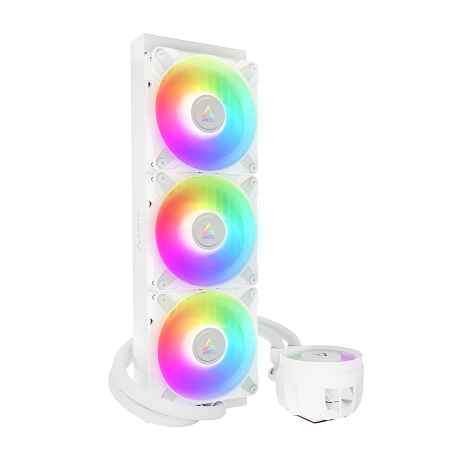

ARCTIC Liquid Freezer III aRGB - 360mm - WHITE (WATER)
| Manufacturer | ARCTIC |
| Model | ARCTIC Liquid Freezer III aRGB - 360mm |
| Socket Support | Intel & AMD |
| Max Cooling | N/A |
| Heatpipes | 360mm Radiator |
| Fan Size | 3 x 120mm |
| Fan Speed | 800-2800RPM PWM |
| Noise Level | N/A |
General Specifications
TIM - MX-6 (0.8 g)
Operating Ambient Temperature - 0—40 °C
PI | NNPI - 338 | 309
LED Connector - 3-Pin A-RGB Connector
All-In-One Connector - 4-Pin PWM Connector
Splitt Connector - 3x 4-Pin PWM Connector
Weight - 1870 g
Compatibillity
Intel - 1851, 1700
AMD - AM5, AM4
Pump Specifications
Pump - 800—2800 rpm (PWM controlled)
Current | Voltage - 0.35 A | 12 V DC
Cold Plate - Copper, Micro Skived Fins
Tube Length - 450 mm
Tube Diameter - Outer: 12.4 mm Inner: 6.0 mm
Radiator Specifications
Material - Aluminium
Dimensions - 398 (L) x 120 (W) x 38 (H) mm
VRM Modul Specifications
VRM Fan - 400—2500 rpm (PWM controlled)
Current | Voltage - 0.05 A | 12 V DC
LEDs - 12x A-RGB LEDs
Current | Voltage - 0.40 A | 5 V DC
Fan Specifications
General - 3x P12 PWM PST A-RGB
Speed - 200—2000 rpm
Air Flow - 48.82 cfm | 82.91 m3/h
Static Pressure - 1.85 mmH2O
Bearing - Fluid Dynamic Bearing
Current | Voltage - 0.11 A | 12 V DC
Cable Lenght - 40 mm
Connector - 4-Pin PWM Connector
RGB Specifications
LEDs - 12x A-RGB LEDs
Current | Voltage - 0.40 V | 5 V DC
Cable Lenght - 40 mm + 80 mm Splitter Cable
Connector - 3-Pin A-RGB Connector + 3-Pin Plug
Packaging
- Width: 167 mm
- Height: 142 mm
- Length: 414 mm
- Weight: 2.43 kg
Manufacturer Info
Manufacturer: ARCTIC (HK) Ltd., Unit 1301-05, The Octagon, 6 Sha Tsui Road, Tsuen Wan NT, Hong Kong, hk@arctic.de
EU Representative: ARCTIC GmbH, Bevenroder Str. 149, 38108 Braunschweig, Germany, info@arctic.de, +49 531 60945294
EAN: 4895213704564
UPC: 840033402330
